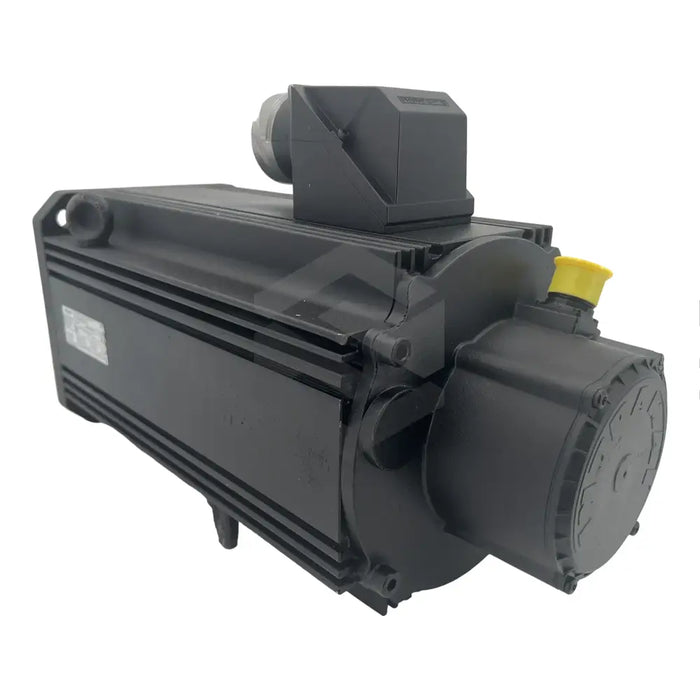

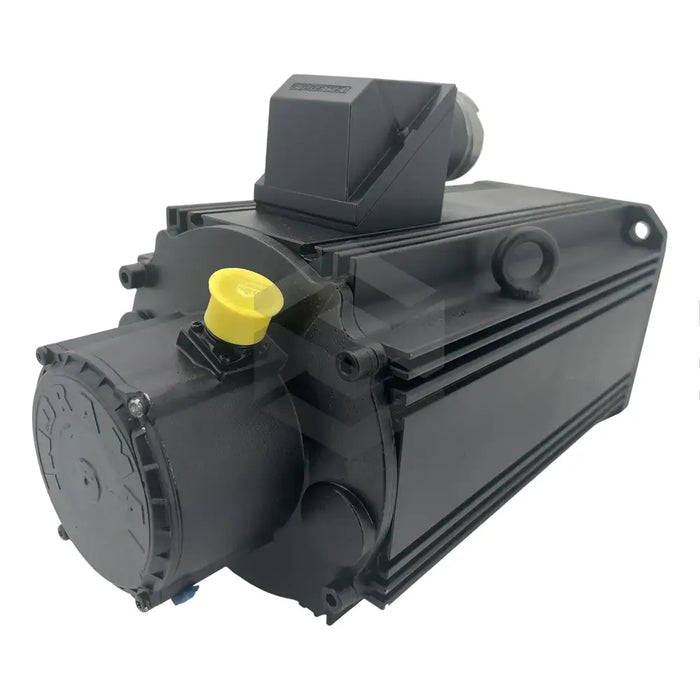

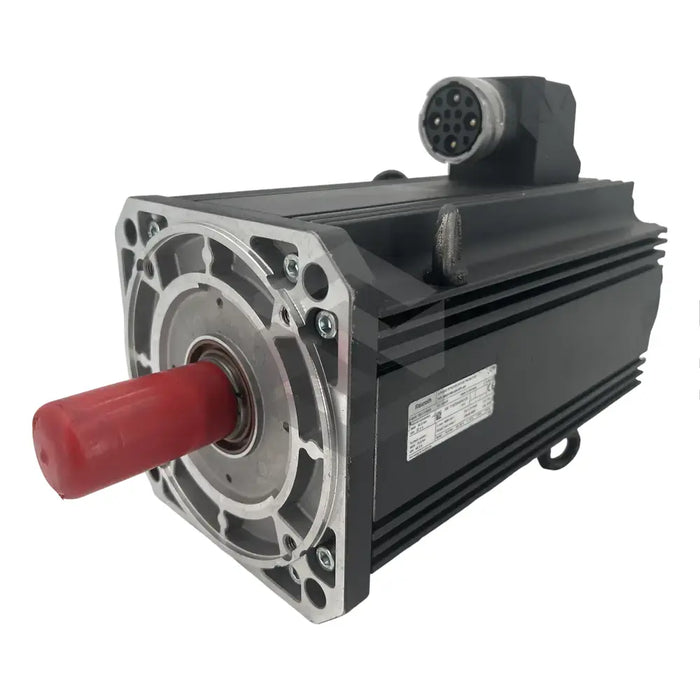

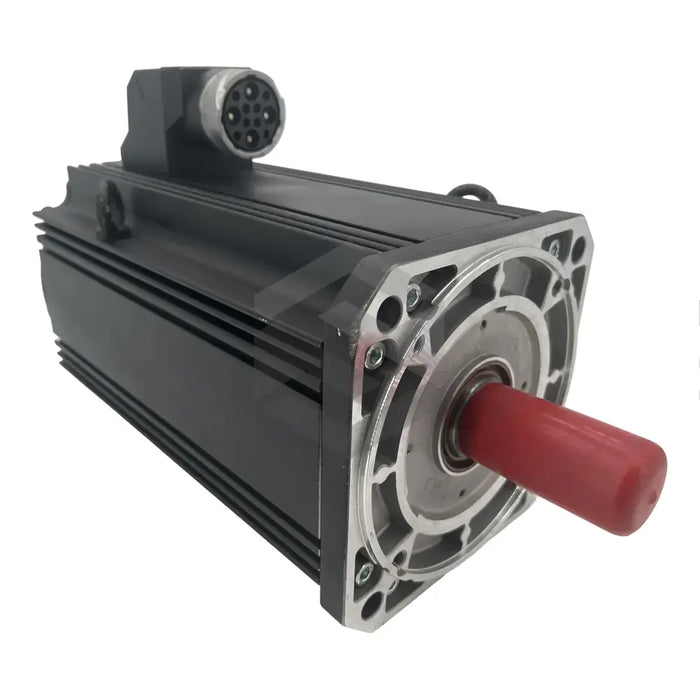

MKD115B-024-KP1-AA
The MKD115B-024-KP1-AA, a synchronous motor by Bosch Rexroth, stands out for its high overload capacity due to its effective heat dissipation from the stator windings to the external motor housing. This motor is ideal for various applications like main spindle drive and servo drive within the digital intelligent drive system, along with optimal usage in machine tools, handling systems, robots, and food machinery. The model's winding code is 024, and it generates peak torque at standstill, while the output shaft adheres to DIN 6885-1 (complete with radial shaft sealing rings). The in-built resolver feedback employs a multi-turn absolute encoder to control motor speed and precision, which sits at ±8 angular minutes—a feature accentuated by a rapid and effortless start-up due to the onboard encoder data memory. Equipped with a 22Nm holding brake and A-side top power connector, the MKD115B-024-KP1-AA boasts an internally installed temperature sensor offering overload protection. This motor can efficiently operate within a 0 to +40 degree Celsius temperature range at heights up to 1000 meters, courtesy of the black-coated, environmentally-resistant housing. The model supports IM B5, IM V1, and IM V3 installation positions, barring the presence of fluid at the output shaft in IM V3 orientation.
