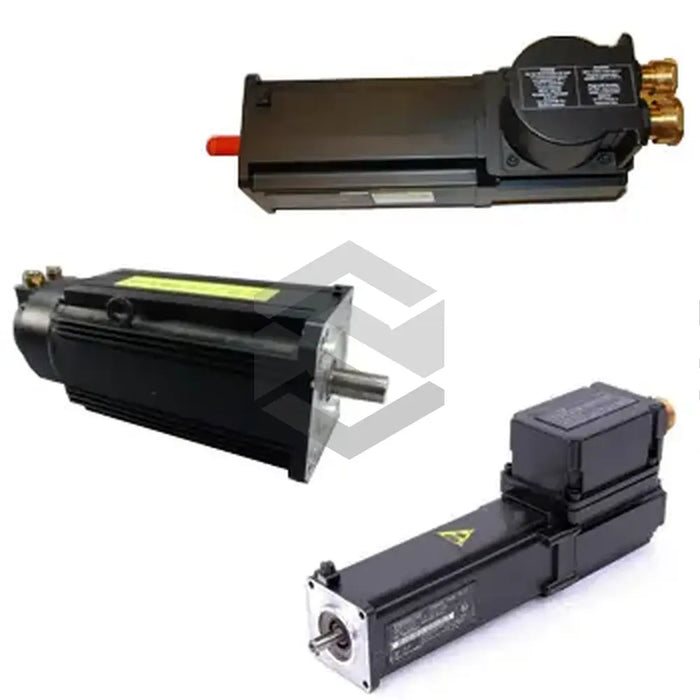

manufacturer image of MKE037B-144-AP0-BENN

MKE037B-144-AP0-BENN

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat MKE037B-144-AP0-BENN is a high-dynamic servo motor from the MKE series. It presents superior features like operational reliability, maintenance-free operation, high performance, and overload capability. Its design excludes a holding brake, but highlights a brushless system. Complete with a motor frame size of 37, motor length of B, and a winding code of 144, which indicates its output, it equips an optical encoder with 128 increments for efficient speed/position control. With a weight of approximately 2.5 kg, it fits perfectly in an ATEX standard housing and features a B-side electrical connection. The servo motor operates within a temperature range of 0 - 40 °C, a torque constant of 0.30 Nm/A, and voltage constant of 18.2 V/min-1 at 20 degrees Celsius. It holds an Ingress Protection rating of 65, and its insulation category is 155 as per DIN EN 60034-1.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MKE Series
  • Model: MKE037B-144-AP0-BENN
  • Winding Code: 144
  • Motor Frame Size: 37
  • Motor Length: B
  • Design: Without holding brake
  • Motor Design: Brushless
  • Weight: 2.5 kg
  • Mounting: ATEX standard housing
  • Commutation Mechanism: Electronic
  • Encoder Type: Optical encoder (single-turn Hiperface)
  • Encoder Increments: 128
  • Maximum Encoder Speed: 12000 rpm
  • Supply Voltage: 7 to 12 volts
  • Max. Current Consumption: 60 milliamperes
  • System Accuracy: 120 angular seconds
  • Sound Pressure Level: 64.3 dB(A) ±3
  • Thermal Time Constant: 15 minutes
  • Maximum Velocity: 9000 rpm
  • Winding Inductivity: 2700 mH
  • Max. Torque: 4 Nm
  • Max. Current: 15 A
  • Torque Constant at 20 oC: 0.30 Nm/A
  • Voltage Constant: 18.2 V/min-1
  • Operating Temperature Range: 0 degrees C to 40 degrees C
  • Ingress Protection Rating: 65
  • Insulation Category: 155 (As per DIN EN 60034-1)
