MKE047B-144-AG1-BENN
The MKE047B-144-AG1-BENN by Bosch Rexroth Indramat is a high-performance addition to the MKE Synchronous Motors series, engineered for demanding industrial environments. This Servo Motor for potentially explosive areas features a compact Motor Size: 47 design with a Winding: 144 configuration and Number of Pole Pairs: 4 for exceptional torque density. With a robust Insulation Class: 155 (F) and integrated Holding Brake functionality, the MKE047B-144-AG1-BENN delivers reliable operation under challenging conditions. Certified to Housing Standard Compliance: ATEX requirements, this motor ensures safe use in hazardous locations while maintaining high operational stability.

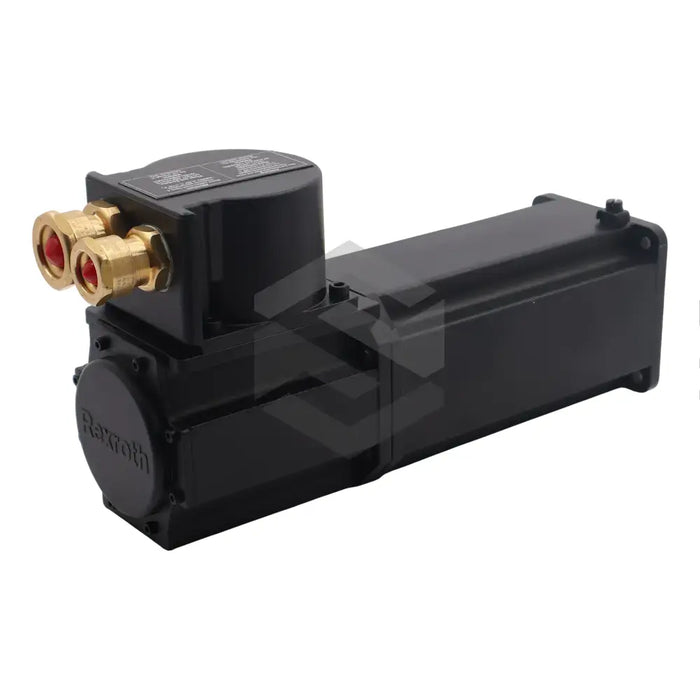

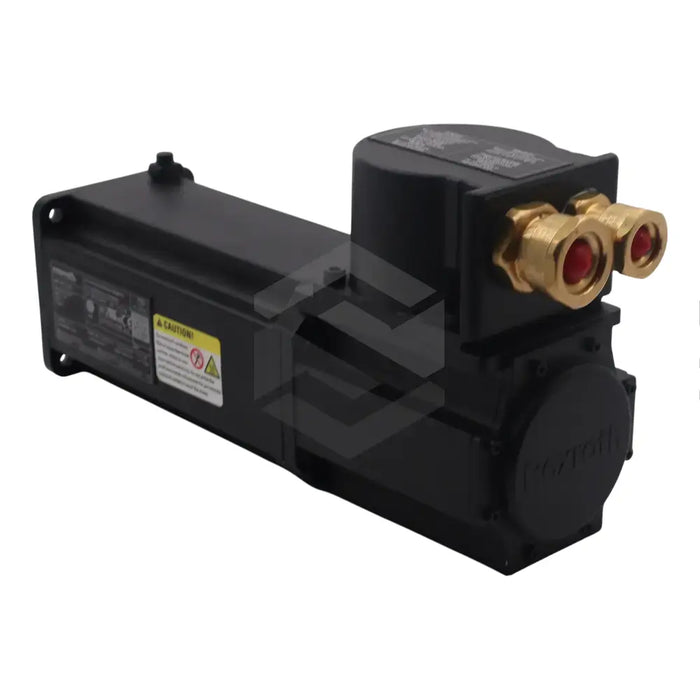

The motor’s electrical and control interfaces are designed for maximum flexibility. It adopts a Connection Type: Terminal box and optimizes cable routing through a Connection Direction: B-side orientation. Position feedback is provided by an advanced Encoder Type: Optical encoder, Singleturn Hiperface with Encoder Increments: 128 and a precision Encoder Model: S1 system. The integrated Holding Brake Torque: 2.2 Nm secures the load in standstill conditions, while electronic commutation ensures smooth current flow and precise speed control across the full speed range.

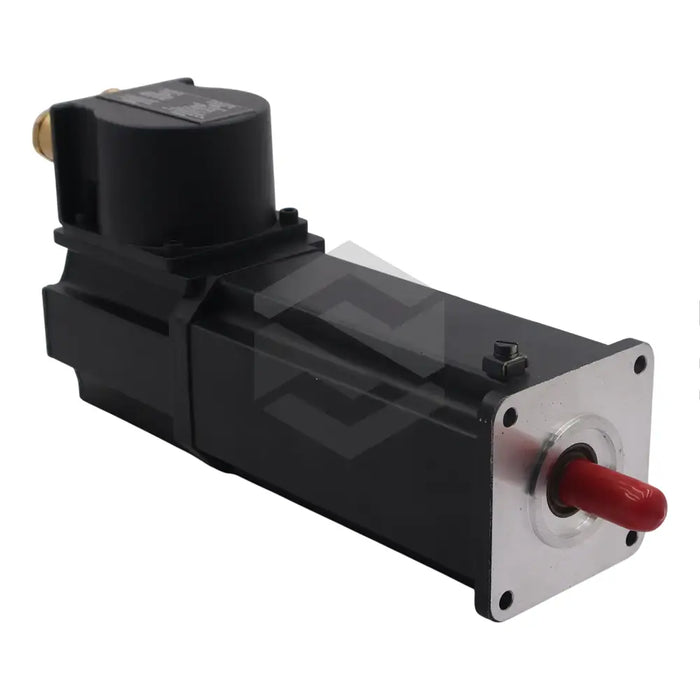

Operational features are built around maintainability and ease of use. The Shaft Design: Plain shaft includes a Shaft Detail: Frontal centering hole and robust Shaft Seal: Yes to prevent ingress of contaminants, and utilizes a Shaft Thread: DIN 332 compliant 'DS' thread for secure coupling. The motor’s sealing ring and ATEX-certified housing withstand harsh atmospheres, and the high-temperature insulation supports continuous operation at elevated ambient conditions. Rapid acceleration and stable holding torque are ensured by the 4-pole-pair configuration and optimized winding layout.
Integration into complex drive systems is straightforward. As a member of Bosch Rexroth Indramat’s MKE series, the MKE047B-144-AG1-BENN interfaces seamlessly with industry-standard inverters and controllers. The B-side terminal box arrangement simplifies cabinet layouts, while ATEX compliance broadens application scope in petrochemical, mining, and pharmaceutical sectors. Whether deployed in automated assembly, packaging lines, or hazardous-area conveyors, this motor combines safety certifications and precision control to meet rigorous industrial requirements.
