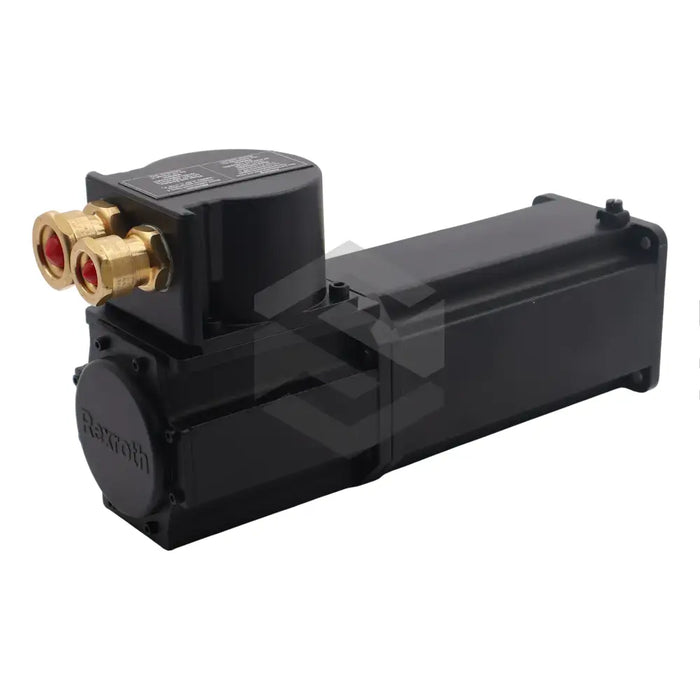

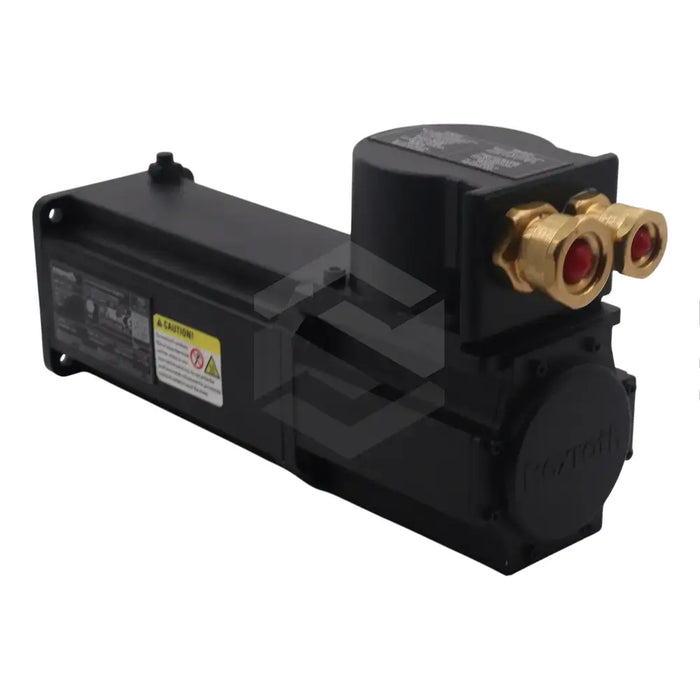

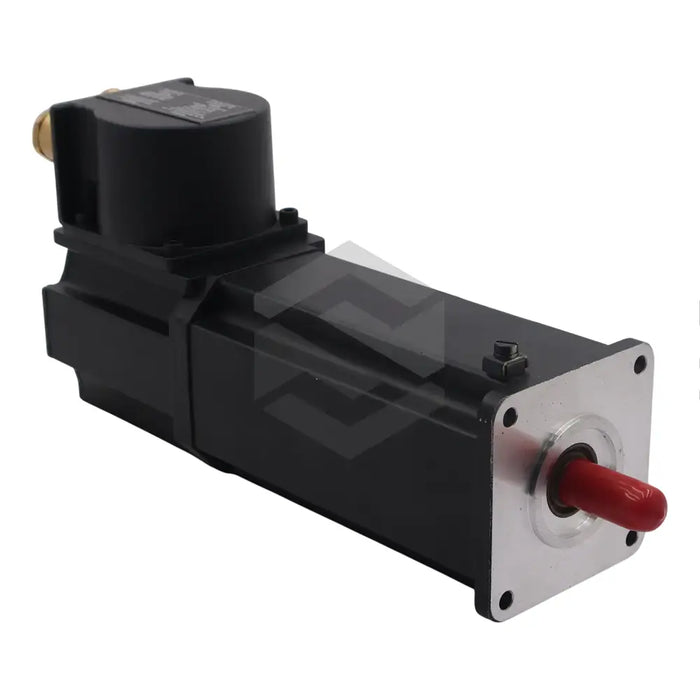

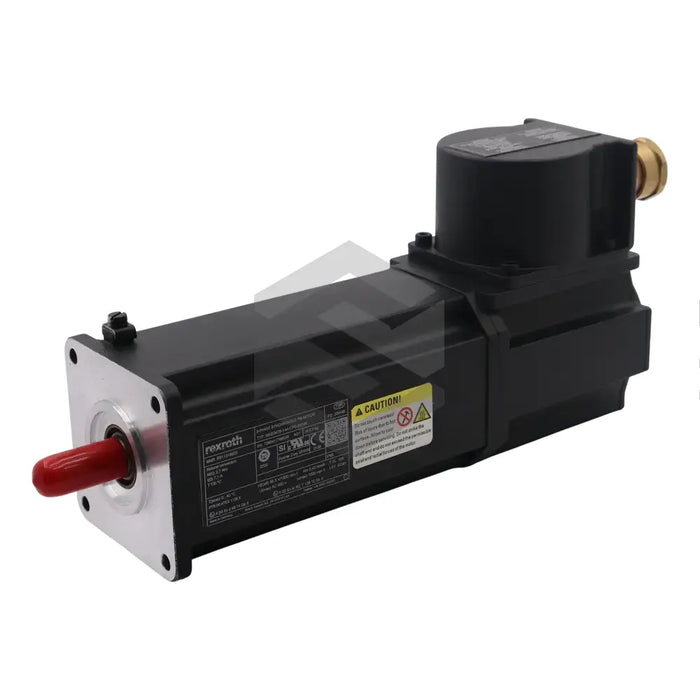

manufacturer image of MKE047B-144-CP0-BENN

MKE047B-144-CP0-BENN

by Bosch Rexroth Indramat
$2,999.70 - $2,999.70
$2,999.70
$2,999.70 - $2,999.70
$2,999.70
Available, Shipping Varies
The Rexroth Indramat MKE047B-144-CP0-BENN Synchronous Motor is a powerful and efficient brushless motor, designed primarily for industrial applications within potentially hazardous environments. Delivering up to 90% efficiency, this motor powers diverse machinery such as food processors and packaging machines and ensures robust performance, with 11.3 Nm torque and 22.6 Amp current draw. The motor's winding resistance stands at approximately 5 ohms at 20 degrees Celsius, and it has a torque constant of about 0.59 Nm per ampere. The motor's thermal time constant is approximately 30 minutes and produces a maximum sound pressure of 66 decibels under normal operation. Though devoid of a holding brake, the motor leverages an Hiperface optical encoder aiding drive controller in effective monitoring and control. Correct use and grounding, as per the instruction manual, are vital to ensure safety, minimize leakage current and negate electrical interference.
30 Day Warranty
Technical Specifications
  • Manufacturer: Rexroth Indramat
  • Product Type: Synchronous Motor
  • Model: MKE047B-144-CP0-BENN
  • Efficiency: 90 percent
  • Application: Industrial Machines
  • Explosive Area Tolerance: Yes
  • Torque: 11.3 Newton meters
  • Current: 22.6 Amperes
  • Winding Resistance@ 20 degrees Celsius: 5 Ohms
  • Torque Constant: 0.59 Newton-meters per Ampere
  • Thermal Time Constant: 30 minutes
  • Leakage Current: Yes
  • Sound Pressure: 66 decibels
  • Holding Brake: No
  • Encoder Type: Hiperface Optical Encoder
