manufacturer image of MKE047B-144-CP0-BUNN

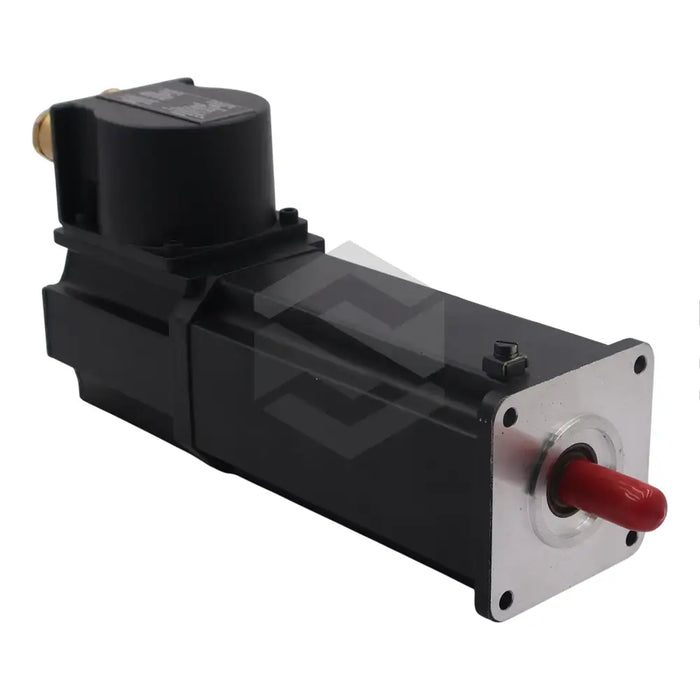

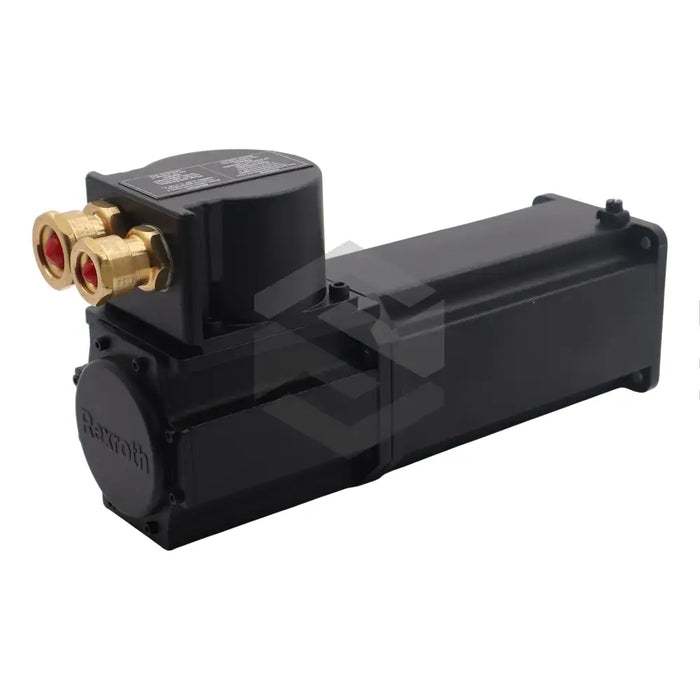

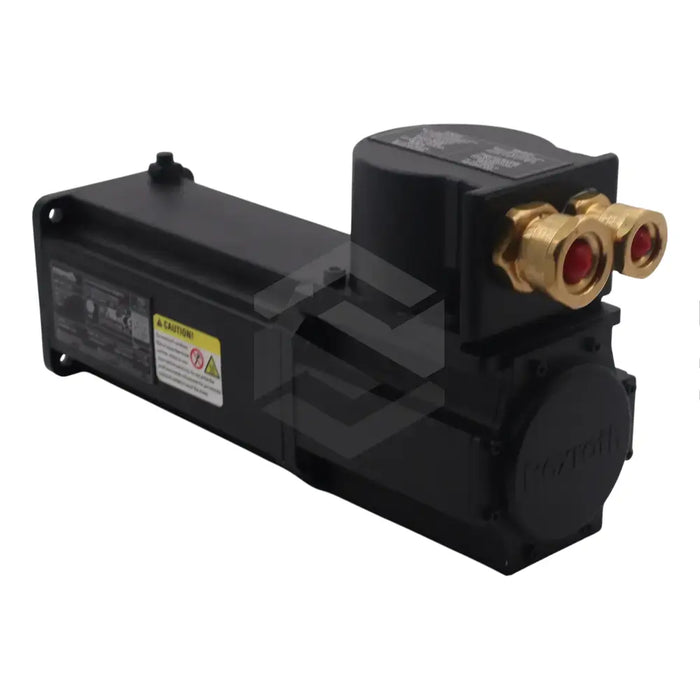

MKE047B-144-CP0-BUNN

by Bosch Rexroth Indramat
$4,550.00 - $4,550.00
$4,550.00
$4,550.00 - $4,550.00
$4,550.00
In Stock, Ships 3 - 5 Days
The Bosch Rexroth MKE047B-144-CP0-BUNN is a MKE series synchronous motor tailored for hazardous environments, designed in accordance with UL/CSA and ATEX standards for global application. It delivers a continuous standstill torque of 2.7 Nm and a current of 5 Amps under a 60K overtemperature condition. The motor achieves a maximum torque of 11.3 Nm and a current of 22.6 Amps. Featuring an IP 65-rated housing, it is protected from dust and moisture, with operational temperatures ranging from 0 to 40 degrees Celsius. Key specifications include a size 047, length B, winding code 144, and a shaft with a key per DIN 6885-1. Additional features include an optical multiturn encoder with 128 increments, a sealing ring, and a terminal box for electrical connections on side-B. The motor, weighing approximately 5.5 kg and spinning up to 7000 RPM, lacks a holding brake but offers one as an optional feature.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Series: MKE
  • Model: MKE047B-144-CP0-BUNN
  • Motor Type: Synchronous Motor
  • Standards: UL/CSA and ATEX
  • Rated Continuous Torque at Standstill: 2.7 Nm
  • Continuous Current at Standstill: 5 Amps
  • Maximum Rated Current: 22.6 Amps
  • Maximum Rated Torque: 11.3 Nm
  • Protection Class: IP65 (IEC 60529)
  • Ambient Temperature Range: 0 to 40 degrees Celsius
  • Motor Size: 047
  • Motor Length: B
  • Winding Code: 144
  • Encoder Type: Optical Multiturn Encoder
  • Encoder Increments: 128
  • Shaft Type: Shaft with Key (DIN 6885-1)
  • Sealing Ring: Included
  • Holding Brake: Not Available
  • Electrical Connection: Terminal Box on Side-B
  • Approximate Weight: 5.5 kg
  • Pole Pairs: 3
  • Maximum Motor Speed: 7000 RPM
