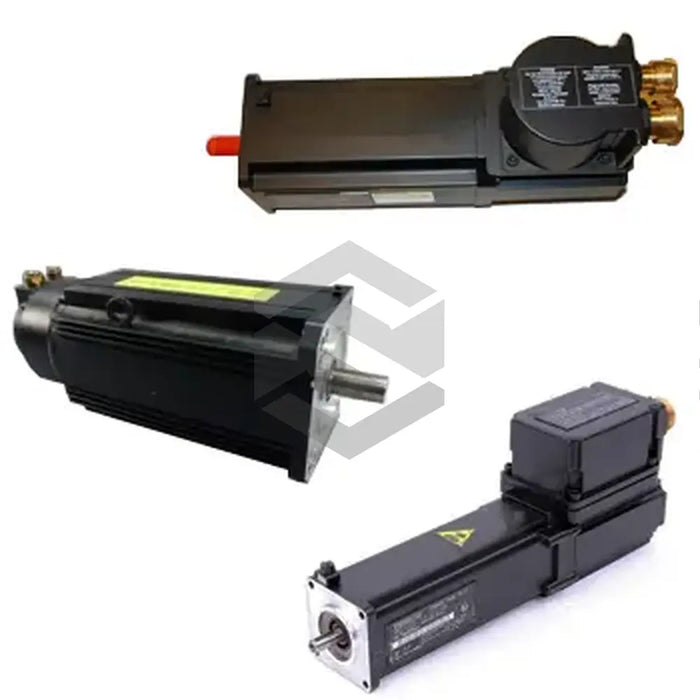

manufacturer image of MKE096B-047-KP0-KN

MKE096B-047-KP0-KN

by Bosch Rexroth Indramat
$8,426.40 - $8,426.40
$8,426.40
$8,426.40 - $8,426.40
$8,426.40
Available, Shipping Varies
The MKE096B-047-KP0-KN is a permanent magnet motor, belonging to Bosch Rexroth Indramat's second-generation MKE series, designed for use in potentially explosive areas. It complies with international standards such as ATEX, CSA, and UL. With its high torque (more than 43 Nm) and low-rotor inertia (0.00430 kgm2), this motor boasts a rapid acceleration capability with a maximal speed of 4,500 RPMs. It generates a current of 13.2 Amps and its powerful 8.4-ohm resistance winding can handle up to 155 degree Celsius of ambient temperature. The four-pole pair motor offers IP65 protection against dust and water intrusion. This 18 kg servomotor has a 96mm frame size, winding code 047, and a keyway shaft following DIN 6885, Sheet 1. The MKE096B-047-KP0-KN is specifically crafted for hazardous situations, showcasing Bosch Rexroth Indramat's commitment to safety and performance.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • MKE Series Type: Permanent Magnet Motor
  • Model: MKE096B-047-KP0-KN
  • Generation: Second
  • Maximum Speed: 4500 RPMs
  • Produced Current: 13.2 Ampere
  • Maximum Torque: 43 Nm
  • Rotor Inertia: 0.00430 kgm2
  • Winding Resistance: 8.4 ohms
  • Tolerable Ambient Temperature: 155 degree Celsius
  • Pole Pairs: 4
  • Housing Protection: IP65
  • Weight: 18 kg
  • Frame Size: 96mm
  • Motor Length Category: B
  • Winding Code: 047
  • Shaft Type: Shaft with Keyway DIN 6885, sheet 1
