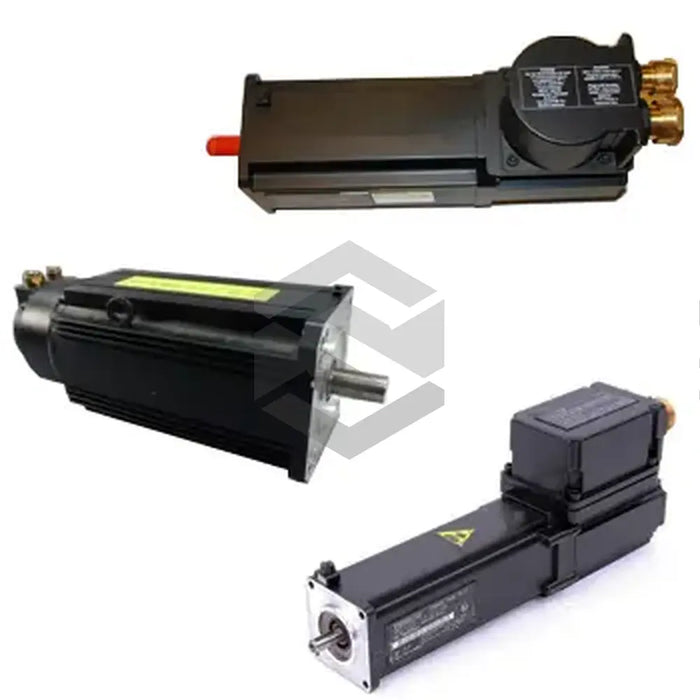

MKE096B-047-NP0-KN
The MKE096B-047-NP0-KN is a high-performance synchronous servo motor engineered by Bosch Rexroth Indramat and featured in the MKE Synchronous Motors line. This Servo Motor for potentially explosive areas is UL/CSA compliant and ATEX certified, ensuring safety in environments with flammable gases, explosive air mixtures, mist, dust, and vapours. With a robust Motor Size 96 frame and Winding code 047, it delivers a maximum torque of 43.5 Nm and attains speeds up to 4500 rpm, making it suitable for dynamic automation tasks. The motor incorporates a precision 096 encoder and an explosion-proof enclosure that meets stringent industry standards. Its compact housing maintains an IP65 protection rating, safeguarding internal components from dust ingress and water jets.
The technical capabilities of the MKE096B-047-NP0-KN are underscored by its low rotor inertia of 0.00430 kgm^2 and a winding resistance of 8.4 Ohms, enabling rapid acceleration and deceleration cycles. Thermal management is optimized for continuous operation at temperatures up to 155 °C, with a built-in shaft seal to prevent contamination and protect internal windings. Weighing 18 kg, the motor balances structural rigidity with manageable mass for ease of installation. Its high-dynamics design ensures precise torque delivery, while the combination of UL/CSA and ATEX certification confirms suitability for classified zones. The rotor’s low inertia further enhances responsiveness, making it ideal for applications demanding fast cycle times.
Operational features of this servo include a Shaft Design: Shaft with keyway compliant to DIN 6885 Keyway standards, ensuring accurate torque transmission and reliable coupling to driven equipment. The motor is delivered Without holding brake, reducing maintenance complexity where braking is managed externally. Electrical connections are facilitated through a Terminal box positioned at the Top connection direction, simplifying cable routing in confined installations. Its compact footprint and explosion-proof housing support installation in hazardous areas while maintaining easy access for routine inspections. The combination of robust sealing, precise encoder feedback, and optimized winding characteristics delivers exceptional reliability in harsh industrial environments.
Integration of the MKE096B-047-NP0-KN into control systems is streamlined thanks to its standard Terminal box connection and industry-standard encoder interface. Certified for use in potentially explosive atmospheres, this motor is well suited for chemical processing, material handling in mining, and pharmaceutical manufacturing. Its compatibility with Bosch Rexroth drives and controllers in the MKE series ensures rapid commissioning and parameterization. The unit’s rugged design and comprehensive certifications make it a versatile choice for engineers seeking a safe, reliable, and high-dynamics servo motor solution.
