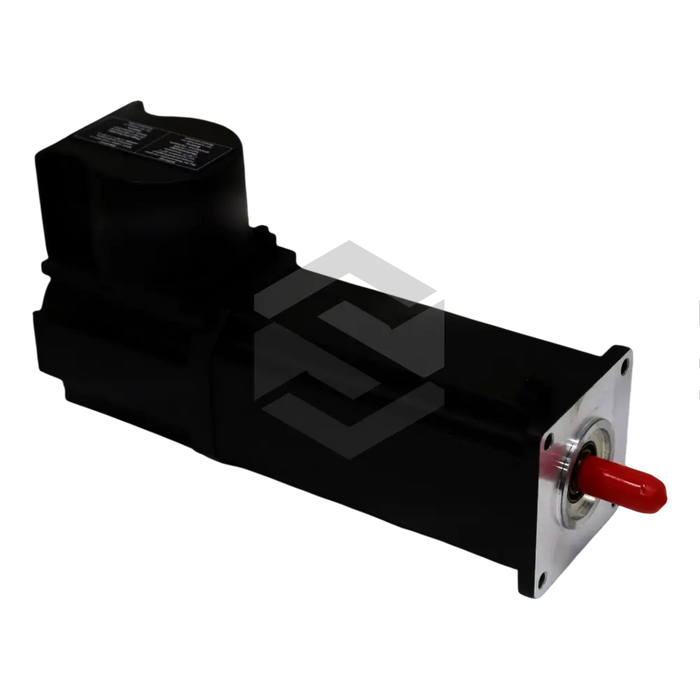

manufacturer image of MKE098B-047-NG1-BUNN

MKE098B-047-NG1-BUNN

by Bosch Rexroth Indramat
Request a quote
The MKE098B-047-NG1-BUNN model is a brushless synchronous servo motor by Bosch Rexroth, designed for robust performance in harsh conditions. Operating at 44.3 Amperes, it delivers a torque output of 43.5 Nm with 4 pole pairs and 1.20mH winding inductivity. The motor offers 12 Nm of torque at standstill conditions, drawing 9.8 A current and allowing a 60 K increase in housing temperature. At 20 Celsius, it uses 91 V/min to give a torque constant of 1.41 Nm with 8.4 Ohm winding resistance. With a weight of 18 kg, the motor has compact dimensions easing installation. It offers maintenance-free operation and is highly resistant to dust and moisture due to an IP 65 protection rating. The motor performs optimally within a temperature range of 0 to 40 Celsius and can handle up to 90% relative humidity.
30 Day Warranty
Technical Specifications
  • Model: MKE098B-047-NG1-BUNN
  • Manufacturer: Bosch Rexroth
  • Motor Type: Servo Motor
  • Current: 44.3 Amperes
  • Output Torque: 43.5 Nm
  • Torque at Standstill: 12 Nm
  • Current at Standstill: 9.8 A
  • Pole Pairs: 4
  • Winding Inductivity: 1.20 mH
  • Speed Constant: 91 V/min
  • Torque Constant: 1.41 Nm
  • Winding Resistance: 8.4 Ohm
  • Operating Temperature Range: 0 to +40 degree Celsius
  • Relative Humidity: 90% Maximum
  • Insulation Class: Class 155
  • Protection Degree: IP 65
  • Weight: 18 kg
