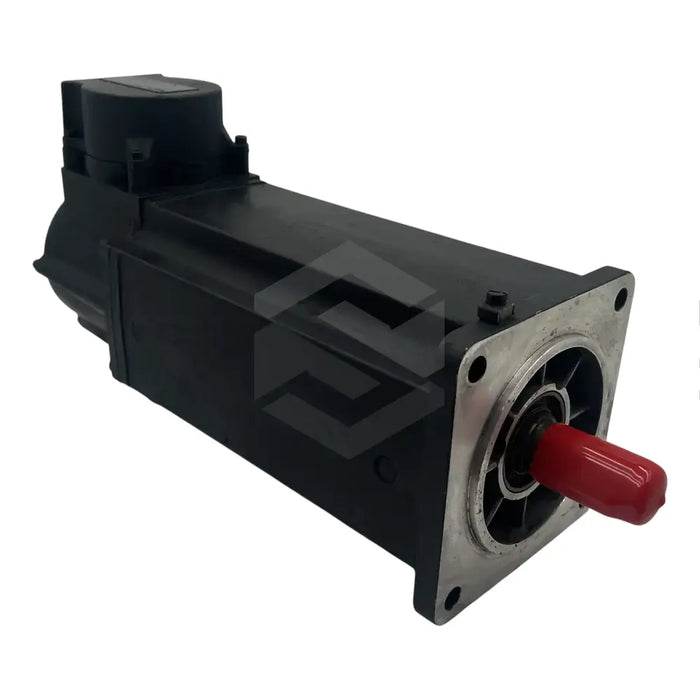

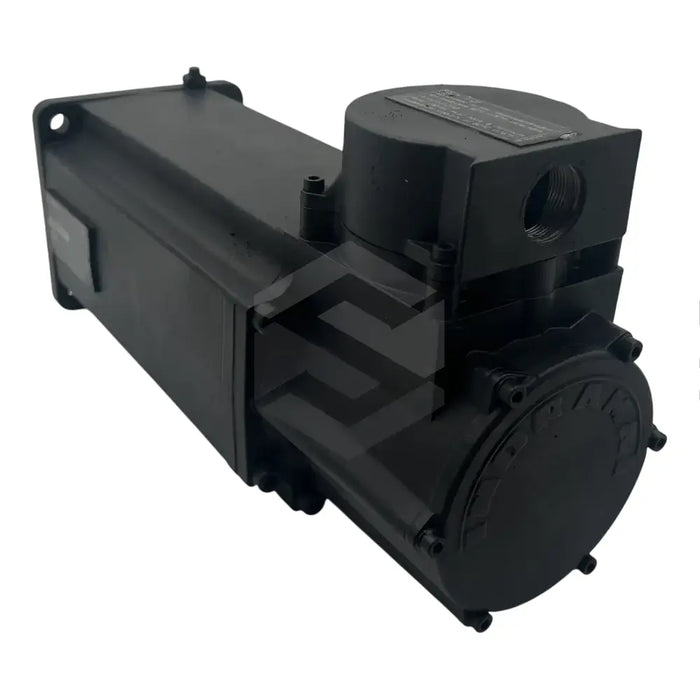

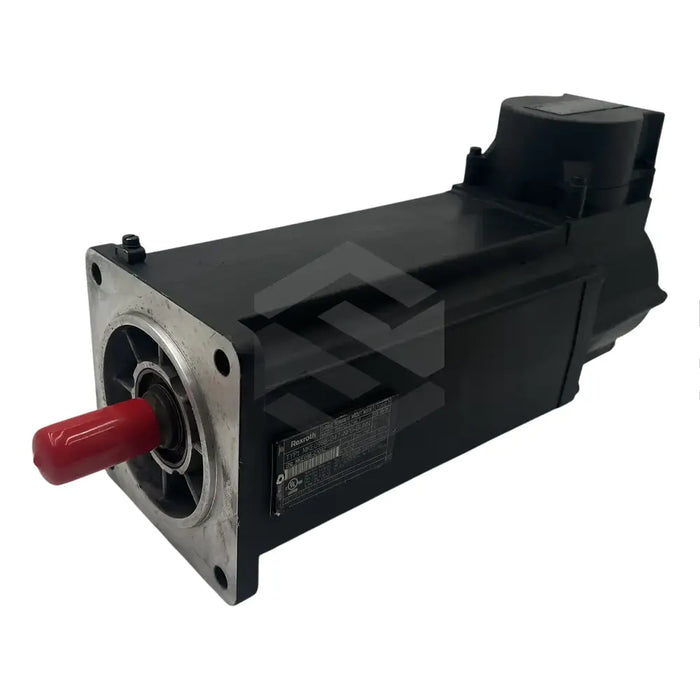

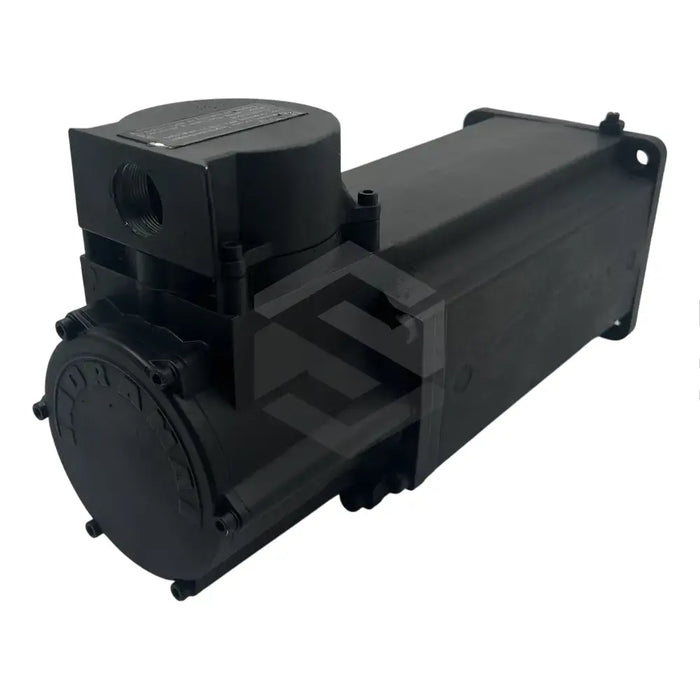

MKE098B-047-NP0-BUNN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MKE098B-047-NP0-BUNN is a cutting-edge brushless servo motor from industry-leading manufacturer, Bosch Rexroth Indramat, renowned for high-quality, economical motion control devices. This model boasts an energy consumption of up to 44.3A, and delivers powerful output through a sealed shaft lock, providing 43.5 Nm torque. At approximately 18 kg and with the absence of a holding brake, this servo motor effortlessly operates from 0 to +40 degrees Celsius. Designed with high safety standards in mind, it features full enclosure to protect against liquids or dust, class 155 insulation, housing according to UL standards, and IP 65 protection. The motor runs at a maximum speed of 4,500 rpm and a noise level of 61.8 dB, presenting 12 Nm torque with a 9.8 Ampere current at a standstill. Including a side B terminal box for quick electrical connections, the MKE098B-047-NP0-BUNN motor is perfect for use in mounting systems, conveyors, robotics and high-risk zones.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

MKE098B-047-NP0-BUNN

Current Consumption

44.3A

Torque Output

43.5 Nm

Shaft Type

Keyway, sealed by a ring

Holding Brake

No

Poles Pairs

4

Weight

18 kg

Operating Temperature

0 to +40 degree Celsius

Housing

Enclosed, according to UL standards

Insulation

Class 155

Maximum Velocity

4,500 rpm

Moment of Inertia

0.0043 kgm2

Discharge Capacity

6.7 nF

Servo Motor Sound Pressure Level

61.8 dB

Torque at Standstill

12 Nm

Current Consumption at Standstill

9.8 Amperes

Connection

Side B terminal box

Protection Level

IP 65

Applications

Mounting systems, conveying machines, robotics, and explosive areas.
