S image of MKE098B-058-AG1-BENN

MKE098B-058-AG1-BENN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

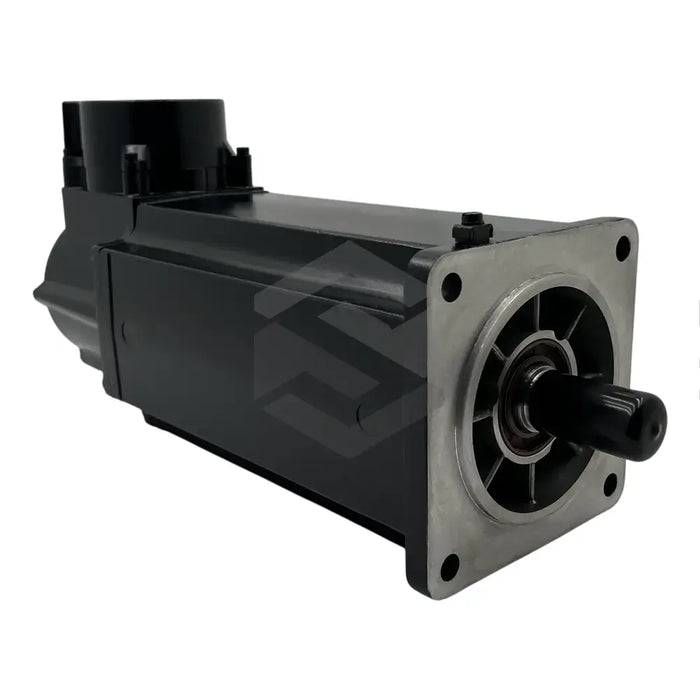

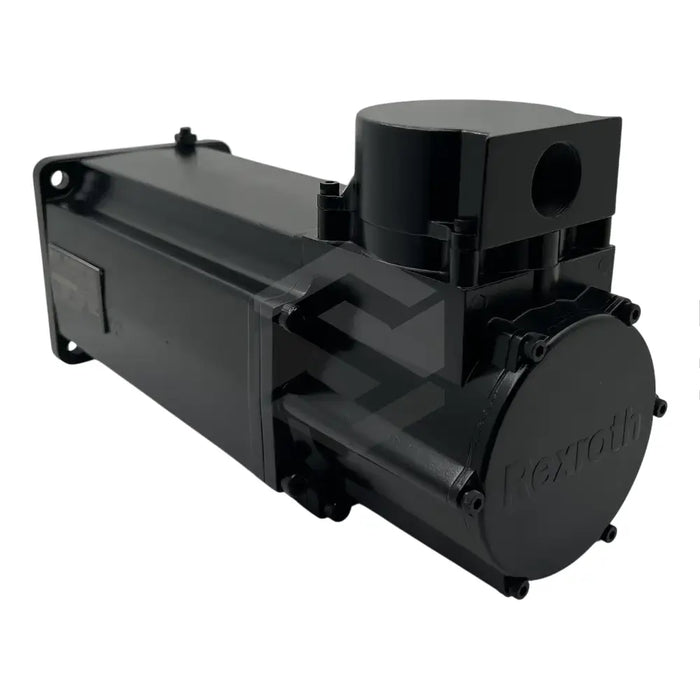

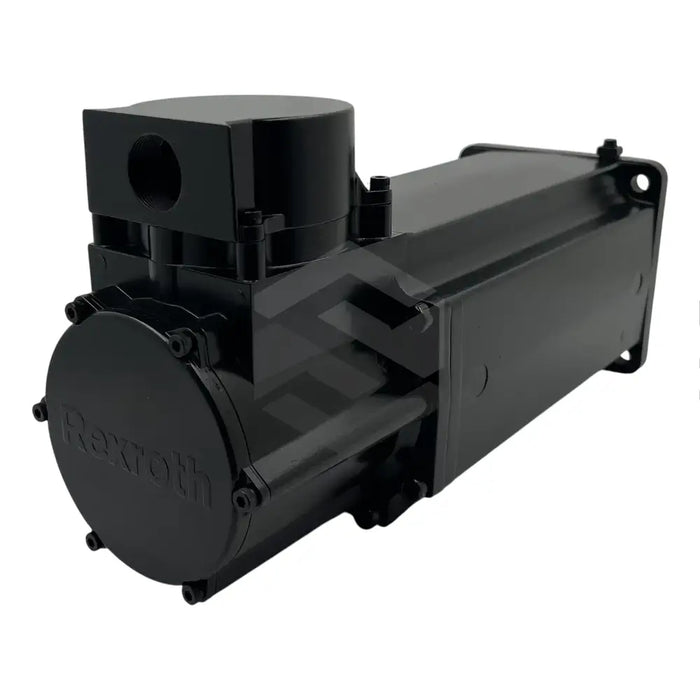

The MKE098B-058-AG1-BENN, a product of Bosch Rexroth Indramat, is an MKE motor suitable for main and servo drive applications in machinery such as machine tools and food processing units. For efficient control of the MKE098B-058-AG1-BENN, additional actuators and sensors are needed. Weighing approximately 18kg, this 098-sized, B-length motor has a maximum speed of 5000 rpm with a maximum current rating of 55.9 A. The high-dynamics motor has a moment of inertia of 0.00430 kgm2 and houses a B-sided electrical connection port. The motor employs an optical encoder with 128 increments, adheres to the DIN EN 60034 – 1 insulation class 155, and operates optimally between 0 and 40 degrees Celsius. Its distinctive housing design follows ATEX standards with a holding torque of 11 Nm and a holding brake with a 13 ms connection time.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

MKE Model

MKE098B-058-AG1-BENN

Motor Size

098

Motor Length

B-length

Winding Code

058

Weight

18 kg

Maximum Speed

5000 rpm

Maximum Current Rating

55.9 A

Winding Inductivity

0.740 mH

Pole Pairs

3

Moment of Inertia (Rotor)

0.00430 kgm2

Electrical Connection Port

B-sided

Shaft Design

Plain with Sealing Ring

Torque Constant

1.09 Nm/A

Winding Resistance

5.80 Ohm

Voltage Constant

70 V/min-1 at 20 degrees Celsius

Magnetic Pole Pairs

3

Housing Design

ATEX standards compliant

Encoder Design

Optical encoder - Singleturn Hiperface with 128 increments

Operational Temperature Range

0 to 40 degrees Celsius

Insulation Class

DIN EN 60034 – 1 insulation class 155

Holding Torque

11 Nm

Rated Voltage

24 Volts

Rated Current

0.71 Amperes

Holding Brake Connection Time

13 ms

Holding Brake Disconnection Time

30 ms

Moment of Inertia (Holding Brake)

0.000360 kgm2.
