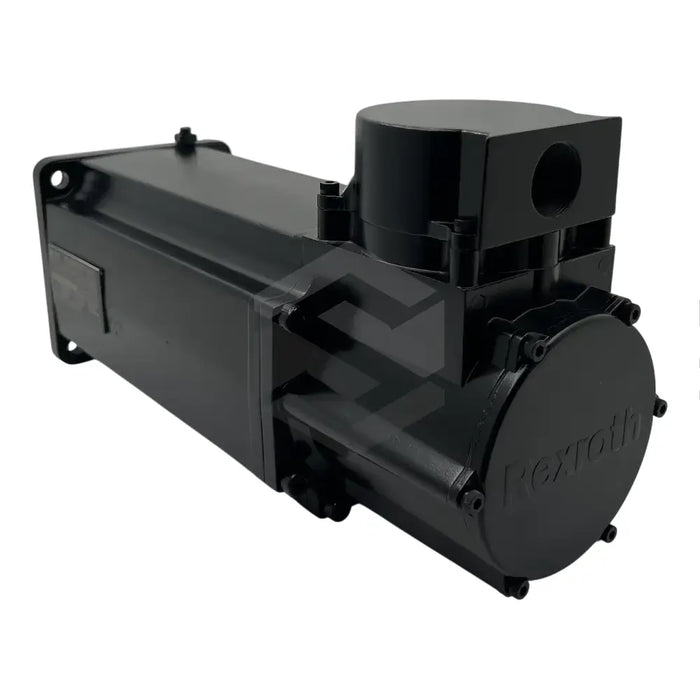

manufacturer image of MKE098B-058-CP0-BENN

MKE098B-058-CP0-BENN

by Bosch Rexroth Indramat
$6,650.00 - $6,650.00
$6,650.00
$6,650.00 - $6,650.00
$6,650.00
Available, Shipping Varies
Bosch Rexroth Indramat's motor MKE098B-058-CP0-BENN is a servo motor from the Rexroth MKE series. Its IP65 housing adheres to the ATEX standard, making it suitable for hazardous environments such as those found in industries like packaging, food processing, printing, paper processing, and metal forming. The motor follows EN 60079-0, EN 60079-1, and EN 60079-31 specifications offering dependability, high performance, overload capacity, and flexible installation. An optical encoder provides 128-increment feedback with data memory storing the motor's details and parameters aiding quick start-up and system compatibility. The main shaft features a key and a sealing ring. The motor delivers peak and continuous torques of 43.5 Nm and 12 Nm with equivalent current ratings of 55.9 Amps and 12.4 Amps. The motor, weighing 18 kg, has a discharge capacity of 6.7 nanofarads and can operate up to 5000 RPM at temperatures of 0-40°C while producing 61.8 dB sound.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: Rexroth MKE
  • Model: MKE098B-058-CP0-BENN
  • Motor Type: Servo Motor
  • Housing: IP65
  • Standard: ATEX
  • Design Standards: EN 60079-0, EN 60079-1, EN 60079-31
  • Encoder: Optical, Multiturn with 128 increments
  • Data Memory: Yes
  • Main Shaft: Includes a Key and a Sealing Ring
  • Brake: To be separately ordered if required
  • External Connections: Through terminal box on side B
  • Peak Torque: 43.5 Nm
  • Continuous Torque: 12 Nm
  • Peak Current: 55.9 Amps
  • Continuous Current: 12.4 Amps
  • Discharge Capacity: 6.7 nanofarads
  • Pole pairs: 4
  • Moment of Inertia: 0.00430 kgm2
  • Weight: 18 kilograms
  • Max Velocity: 5000 RPM
  • Sound Pressure (Operating): 61.8 dB
  • Temperature Range: 0 to 40 Celsius
