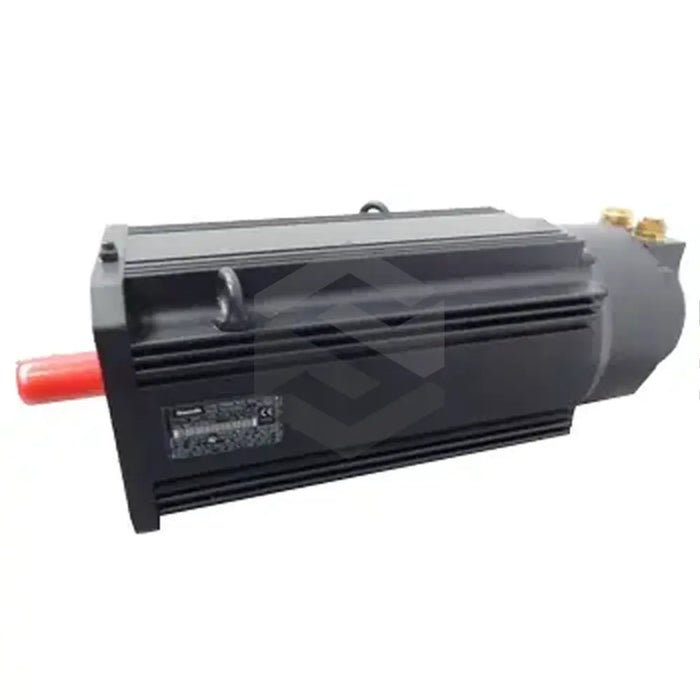

P image of MKE118B-024-BP0-KE4

MKE118B-024-BP0-KE4

by Bosch Rexroth Indramat
$32,574.30 - $35,831.73
$32,574.30
$32,574.30 - $35,831.73
$32,574.30
The MKE118B-024-BP0-KE4 is a synchronous motor designed by Bosch Rexroth Indramat for hazardous environments. This motor has a standard frame size of 118 and a frame length of 'B', along with a winding code of 024, a new advancement within its family. It includes an ATEX 92 rated optical encoder which delivers 2048 increments per second with a maximum speed of 15,000 RPM. This motor, part of the MKE series, is built with a shaft that features a keyway as per DIN6885. The electrical connections are housed in a terminal box on top of the motor which itself is constructed in accordance with ATEX standards. The MKE118B-024-BP0-KE4 combines high efficiency and robustness, delivering a continuous torque of 28 Nm (standstill) and a peak of 102 Nm, with a continuous current of 15.3 amperes reaching up to 69.1 amperes.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Family

MKE Series

Product Model

MKE118B-024-BP0-KE4

Frame Size

118

Frame Length

B

Winding Code

024

Encoder Type

Optical, Singleturn EndDat2.1

Encoder Increments

2,048 per second

Encoder Resolution

13-bit

Maximum Speed

15,000 RPMs

Shaft Type

Shaft with Keyway per DIN6885

Holding Brakes

Not available

Electrical Connection

Terminal Box (Top)

Housing Design

Conforms ATEX Standard

Cable Entry

13 mm - 16 mm

Continuous Torque at Standstill

28 Nm

Maximum Torque

102 Nm

Continuous Current at Standstill

15.3 amperes

Maximum Current

69.1 amperes

Winding Resistance

7.60 ohm

Weight

45 kilograms

IP Protection

IP65

Insulation Class

155

Maximum Speed of Motor

4000 RPM.
