MKE118B-024-PP0-KUN

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message

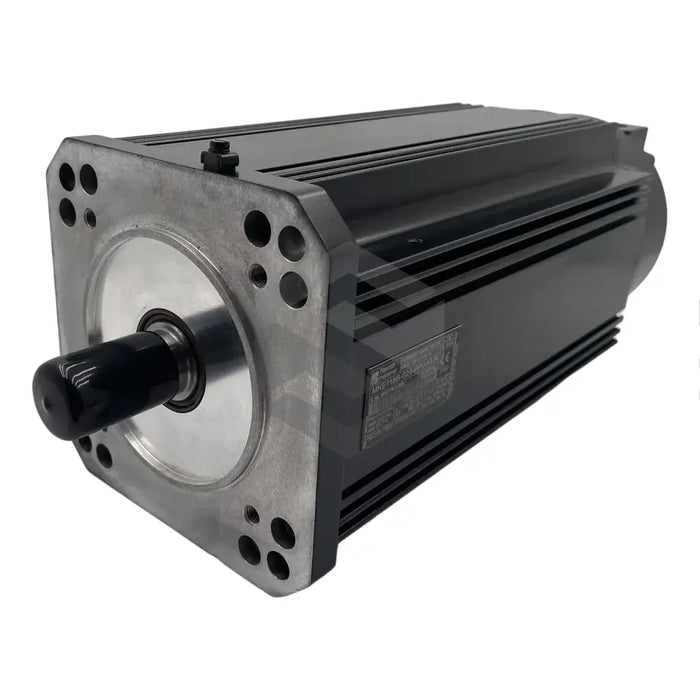

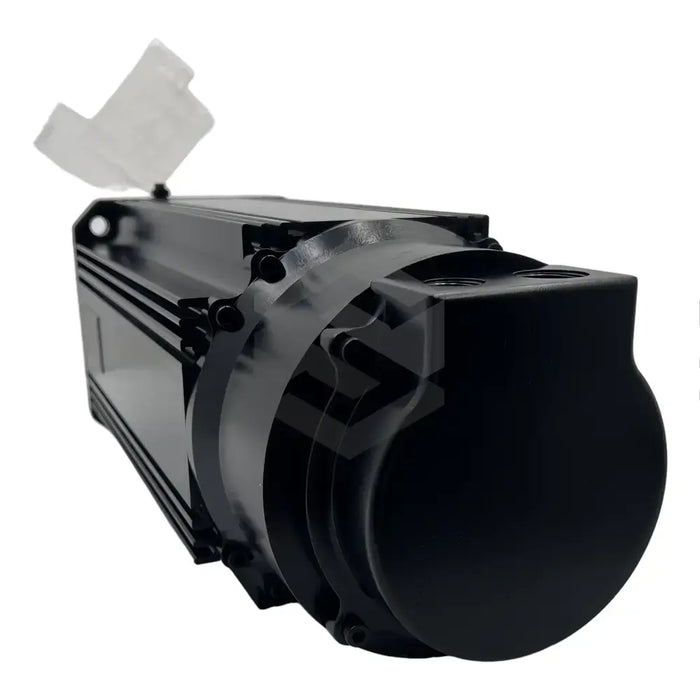

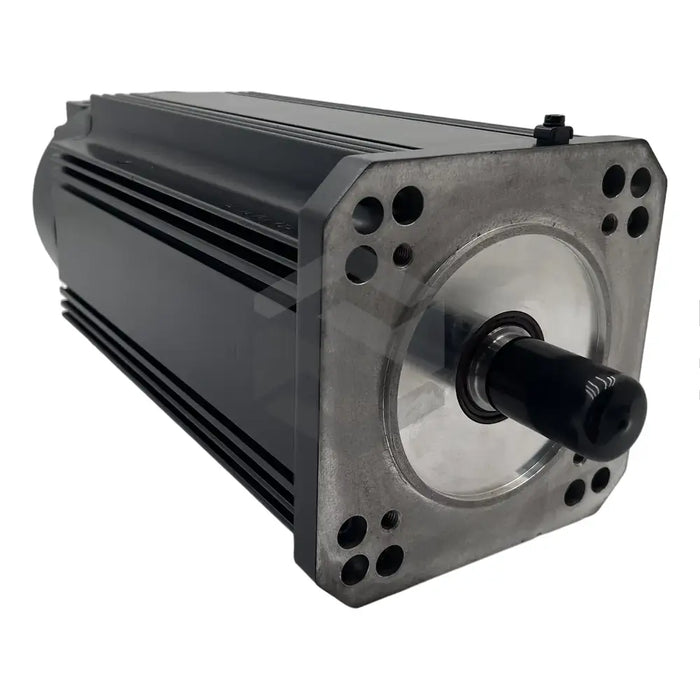

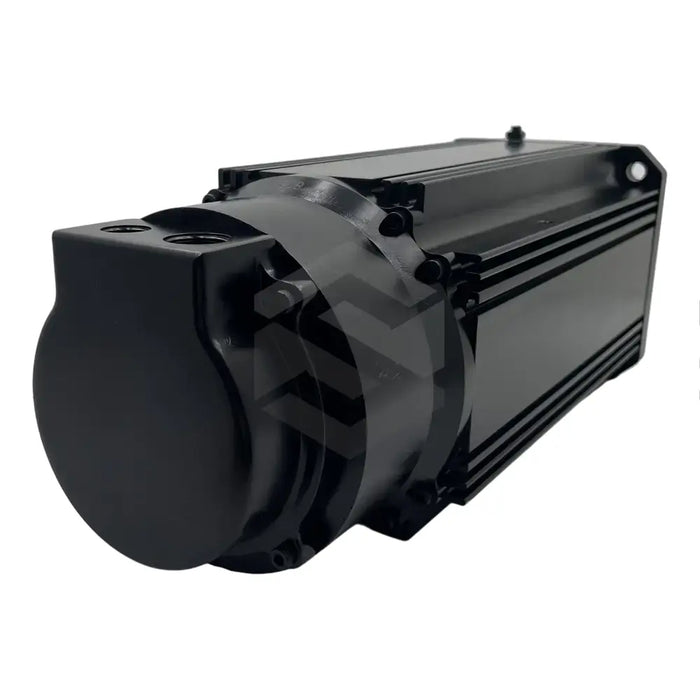

The Bosch MKE118B-024-PP0-KUN is a high-performance synchronous motor, specifically designed to function in potentially explosive areas. With housings conforming to the UL standard, this motor possesses a winding code of 024 and a frame size of 118. It delivers continuous torque of 28 Nm at standstill in a 60K environment. Its maximum torque and current are 102 Nm and 69.1 Amps respectively. In addition, it demonstrates a discharge capacity of 10.3 nanofarads with a winding resistance of 7.6 ohms and inductance of 0.58 millihenry. It can reach a maximum velocity of 4000 RPM. Its superior IP65 protection allows for efficient utilization close to operation machines, reducing the need for switch cabinets and cable runs. The motor also features a sealed shaft with a keyway, ensuring enhanced longevity, and emits a maximum noise level of 61.1 dB while in operation.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Name


Bosch MKE118B-024-PP0-KUN Synchronous Motor

Protection Standard


UL

Winding Code


024

Frame Size


118

Continuous Torque at Standstill (60 K)


28 Nm

Maximum Torque


102 Nm

Maximum Motor Current Rating


69.1 Amps

Continuous Current at Standstill (60 K)


15.3 Amps

Discharge Capacity


10.3 nanofarads

Winding Resistance


7.6 Ohms

Winding Inductance


0.58 millihenry

Maximum Velocity


4000 RPM

Protection Category


IP65

Ambient Noise


61.1 dB

Shaft Style


Keyway with Sealing Ring

Holding Brake


Not Featured

Cable Entry Diameter


US Standard

Terminal Box Location


Top Side

Operating Personnel


Qualified Only
