MKE118D-027-BP0-KE4

Original price $5,546.00 - Original price $5,546.00
Original price
$5,546.00
$5,546.00 - $5,546.00
Current price $5,546.00
In Stock, Ships 3 - 5 Days
Request a quote

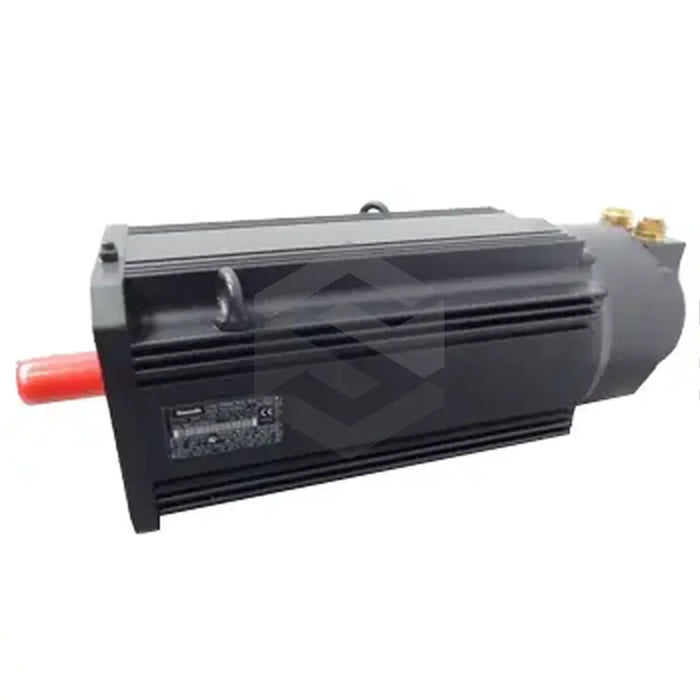

The MKE118D-027-BP0-KE4 is a robust Bosch Rexroth Indramat synchronous motor in the MKE series. It features impressive overload capability due to efficient heat dissipation from the stator windings to the housing's outer wall. With a frame length of D and winding type 027, it operates at a maximum speed of 3,000 min-1. The motor has a torque constant of 2.52Nm/A, a voltage constant of 154.5V/min-1 at 20°C, and a winding inductivity of 5.7mH. Its single-turn EnDat 2.1 optical encoder has 2,048 increments. The shaft, compliant with DIN 6885-1 standards, is complete with a keyway and sealing ring. It does not incorporate a holding brake. The motor is suitable for use in paper-processing and printing machinery. It is advisable to use the motor at a no-load speed of 800 to 1,000 RPM if not used for one to five years.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous Motor
  • Series: MKE
  • Model: MKE118D-027-BP0-KE4
  • Frame Length: D
  • Winding Type: 027
  • Maximum Velocity: 3000 min-1
  • Torque Constant: 2.52Nm/A
  • Voltage Constant: 154.5V/min-1 at 20°C
  • Primary Use: Printing and Paper-Processing Machinery
  • Encoder Type: Single-turn EnDat 2.1 optical encoder with 2048 increments
  • Shaft Design: DIN 6885-1 specifications
  • Holding Brake: None
  • Winding Inductivity: 5.7mH
  • Discharge Capacity: 20.2nF
  • Secondary Run after Storage: 800RPM to 1000RPM
  • Inertia: 0.03620kgm2
