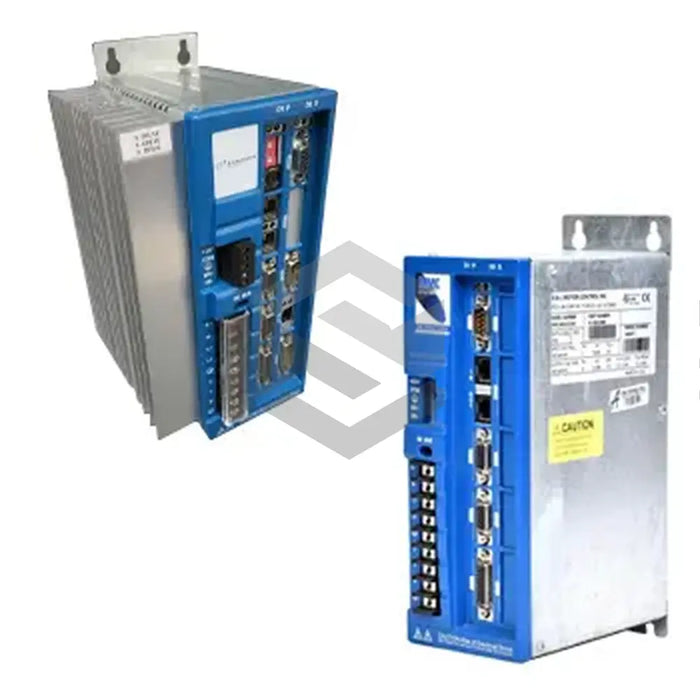

MMC-SD-0.5-230-A
by Kollmorgen
The Kollmorgen MMC-SD-0.5-230-A is a versatile module in the MMC Standalone Smart Drives series, designed to provide precision control in industrial automation. Manufactured by Kollmorgen, this controller module operates over a wide 100-240 VAC input voltage range and consumes only 14.5 W of power, ensuring efficient operation. Equipped with 2 CAN interfaces, it delivers reliable connectivity for servo motor drive applications, making it ideal for motion control tasks in demanding environments.
In terms of detailed technical specifications, the MMC-SD-0.5-230-A supports an input frequency of 47-63 Hz and offers a nominal input power rating of 1.0 kVA. The device’s AC output section provides a continuous output current of 2.5 A with a peak current capability of 7.5 A, enabling it to drive stepping and servo motors effectively. Optical isolation between input and output enhances noise immunity, while the integrated electrically isolated design safeguards the network capability. Mounting is simplified via a screw-in module format (TB712 terminal block ordered separately), minimizing installation complexity.
Additional features include eight optically isolated DC inputs and four isolated DC outputs, all supporting 24 VDC operation with defined on/off thresholds of 15 VDC and 5 VDC respectively. General purpose outputs handle up to 50 mA per channel, ensuring robust interfacing with external control devices. Feedback inputs accept differential quadrature signals up to 720 kHz for precise positioning and motion feedback. Built-in short-circuit and overload protection enhances durability and operational safety. By combining compact size, reliable electrical isolation, and flexible input/output options, the MMC-SD-0.5-230-A drive delivers high efficiency and dependable performance in industrial automation and motion control applications.
