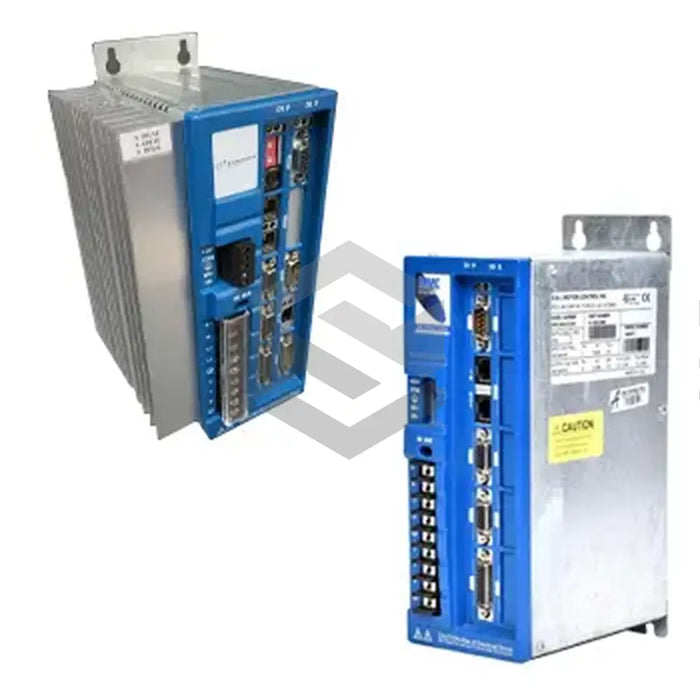

S image of MMC-SD-1.0-230-D

MMC-SD-1.0-230-D

by Kollmorgen
$1,826.33 - $6,850.42
$1,826.33
$1,826.33 - $6,850.42
$1,826.33

In Stock, Ships 1 - 3 Days

The Kollmorgen MMC-SD-1.0-230-D is a digital, 3-phase smart drive known for its sinusoidal commutation, digital Proportional Integral current regulator, and Proportional, Integral, and Derivative velocity controller. With a nominal input power of 2.0 kVA, it can deliver a continuous current output of 5 A, peaking at 15 A. The drive, weighing 5.6 lbs, employs a Maxim 3098 A feedback receiver and features a 24V DC power input. With various general-purpose inputs and outputs, the unit also boasts diagnostic LEDs, flash memory, and a differential quadrature-type encoder signal. It should be operated within 7 to 55 degrees C, with an installation altitude up to 5000 ft. Beyond this, specs are derated by 3% for every additional 984.252 ft. Safe storage temperatures are between -30 and 70 degrees C, while relative humidity should be kept between 5% and 95%.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Code

MMC-SD-1.0-230-D

Type

Digital smart MMC Drive

Commuation

3-phase sinusoidal

Current Regulator

Digital Proportional Integral (PI)

Velocity Regulator

Digital Proportional, Integral and Derivative (PID)

Maximum Tightening Torque

10.4 in-lbs (1.17 Nm)

Nominal Input Power

2.0 kVA

Continuous Current Output Rating

5 A

Weight

5.6 lbs (2.5 kg)

Peak Output Current

15 A

Feedback Input Receiver

Maxim 3098 A quad B differential RS422

Power Input

24 Volts DC

Typical Input Voltage

9 Watts

Typical Input Current

350 mA

Encoder Signal

Differential quadrature

DC Bus capacitance

1880 µF

Installation Altitude

5000 ft (1500 meters)

Altitude De-rating

3 % per 984.252 ft above 5000 ft

Operating Temperature

7 degrees C – 55 degrees C

Storage Temperature

-30 degrees C – 70 degrees C

Relative Humidity

5 % - 95 % (non-condensing)
