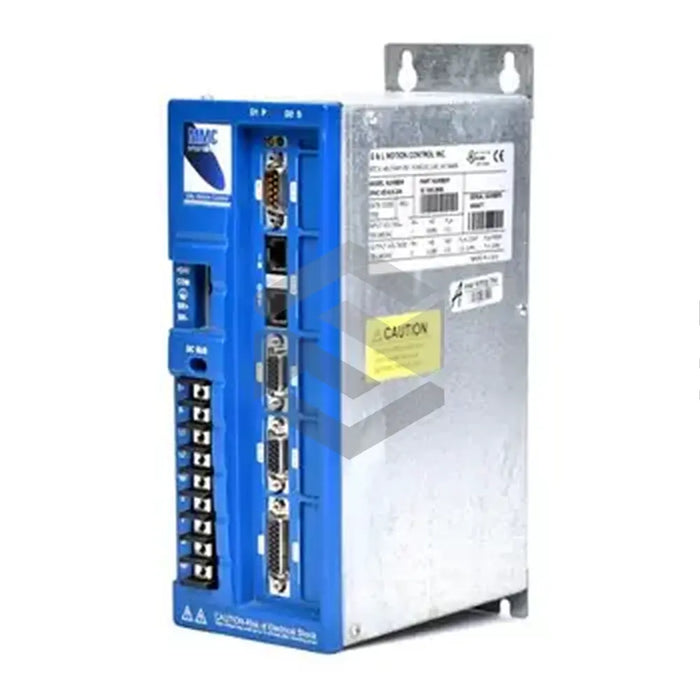

series image of MMC-SD-1.0-230-DN

MMC-SD-1.0-230-DN

by Kollmorgen
$6,500.00 - $6,500.00
$6,500.00
$6,500.00 - $6,500.00
$6,500.00
In Stock, Ships 1 - 2 Days
The Kollmorgen MMC-SD-1.0-230-DN is a 1kW smart drive from the MMC series, with a nominal input power of 2.0 kVA. The device, which weighs approximately 2.55 kg, operates through a digital link and can withstand a maximum inrush current of 70A. It employs a Digital PI current regulator updated every 125 microseconds and a PID voltage regulator updated every 250 microseconds. With a nominal input voltage range of AC 100-240V and an input current of 9A RMS, it can deliver a peak output current of 15A and continuous current of 5A. For effective performance, the operating temperature should range between 7°C – 55°C, and for storing, the temperature should be between -30°C and 70°C. The smart drive uses a Maxim 3098 A quad B differential RS422 receiver, quadrature encoder signals and includes multiple general-purpose I/Os.
30 Day Warranty
Technical Specifications
  • Product Name: MMC-SD-1.0-230-DN
  • Product Type: 1 kW Smart Drive
  • Series: MMC
  • Input Power: 2.0 kVA
  • Weight: 2.55 kg
  • Max Inrush Current: 70 Amperes
  • Current Regulator: Digital PI
  • Voltage Regulator: Digital PID
  • Nominal Input Voltage: AC 100 – 240 Volts
  • Nominal Input Current: 9 Amperes RMS
  • Peak Output Current: 15 Amperes
  • Continuous Output Current: 5 Amperes
  • Input Receiver: Maxim 3098 A quad B differential RS422
  • Features: User-upgradable flash memory, Diagnostic LED (yellow colour), Power Indicator LED (green), General-purpose DC 24 Volts inputs and outputs.
  • Operating Temperature Range: 7 degrees C – 55 degrees C
  • Storage Temperature Range: -30 degrees C – 70 degrees C
  • Maximum Installation Altitude: 1500m above sea level
  • Derate: 3% per 300m above 1500m
  • Relative Humidity: 5% - 95% (non-condensing)
