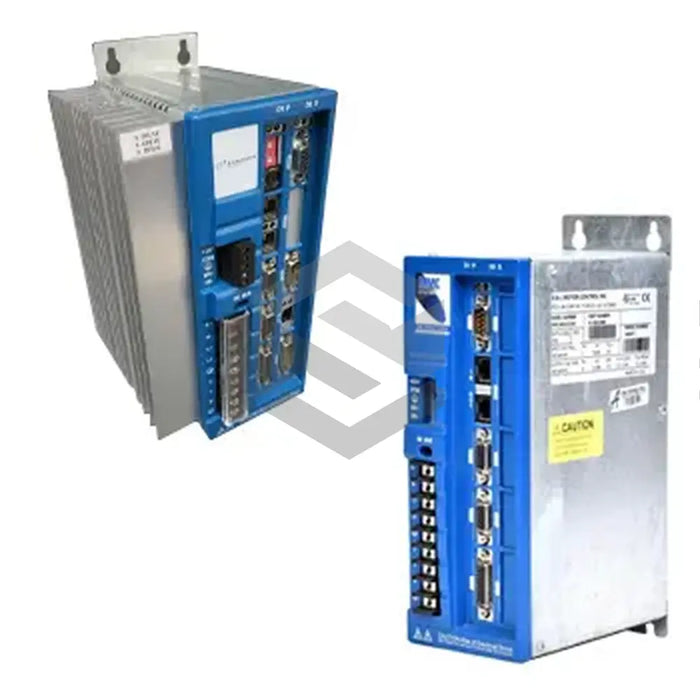

MMC-SD-1.3-460-D
by Kollmorgen
{
"paragraphs": [
"
The Kollmorgen MMC-SD-1.3-460-D smart drive from the MMC Standalone Smart Drives series is a compact and reliable unit designed for precise industrial automation. Manufactured by Kollmorgen, this drive delivers a continuous output current of 3.0A and a continuous output power of 1.3 kW at 460 VAC, with a corresponding 0.65 kW at 230 VAC. It features a three-phase input nominal voltage range of 207–460 VAC (expandable to 187–528 VAC) and operates over a frequency range of 47–63 Hz. Ideal for applications requiring stable torque and speed control, this drive ensures consistent performance across varying load conditions.
", "The MMC-SD-1.3-460-D is engineered with precision technical specifications to meet demanding requirements. It supports a peak output current of 6.0A and an internal DC bus capacitance of 110 µF, enabling efficient energy handling and smooth dynamic response. The drive’s nominal input current is 2.44 A RMS at 460 VAC, with a nominal input power of 1.94 kVA. A maximum inrush current of 4.56 A RMS limits stress during startup, while a shunt switch threshold of 780 VDC assists in safe overvoltage dissipation. Its output frequency spans from 0 to 450 Hz, allowing precise motor speed regulation in diverse industrial tasks.
", "Beyond core performance, the MMC-SD-1.3-460-D offers enhanced compatibility and efficiency. With a power loss of only 34 W, thermal performance is optimized for continuous operation, reducing cooling requirements and maintenance intervals. The drive’s energy absorption capacity of 10 joules for 460 VAC motors protects against transient disturbances, boosting reliability. Weighing just 10 lbs, it integrates easily into compact control panels and industrial machinery. By combining robust electrical characteristics with compact form factor, this smart drive delivers energy-efficient, dependable motion control solutions for modern automation systems.
" ] }
