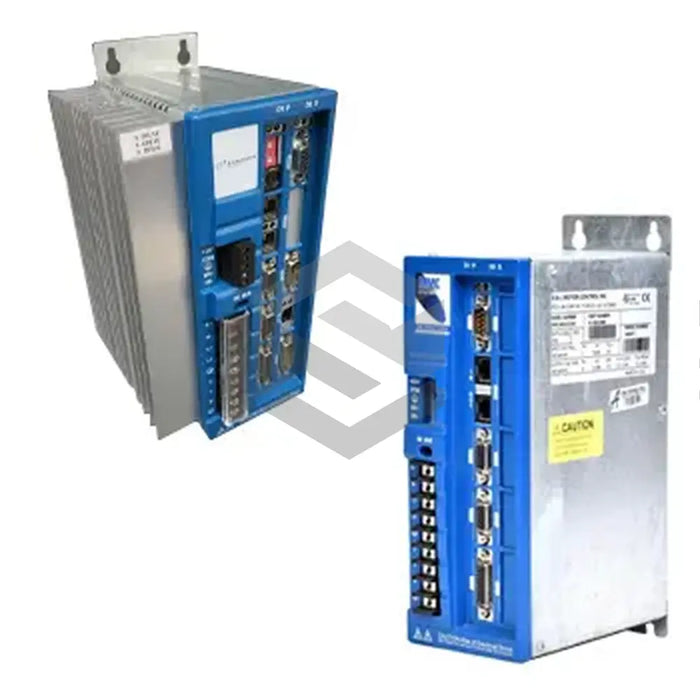

The Kollmorgen MMC-SD-16.0-460 is a high-performance drive from the MMC Standalone Smart Drives series. It delivers 16.0 kW continuous output at 460 VAC with a continuous current of 36.5A and peak current of 73.0A. Operating from 200-480VAC three-phase at 47–63 Hz, it weighs 35 lbs, features 22 Ohms external shunt resistance, and runs from 0°C to 50°C ambient conditions.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Ac Input Current Nominal, 460v Ac Input
21.1Arms
Ac Input Frequency
47 - 63 Hz
Ac Input Voltage
200-480VAC (nominal), three phase
Continuous Current
36.5A
Continuous Power Output With 460v Ac Input
16.0 kW
Dimensions
5.51(140) x 19.69(500) x 14.37(365) inches (mm) WxHxD
Energy Absorption Capability, 460v Motor W/460v Ac Input
114 Joules
External Shunt Resistance
22 Ohms
Maximum Inrush, 460v Ac Input
39.2Arms
Operating Temperature
0°C to 50°C (32°F to 122°F)
Peak Current
73.0A
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Weight
35.0 lbs (15.9 kg)
