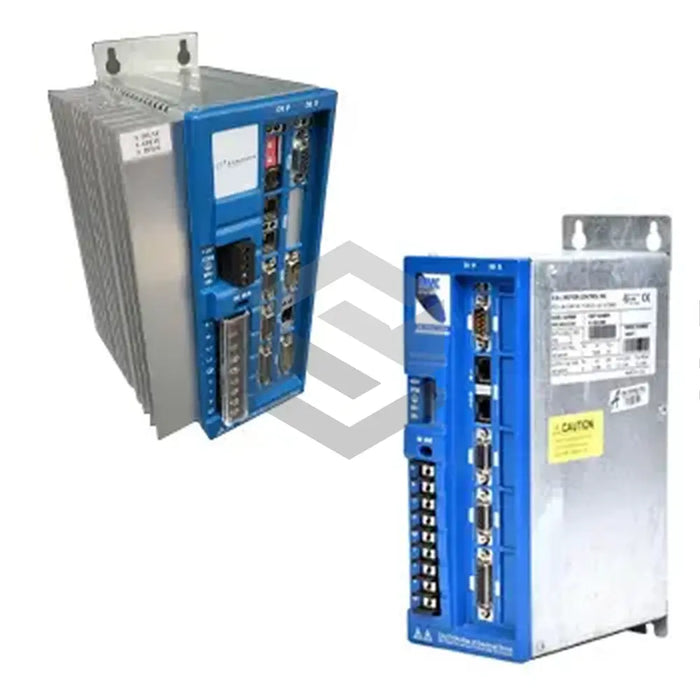

S image of MMC-SD-2.0-230

MMC-SD-2.0-230

by Kollmorgen
$1,843.73 - $1,843.73
$1,843.73
$1,843.73 - $1,843.73
$1,843.73

In Stock, Ships 1 - 3 Days

This product is Kollmorgen's MMC-SD-2.0-230, an analog single phase smart drive accepting +/- 10 Volts analog motion commands. The device runs on an input current of 18 Amperes with a voltage of 120 or 230 VAC, and a power rating of 2 kW. It boasts a 230 Volts optional line filter which operates at a frequency of 50 Hz, with a continuous current rating verified at 50 degrees Celsius. With an overload current rated at 150% per minute and 200% per second, it functions in temperatures from -25 degrees C to 95 degrees C. The device includes a dynamic shunt resistor module for avoiding bus overvoltage faults, and utilizes solid-state motor overload protection per UL 508C. For safety, only certified personnel should operate the control system, and it should be stored in a clean, dry location within manufacturer-specified temperature and humidity levels.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Type

MMC single phase smart drive

Model

MMC-SD-2.0-230

Input Type

Analog

Input Voltage

120 VAC and 230 VAC

Nominal Input Current

18 Amperes

Power Rating

2 kW

Optional Line Filter Voltage

230 Volts

Continuous Current

10 Amperes

Maximum Current

30 Amperes

Operating Frequency

50 Hz

Operating Temperature

-25 degrees C to 95 degrees C

Leakage Current

46 mA at 240 Volts and 50 Hz

Shunt Resistor Resistance

100 ohms

Shunt Resistor Power Rating

300 Watts

Shunt Resistor Voltage Rating

600 Volts

Motor Overload Protection

Solid-state, as per UL 508C

Storage Condition

Clean and dry location with controlled humidity and storage temperature

Safety Measure

Must only be operated by trained and certified personnel.
