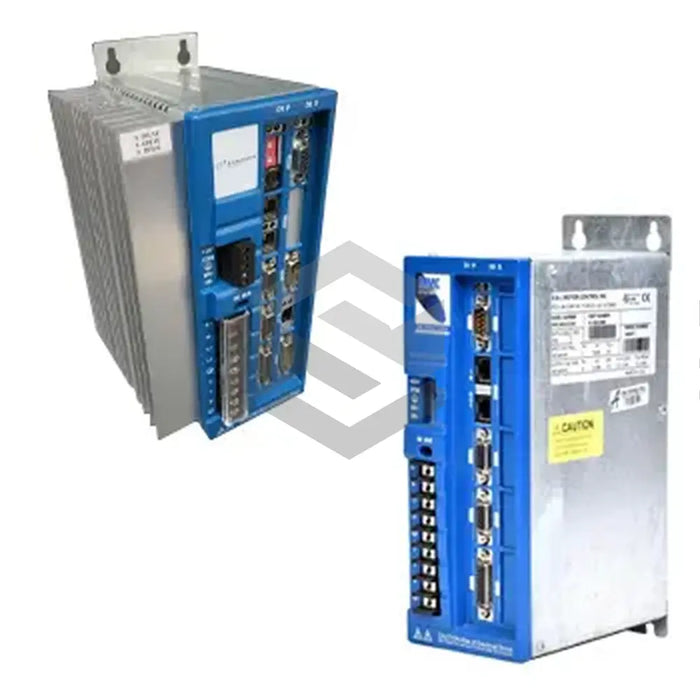

The MMC-SD-24.0-460-D from Kollmorgen provides 26.3 kVA nominal input power and accepts 200–460 VAC. Part of the MMC Standalone Smart Drives, this drive delivers 24.0 kW continuous output at 460 VAC and a 110 A peak output current.
It accepts three-phase AC at 47–63 Hz with 33.1 A nominal input and 61.8 A maximum inrush currents. The drive weighs 35 lbs and dissipates 3,900 W continuously in its shunt resistor.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
AC Input Frequency
47-63 Hz
AC Input Phase
Three-phase
AC Input Voltage (Nominal)
200-460 VAC
AC Input Voltage Limits
180-528 VAC
Continuous Output Current
55 A
Continuous Output Power
24 kW (at 460 VAC)
DC Input Voltage Range
24 VDC, +15%/-10%
Maximum Inrush Current
61.8 A RMS
Nominal AC Input Current
33.1 A RMS
Nominal AC Input Power
26.3 kVA
Output Frequency Range
0-450 Hz
Peak Output Current
110 A
Power Loss
600 W
Shunt Continuous Dissipation
3,900 W
Shunt Peak Dissipation
70 kW
Shunt Resistance
18 Ω
Weight
35 lbs
