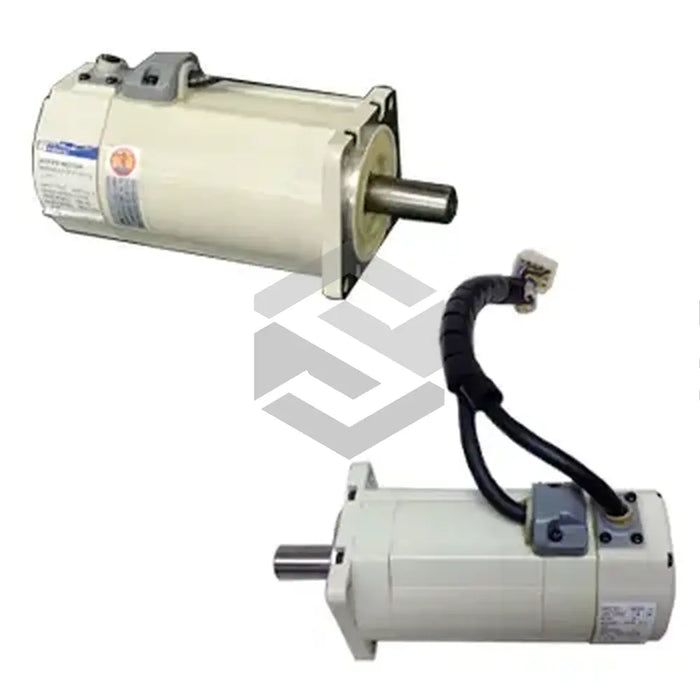

manufacturer image of MMD012A-030-EG1-CN

MMD012A-030-EG1-CN

by Bosch Rexroth Indramat
Request a quote
The MMD012A-030-EG1-CN is a top-tier servo motor produced by Bosch Rexroth Indramat, combining excellent functionality with Indramat's own AC servo drivers. With elevated attention to detail and stringent controls during production, the MMD012A-030-EG1-CN ensures optimal results when installed correctly and used alongside the designated AC servo driver. It weighs 0.73 kg with a brake and 0.53 kg without, possessing a rotor moment of inertia of 0.067 x 10-4 kgm² and 0.063 x 10-4 kgm², respectively. Its nominal speed is 3000 min-1 and can reach a theoretical maximum speed of 5000 min-1, with a peak theoretical torque of 0.95 Nm. The incremental Encoder Impulses are 2500 I/min-1, and the motor functions in at 85% humidity, from -20 ºC to +80 ºC. Lastly, it can be successfully installed up to an altitude of 1000 meters.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: MMD012A-030-EG1-CN
  • Type: AC Servo Motor
  • Weight with Brake: 0.73 kg
  • Weight without Brake: 0.53 kg
  • Rotor Moment of Inertia with Brake: 0.067 X 10-4 kgm²
  • Rotor Moment of Inertia without Brake: 0.063 X 10-4 kgm²
  • Nominal Motor Speed: 3000 min-1
  • Maximum Theoretical Speed: 5000 min-1
  • Maximum Theoretical Torque: 0.95 Nm
  • Impulses of Incremental Encoder: 2500 I/min-1
  • Working and Storage Humidity: 85%
  • Permissible Storage and Transportation Temperature: -20 ºC to +80 ºC
  • Maximum Elevation for Installation: 1000 meters above sea level
