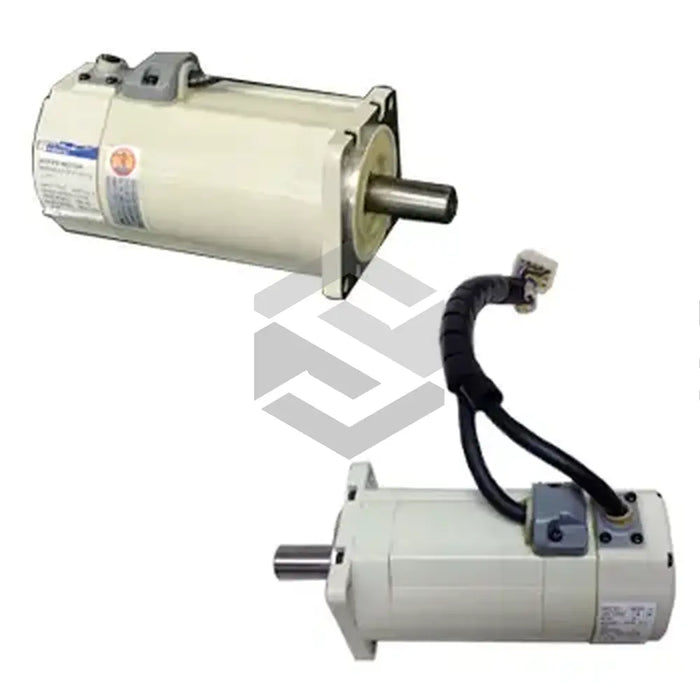

manufacturer image of MMD022A-030-EG0-CN

MMD022A-030-EG0-CN

by Bosch Rexroth Indramat
$8,209.90 - $8,209.90
$8,209.90
$8,209.90 - $8,209.90
$8,209.90
Available, Shipping Varies
The MMD022A-030-EG0-CN, an AC servomotor from Bosch Rexroth Indramat, forms part of their Mini Drive series which includes a wide range of drive controllers and servomotors. This 0.96-kilogram motor, specifically designed to be paired with the DMD01.1-W022 drive controller, has a power rating of 200 watts and can achieve speeds of up to 3000 RPM, with a maximum limit of 5000 RPM. The motor offers a standard torque of 0.64 Nm and can peak at approximately 1.91 Nm, with its low rotor inertia allowing for rapid acceleration and deceleration. Though lacking an in-built brake, an optional 24V brake can be added. The motor, which is 125 mm in length and features a 25-mm plain shaft, includes a built-in incremental encoder offering up to 2500 increments. It operates reliably up to 40 degrees Celsius and installation altitudes under 1000 meters, with IP65 compliance ensuring dust and water resistance.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MMD AC servomotors
  • Part Number: MMD022A-030-EG0-CN
  • Weight: 0.96 kilograms
  • Compatibility: DMD01.1-W022 drive controller
  • Rated Power: 200 watts
  • Rated Speed: 3000 RPM
  • Top Speed: 5000 RPM
  • Standstill Torque: 0.64 Nm
  • Maximum Torque: 1.91 Nm
  • Rotor Inertia: Low
  • Brake Installation: Optional 24V brake
  • Motor Size: 22
  • Length Category: A
  • Total Length: 125mm
  • Encoder Increments: 2500
  • Shaft Size: 25mm
  • Ambient Temperature: 40 degrees Celsius
  • Installation Height: Below 1000 meters
  • IP Rating: IP65
