MS2E03-D0BYN-EMDL1-NNNNS-G1

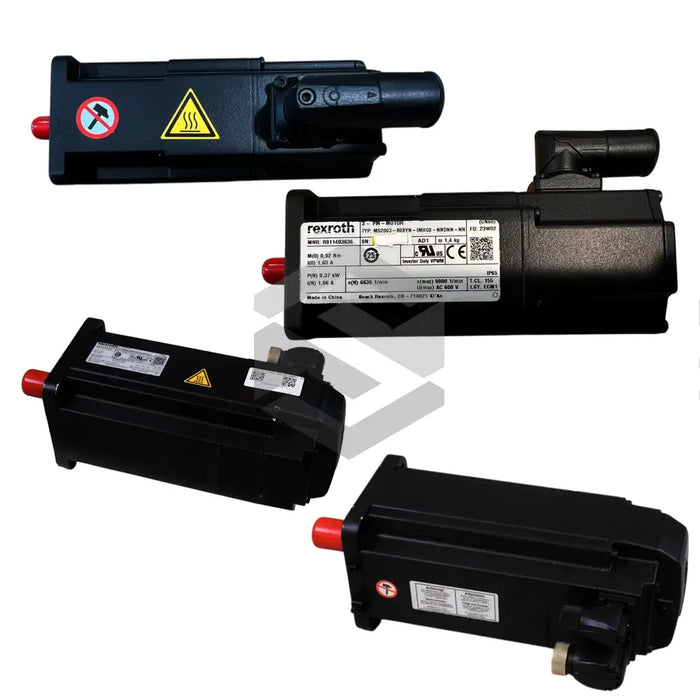

The Bosch Rexroth Indramat MS2E03-D0BYN-EMDL1-NNNNS-G1 servomotor, part of the MS2E Synchronous Servomotors series, delivers precise motion control for industrial automation. This compact unit features a rated torque of 0.58 Nm and a standstill torque of 1.15 Nm, enabling both continuous operation and secure holding under load. With a nominal speed of 9000 1/min and a mass between 2.0 and 2.4 kg, it is ideal for high-speed, low-torque applications such as precise positioning in assembly systems or rapid indexing in packaging machines.
Built for demanding environments, the MS2E03-D0BYN-EMDL1-NNNNS-G1 offers a frame length code D and a low inertia rotor (jrot = 0.000037 – 0.000044 kg·m²) for fast acceleration and deceleration. Its self-cooling principle ensures stable temperature management without external fans, while the PT1000 temperature sensor provides real-time thermal monitoring. The motor employs a multiturn encoder for accurate feedback and features deep-groove ball bearings for reliable shaft support. With five pole pairs and an ATEX compliant rating, it meets rigorous safety and explosion-proof standards, setting it apart in hazardous or explosive atmospheres.
Designed for durability and ease of integration, this servomotor uses standardized mounting with 4.5 mm diameter holes and a robust housing that tolerates relative humidity from 5% to 95% and absolute humidity up to 29 g/m³. Its holding torque of 1.80 Nm ensures secure positioning during power interruptions. The 0.24 kW rated power and winding resistance of 6.29 Ω at 20 °C contribute to energy-efficient operation and simplified drive tuning. Compliant with ATEX directives, the MS2E03-D0BYN-EMDL1-NNNNS-G1 offers reliable performance, minimal maintenance, and exceptional responsiveness, making it a valuable asset for precise, high-throughput industrial systems.
