MS2N04-D0BHN-BMDG0-NNNNN-NN

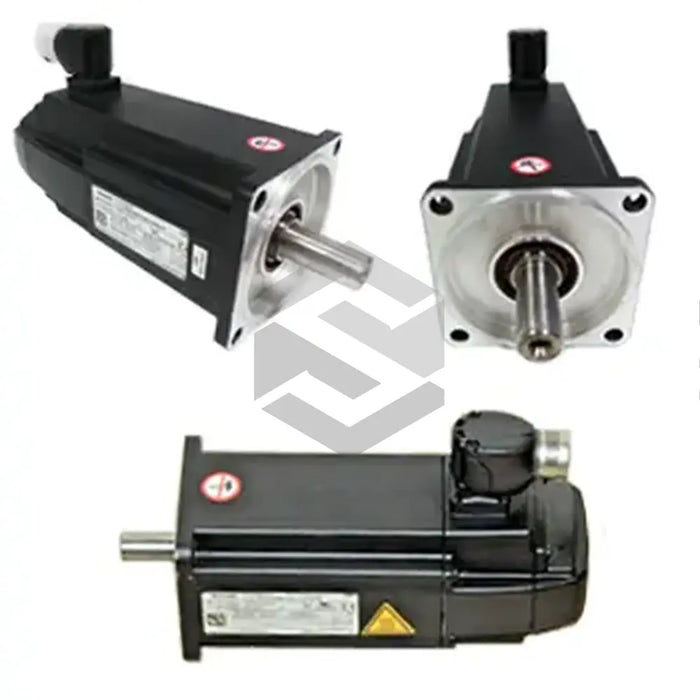

The Bosch Rexroth Indramat MS2N04-D0BHN-BMDG0-NNNNN-NN servo motor is a high-performance actuator in the MS2N Synchronous Servo Motors series, designed for precision motion control in demanding industrial environments. This unit leverages an asynchronous operation design that utilizes magnetic induction principles to generate rotational force, delivering high dynamic response and consistent torque across varying temperature conditions. With a smooth shaft seal and an M17 double plug, turnable electrical connection, the MS2N04-D0BHN-BMDG0-NNNNN-NN provides reliable signal transmission and environmental protection without requiring an integrated holding brake. The motor’s Multiturn encoder design supports rapid positioning and precise feedback for applications where repeatability and accuracy are critical.

Detailed technical specifications characterize the MS2N04-D0BHN-BMDG0-NNNNN-NN’s capabilities. It produces a Maximum Torque (Cold) of 19.7 Nm and Maximum Torque (Warm) of 18.1 Nm, ensuring consistent power output under varied thermal loads. The motor achieves a Maximum Speed of 6000 rpm and operates at a Nominal Speed of 2040 rpm in rated mode, matching high-speed requirements with optimized torque delivery. A 128-period Hiperface Encoder provides precise angular feedback, while the low Inertia Rating of 0.00016 kgm² enables fast acceleration and deceleration cycles. With Number of Poles: 10, this motor balances electromagnetic performance and mechanical smoothness for stable operation across speed ranges.

Operational features underscore the MS2N04-D0BHN-BMDG0-NNNNN-NN’s suitability for dynamic applications. The asynchronous design minimizes rotor heating and maintains continuous torque output in cold and warm conditions. The robust construction endures a Maximum Temperature rating of 170°C and operates within an Operating Temperature Limit of 40°C, preventing thermal derating in extreme environments. An IP65 Protection Rating ensures resistance to dust and moisture ingress, maintaining performance in harsh industrial settings. Rapid response to control signals and high torque-to-inertia ratio make this servo motor ideal for precise, high-speed positioning tasks.

System integration is streamlined through compatibility with standard drive controllers and digital feedback interfaces, utilizing the Hiperface protocol for seamless data exchange. The absence of an integrated brake simplifies mechanical coupling in multi-axis arrangements and reduces maintenance complexity. Combined with its compact footprint and turnable M17 electrical connector, the MS2N04-D0BHN-BMDG0-NNNNN-NN can be readily deployed in robotics, CNC machine tools, packaging machinery, and axis control systems where high accuracy, fast cycle times, and environmental resilience are paramount.
