MS2N07-D0BHN-CMUG0-NNANN-NN

Original price $2,943.00 - Original price $2,943.00
Original price
$2,943.00
$2,943.00 - $2,943.00
Current price $2,943.00
Available, Shipping Varies

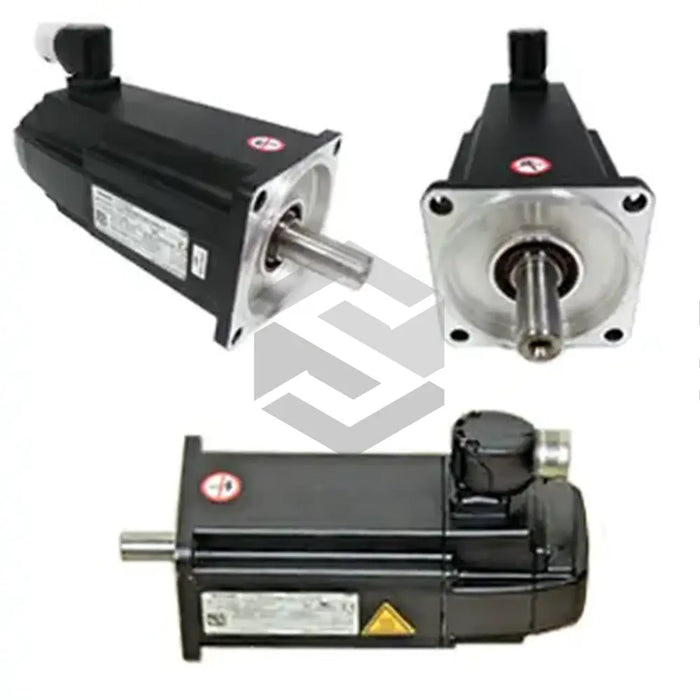

The MS2N07-D0BHN-CMUG0-NNANN-NN is an IndraDyn S synchronous servomotor from Bosch Rexroth Indramat. With a frame size of 70mm and length of D, the motor operates at a maximum electrical speed of 4,000min-1 and a maximum mechanical speed of 6,000min-1. It's designed according to EN600034-7 specifications. Other features include a 140mm flange, motor temperature monitoring, and a forced ventilation cooling mode with an axial fan running at 60Hz and 115V. The servomotor has a smooth shaft, standard bearings, a discharge capacity of 4.1nF, and a 54s thermal time constant. It also hosts a multi-turn encoder with 4,096 absolute revolutions. The motor doesn't include a holding brake and weighs 17.5g. It must be operated, stored, or transported in environments between -25°C and +55°C, and without condensation. Prior to use after extended storage, the motor should be run without load at 800-1,000RPM.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: IndraDyn S synchronous servomotor
  • Frame Size: 70mm
  • Frame Length: D
  • Max Electrical Speed: 4000min-1
  • Max Mechanical Speed: 6000min-1
  • Design: IM B5/EN600034-7
  • Flange Size: 140mm
  • Temperature Sensor: Yes
  • Warning Temperature: 140°C
  • Cooling Mode: Forced ventilation (axial fan)
  • Fan Frequency: 60Hz
  • Fan Voltage: 115V
  • Storage Conditions: No condensation
  • Transport Temperature Range: -25°C and +55°C
  • Holding Brake: No
  • Shaft Type: Smooth (with sealing ring)
  • Capacitor Discharge Capacity: 4.1nF
  • Thermal Time Constant: 54s
  • Weight: 17.5g
  • Encoder Type: Multi-turn (4096 absolute revolutions)
  • Bearings: Standard
  • Rotor Moment of Inertia: 0.0021g*m2 +/-10%
  • Delivery: Worldwide through transport partners.
