MS2N07-D0BRN-BMVK2-NNANN-F1

Original price $6,996.50 - Original price $6,996.50
Original price
$6,996.50
$6,996.50 - $6,996.50
Current price $6,996.50
In Stock, Shipping Varies
Request a quote

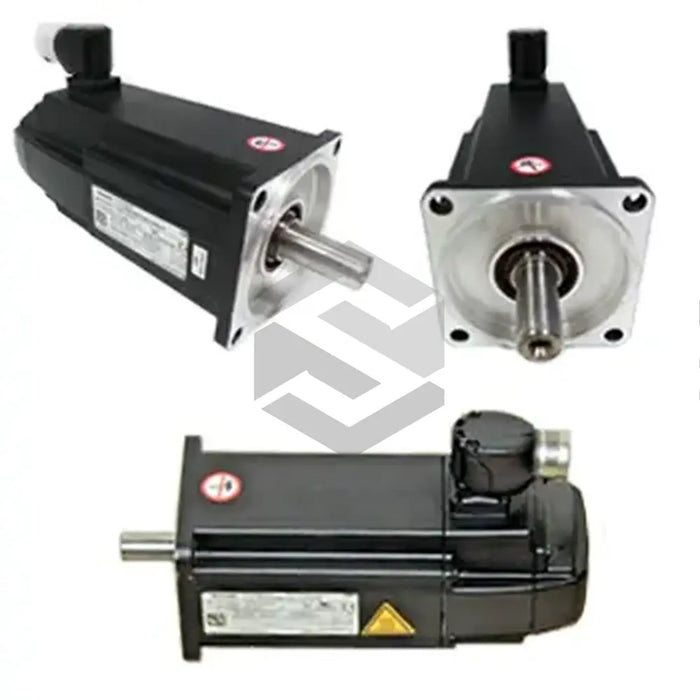

The MS2N07-D0BRN-BMVK2-NNANN-F1 IndraDyn S, a synchronous servomotor from Bosch Rexroth Indramat, is a member of the MS2N07 series and features 10 poles, standard bearings and a standard flange. The motor has a half-key balancing keyway shaft inclusive of a shaft sealing ring as per DIN ISO 21940-32 standards. Equipped with a multiturn encoder, the motor enables indirect absolute position recording within 4,096 rotations and carries an M40/M17 rotatable double cable electrical connection. Cooled via an IC410 or self-cooling mechanism, it maintains a tolerance of type N and is fitted with a servo brake holding a torque of 36Nm and switched energy of 850J. Note its 20°C torque constant at 1.38NmA with +/-5% variance, and voltage constant of 83.9V 1000min-1. Gearboxes installed should be oil-proof or closed lubrication type. Its shaft has a frontal centering hole with DS M10 threading, aligning with DIN 332-2 keyway specifications.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: MS2N07
  • Motor Type: Synchronous Servomotor
  • Pole Quantity: 10
  • Bearings: Standard
  • Flange Type: Standard
  • Shaft Type: Half-key Balancing Keyway Shaft with Shaft Sealing Ring
  • Shaft Specifications: DIN ISO 21940-32
  • Motor Disconnection Temperature Threshold: 145°C
  • Encoder Type: Multiturn
  • Encoder Rotations: 4096 Mechanical Rotations
  • Electrical Connection: M40/M17 Rotatable Double Cable
  • Voltage Constant: 83.9V 1000min-1 +/-5%
  • Torque Constant: 1.38NmA +/-5% at 20°C
  • Frontal Centering Hole Specifications: DS M10 Thread According to Keyway and DIN 332-2
  • Brake Holding-Torque: 36Nm
  • Maximum Switched Energy: 850J
  • Motor Tolerance: N Type
  • Cooling Mechanism: IC410 or Self-Cooling Mechanism Based on EN 60034-6 Specifications.
