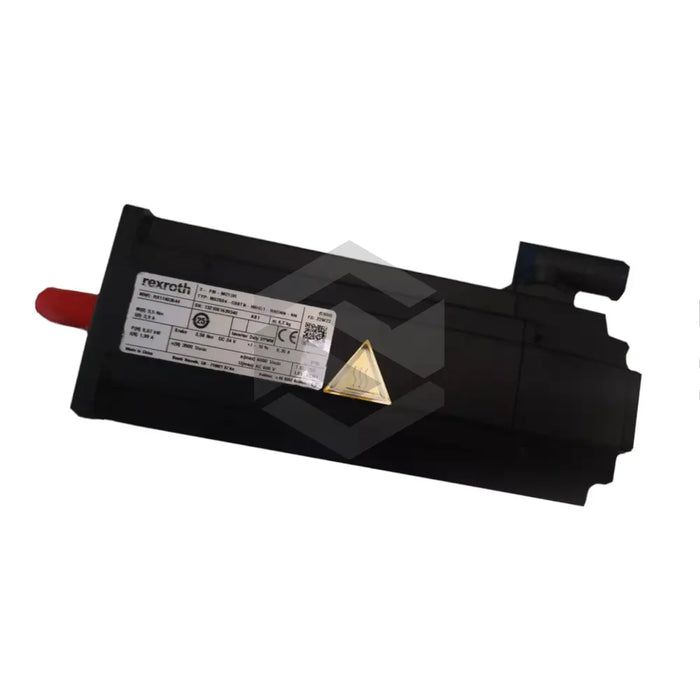

The Bosch Rexroth Indramat MS2S03-B0BYN-IMHG1-NNDNN-NN is a high-performance servo motor from the MS2S Synchronous Servomotors series, delivering a rated torque of 0.54 Nm and maximum torque of 3.46 Nm. It operates up to 9000 rpm, features self-cooling, a thermal time constant of 11.3 minutes, winding resistance of 14 Ω, draws 1.06 A at 100 K and weighs 1.8 kg.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Bearing
Standard bearing (Deep-groove ball bearing)
Coating
Standard varnish RAL 9005 black
Cooling Mode
Self-cooling
Design (Mounting Code)
IM B5 / IM 3001
Electrical Connection
Single cable connection M17, rotatable
Encoder Design
Multiturn
Encoder Interface
ctrlX SENSEmotor
Flange Exactness
Standard (Tolerance N)
Frame Length
B
Flange
58 [mm]
Maximum Brake Applications per Hour
20
Product Type
MS2S Synchronous Servomotors
Rotor Inertia
Low inertia
Centering Hole Standard
DIN 332 Part 2
Rated Current - 100K
1.06 A
Mass
1.8 kg
Rated Torque - 100K
0.54 Nm
Standstill Torque - 60K
0.73 Nm
Voltage Constant at 20 °C
37.4 V/1000 min-1
Installation Altitude
0 … 1,000 m Above Sea Level
