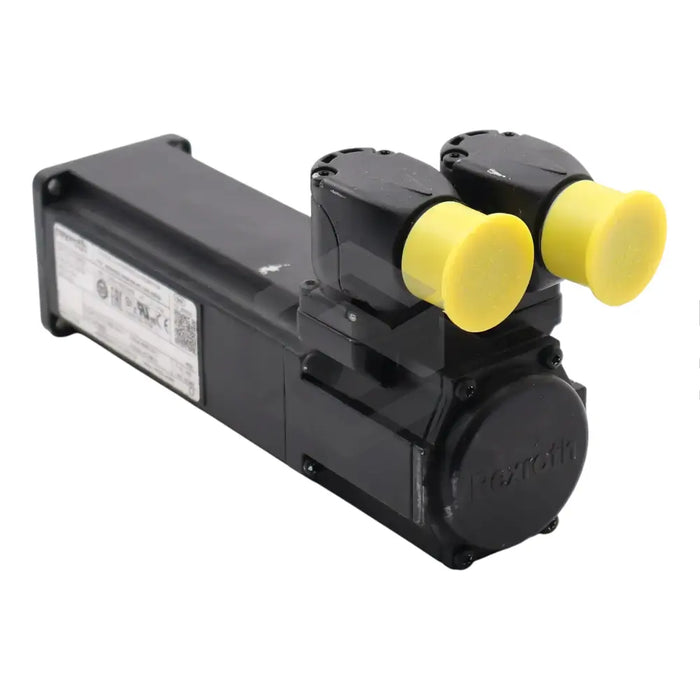

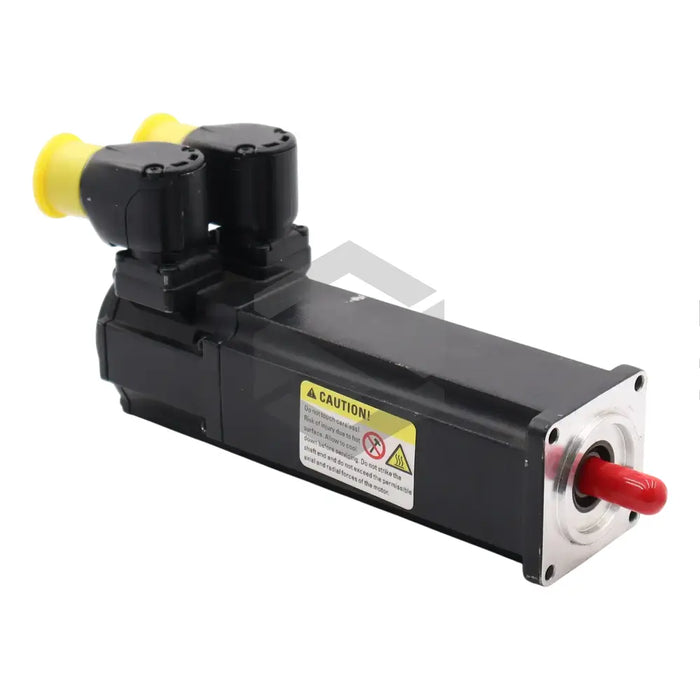

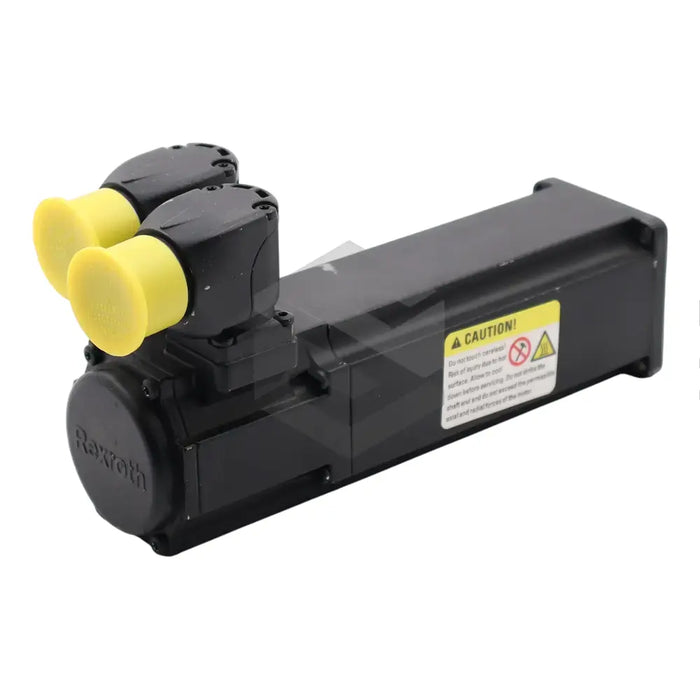

series image of MSK030B-0900-NN-M3-UG1-NNNN

MSK030B-0900-NN-M3-UG1-NNNN

by Bosch Rexroth Indramat
$6,671.32 - $6,671.32
$6,671.32
$6,671.32 - $6,671.32
$6,671.32
In Stock, Ships Today
The MSK030B-0900-NN-M3-UG1-NNNN, produced by Bosch Rexroth Indramat, belongs to the Rexroth IndraDyn S series of synchronous motors. This piece of machinery is ideally suited to applications in machine tools, robotics, and paper processing. Commonly utilized as a servo drive or primary rotary motor, it showcases a frame length of B, motor frame size of 030 and winding code of 900. This model additionally incorporates an absolute multiturn capacitive encoder, facilitating indirect location recording, with a maximum speed of 12,000 RPM. It has a holding brake with a moment of inertia of 0.00001 kgm2 and a torque of 1 Nm, and a maximum torque of 1.8 Nm. Featuring natural convection cooling, it weighs approximately 1.6 kg and adheres to the IP 65 protection category. Operationally, the ambient air temperature must fall between 0 and 40 degrees Celsius.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: Rexroth IndraDyn S series
  • Design Applications: Machine Tools, Robotics, Paper Processing Equipment
  • Functionality: Servo Drive, Rotary Main Motor
  • Frame Length: B
  • Motor Frame Size: 030
  • Winding Designation: 0900
  • Encoder Type: Capacitive Encoder, Absolute Multiturn, Hiperface Interface
  • Encoder Resolution: 4096 Distinct Resolutions
  • Encoder Signal Periods: 16
  • Encoder Accuracy: 520 Angular Second
  • Encoder Maximum Speed: 12,000 RPM
  • Peak Current Usage: 50 mA
  • Supply Voltage: 7 to 12 Volts
  • Holding Torque: 1 Nm
  • Holding Brake Input Voltage: 24 V
  • Holding Brake Rated Current: 0.31 A
  • Moment of Inertia: 0.00001 kgm2
  • Cooling System: Natural Convection
  • Electrical Connection: 240 degrees rotating
  • Shaft: Smooth Shaft with Sealing Ring
  • Maximum Torque: 1.8 Nm
  • Maximum Current: 6.8 A
  • Winding Resistance: 7.2 Ohm
  • Voltage Constant: 17.9 V/1000 min-1
  • Torque Constant: 0.29 Nm/A
  • Discharge Capacity: 0.7 nF
  • Pole Pairs: 3
  • Weight: 1.6kg
  • Protection Category: IP 65
  • Thermal Class: 155
  • Ambient Air Temperature: 0 to 40 degrees Celsius during operation.
