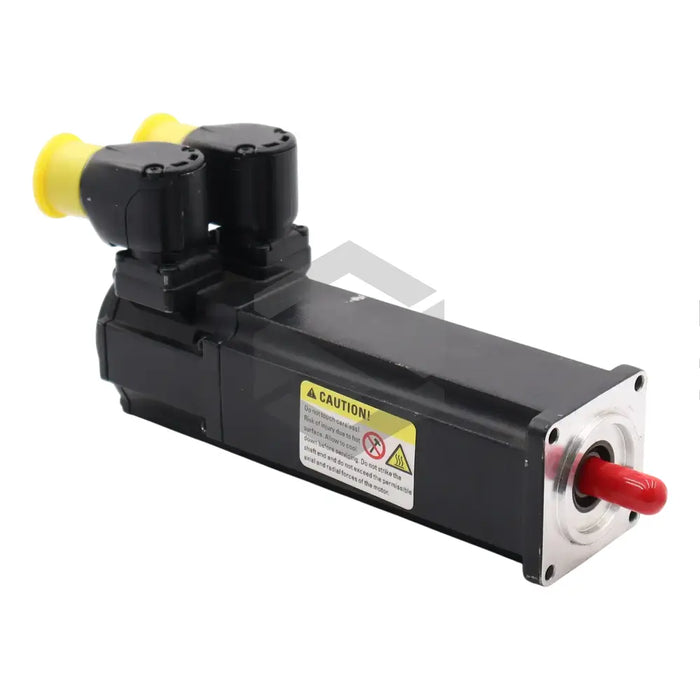

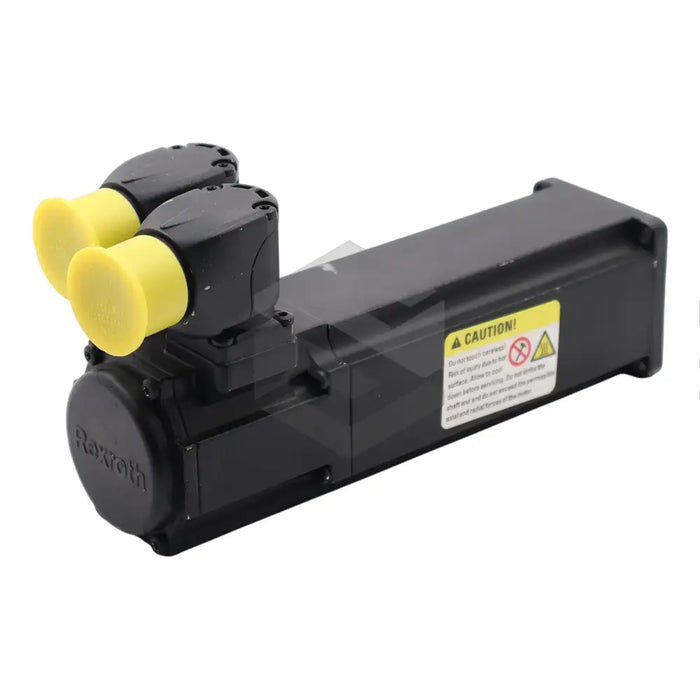

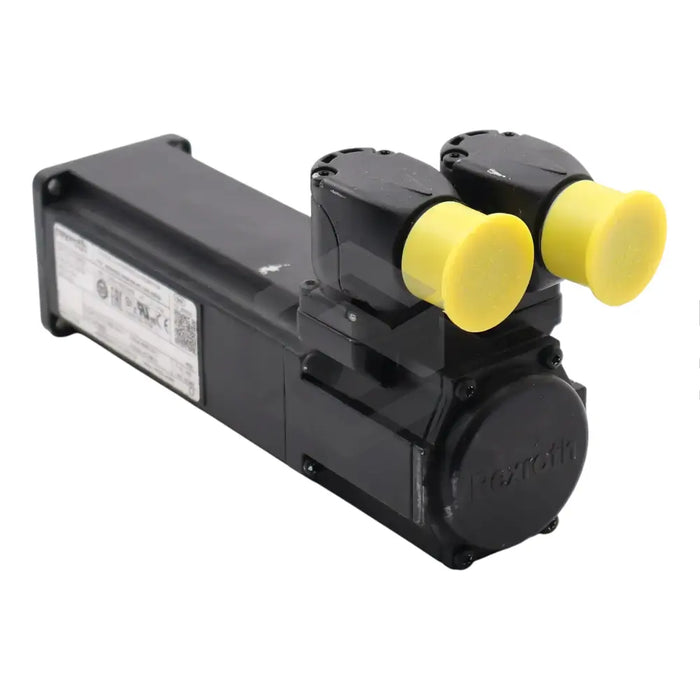

series image of MSK030B-0900-NN-S1-UG0-NSNN

MSK030B-0900-NN-S1-UG0-NSNN

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat MSK030B-0900-NN-S1-UG0-NSNN is a synchronous motor in the MSK series, featuring a size of 030, a length of B, and a winding code of 0900. This motor exhibits a continuous torque at 60K and 100K standstill of 0.4 Nm, and a continuous current of 1.5 Amps at 60K and 1.7 Amps at 100K. Its top torque is 1.8 Nm while the maximum current rating sits at 6.8 Amps. The three-pole pair system facilitates a maximum speed of 9000 RPM. Weighing 1.3 kg, this convection-cooled motor operates efficiently in 0-40 degrees Celsius. Its IP 65 protection class ensures dust-tight service with resistance to low-pressure water jets. With a single turn optical encoder rated for 128 periods, it features a 240-degree rotatable electrical connector and smoothly sealed shaft. Please note the absence of a holding brake in this 7-12V DC motor, with installation recommended by qualified personnel.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MSK Series
  • Product Code: MSK030B-0900-NN-S1-UG0-NSNN
  • Motor Size: 030
  • Motor Length: B
  • Motor Winding Code: 0900
  • Continuous Torque at Standstill 60K: 0.4 Nm
  • Continuous Current at Standstill 60K: 1.5 Amps
  • Continuous Torque at Standstill 100K: 0.4 Nm
  • Continuous Current at Standstill 100K: 1.7 Amps
  • Maximum Torque: 1.8 Nm
  • Maximum Current: 6.8 Amps
  • Pole Pairs: 3
  • Maximum Motor Speed: 9000 RPM
  • Motor Weight: 1.3 Kilograms
  • Cooling System: Convection Cooling
  • Operating Temperature: 0 to 40 degrees Celsius
  • Protection Class: IP 65
  • Encoder Type: Single Turn Optical 128 periods
  • Encoder Current Consumption: 60 milliamps
  • Encoder Voltage Supply: 7 to 12 Volts DC
  • Electrical Connector: 240-degrees rotatable
  • Shaft Type: Smooth with sealing ring
  • Holding Brake: Not Available
  • Installation Requirement: Qualified and Experienced Personnel.
