MSK030B-0900-NN-S1-UG1-NNNN

Original price $6,906.25 - Original price $6,906.25
Original price
$6,906.25
$6,906.25 - $6,906.25
Current price $6,906.25
In Stock, Ships Today
Request a quote

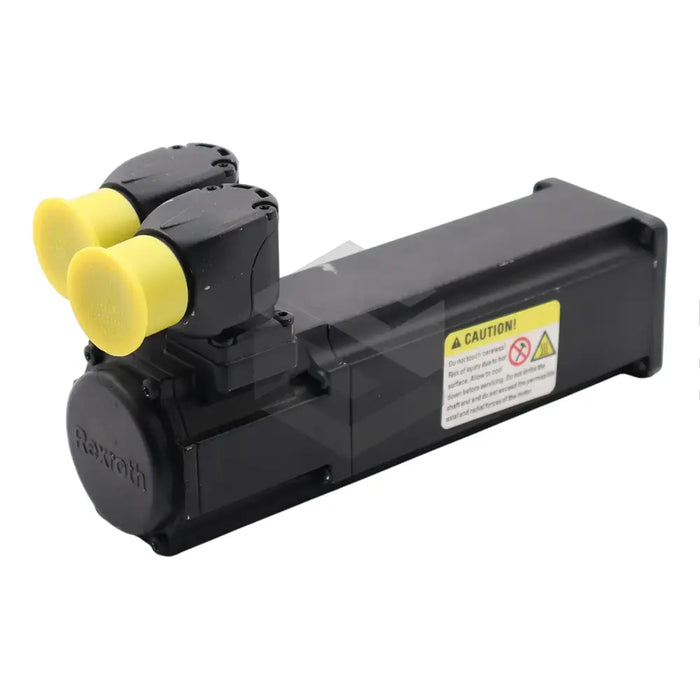

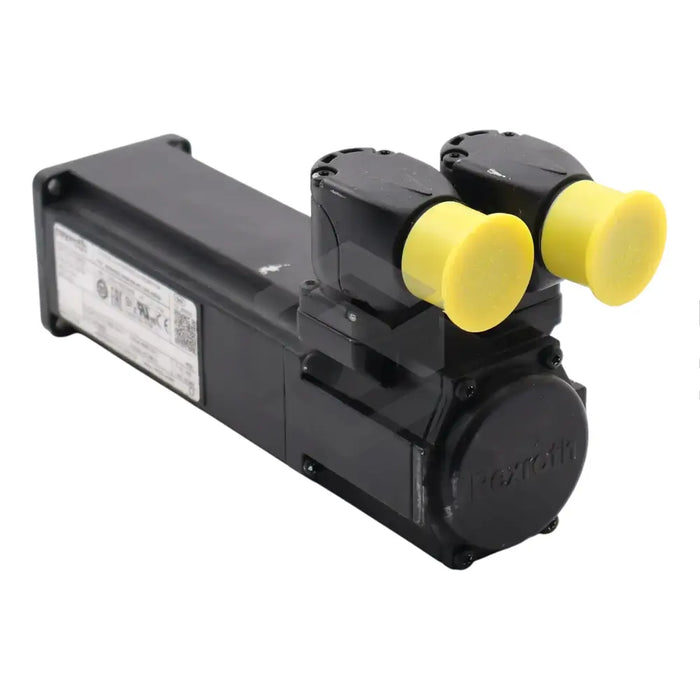

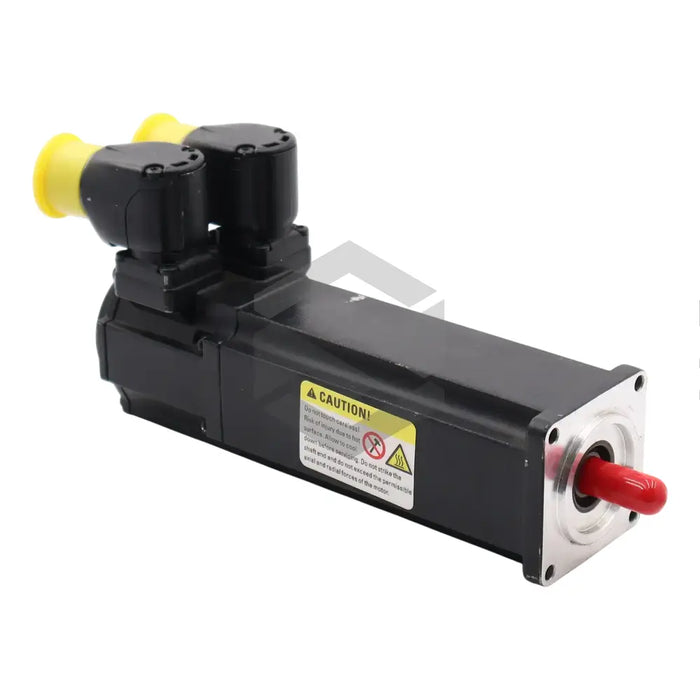

The Bosch Rexroth Indramat MSK030B-0900-NN-S1-UG1-NNNN is a sophisticated synchronous motor from the MSK collection, ideal for machine tools, robotics and printing machines. It operates at a maximum speed of 9000 RPM, with feedback capacity provided via an integrated, single turn optical encoder. The encoder's accuracy reaches ±120 angular seconds and can speed up to 12000 RPM. It has a voltage rating of 7-12 Volts DC with a peak draw of 60mA. Additionally, the motor houses a 1 Nm electrically releasing holding brake, running on a 24 Volts DC input at 0.31 Amps. The product also features a 240-degree rotatable electrical connector, a smooth, sealed motor shaft for ingress protection contributing to its IP65 rating, and cools naturally. Its maximum torque is 1.8Nm and continuous torque is 0.4Nm for 60 K and 100 K overtemperature scenarios. The motor operates at a sound pressure of less than 75dB and weighs 1.6 pounds.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MSK
  • Product Model: MSK030B-0900-NN-S1-UG1-NNNN
  • Type: Synchronous Motor
  • Maximum RPM: 9000
  • Encoder Type: Integrated Optical
  • Encoder Design: Single Turn
  • Encoder Accuracy: ±120 Angular Seconds
  • Encoder Max Speed: 12000 RPM
  • Encoder Voltage: 7 to 12 Volts DC
  • Encoder Current: 60 milliamps
  • Holding Brake: 1 Nm
  • Brake Type: Electrically Releasing
  • Brake Voltage: 24 Volts DC
  • Brake Current: 0.31 Amps
  • Brake Connection Time: 14 milliseconds
  • Brake Disconnection Time: 28 milliseconds
  • Connector Rotation: 240 Degrees
  • Shaft Type: Smooth
  • Protection Rating: IP65
  • Cooling Method: Natural Convection
  • Max Torque: 1.8 Nm
  • Continuous Motor Torque (60K and 100K): 0.4 Nm
  • Motor Winding Resistance: 7.2 Ohms
  • Motor Winding Inductivity: 8.1 millihenry
  • Sound Pressure Level: 75 dB
  • Shipping Weight: 1.6 pounds.
