series image of MSK040B-0450-NN-M2-UG1-NNNN

MSK040B-0450-NN-M2-UG1-NNNN

by Bosch Rexroth Indramat
$5,839.39 - $5,839.39
$5,839.39
$5,839.39 - $5,839.39
$5,839.39
In Stock, Ships Today

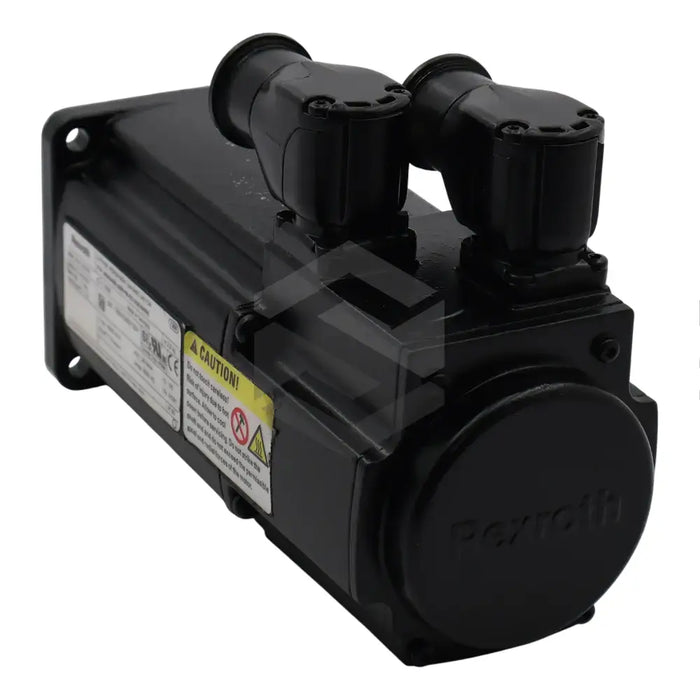

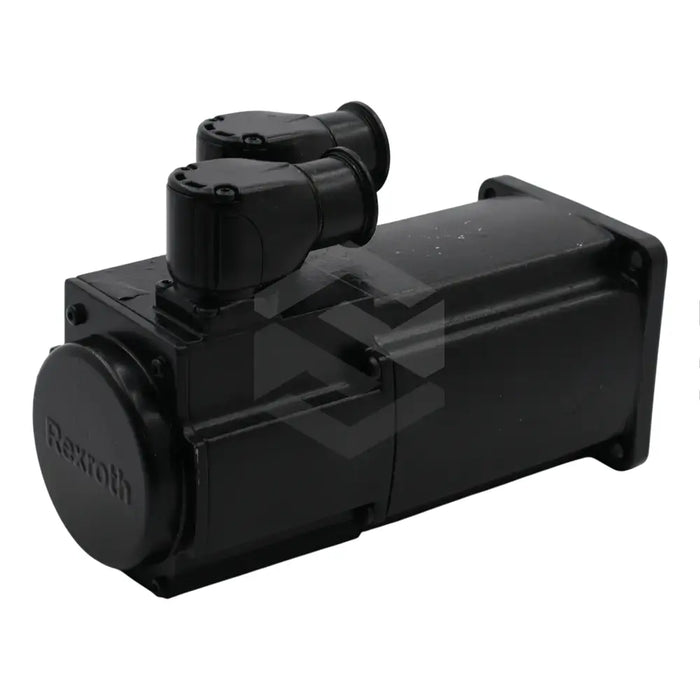

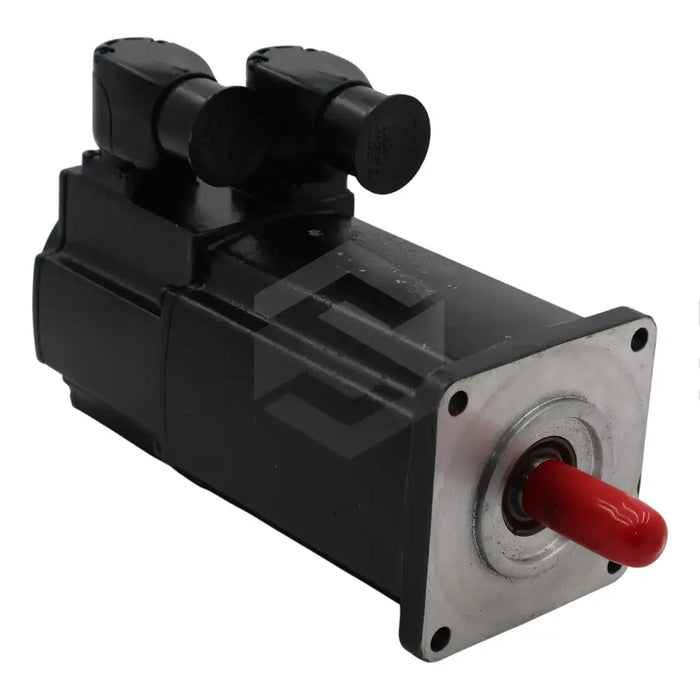

The MSK040B-0450-NN-M2-UG1-NNNN synchronous servomotor is a product from Bosch Rexroth Indramat, boasting an integrated 4Nm electrically released holding brake and an EnDat 2.1 optical encoder. The encoder has 2,048 increments, 4,096 distinguishable revolutions, and a system accuracy of +/-20 angular seconds. The motor is to be installed and operated in perfect condition and must not be connected to a direct mains single-phase or three-phase network. The device must be safeguarded against salt mist, condensation, ice, and direct sunlight while in transit or storage. Note that excessive temperature fluctuation or high-temperature conditions are unsuitable for the unit. The holding brake comes with 24V rated voltage and 0.5A rated current. The servomotor is constructed with insulation and has attained a thermal class of 155 as per EN 60034-1. Also, it is outfitted with IP 67-rated connectors, with a sound pressure level under 75 dBA.
30 Day Warranty
Technical Specifications
  • Product: MSK040B-0450-NN-M2-UG1-NNNN
  • Manufacturer: Bosch Rexroth Indramat
  • Protection Against Direct Light: Yes
  • Encoder Type: EnDat 2.1 multiturn absolute optical
  • Encoder Increments: 2,048
  • Connection: Not Direct Mains Supply on Single-Phase or Three-Phase Network
  • Installation: Manufacturer’s Accessories and Cables Only
  • Temperature Restriction: No Extreme Temperature and High Maximum Temperature
  • Holding Brake: 4Nm Electrically Released
  • Sound Pressure Level: Less than 75 dBA
  • Thermal Class: 155 (EN 60034-1)
  • Insulated Construction: Yes
  • Encoder Revolution: 4,096 distinguishable
  • Encoder Signal Periods: 2,048
  • Encoder System Accuracy: +/-20 Angular Seconds
  • Holding Brake Rated Voltage: 24V
  • Holding Brake Rated Current: 0.5A
  • Socket Orientation Change: Possible
  • Plug Removal: By Pulling Plug Not Cable
  • Cable Replacement: Requires Device Shutdown
  • Connectors Protection Rating: IP 67
  • Vertical Installation: No Fluid Accumulation on Output Shaft
  • Shaft Sealing Ring Material: Resistant to Chemicals and Oils
