product Main (Front Left) image of MSK040B-0450-NN-S1-UG0-NNNN

MSK040B-0450-NN-S1-UG0-NNNN

by Bosch Rexroth Indramat
$2,477.75 - $2,477.75
$2,477.75
$2,477.75 - $2,477.75
$2,477.75
In Stock, Ships Today

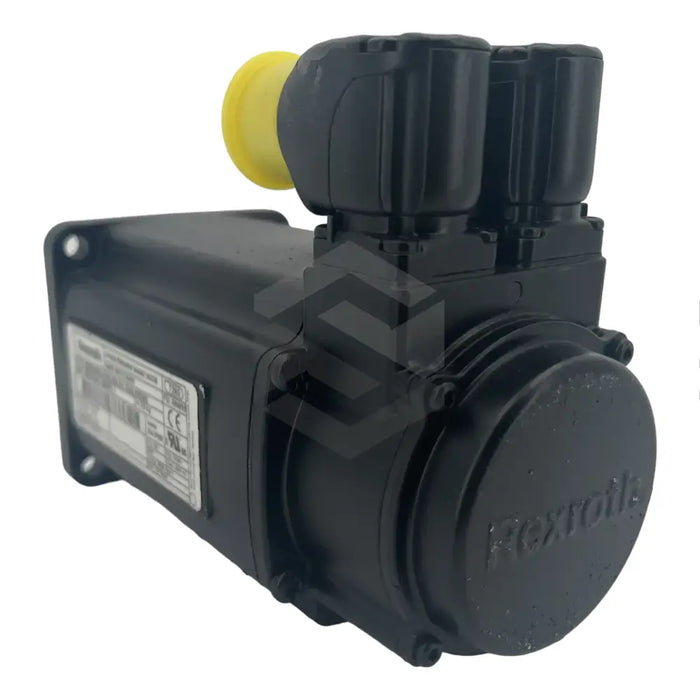

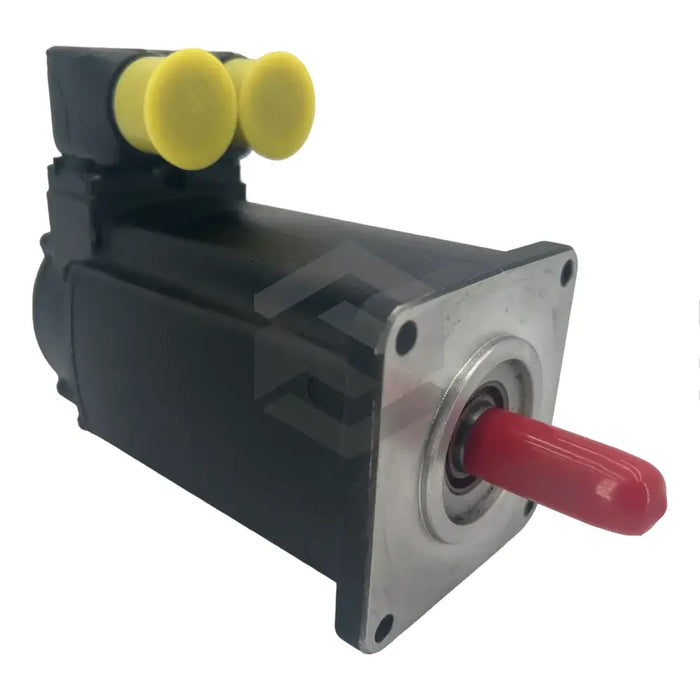

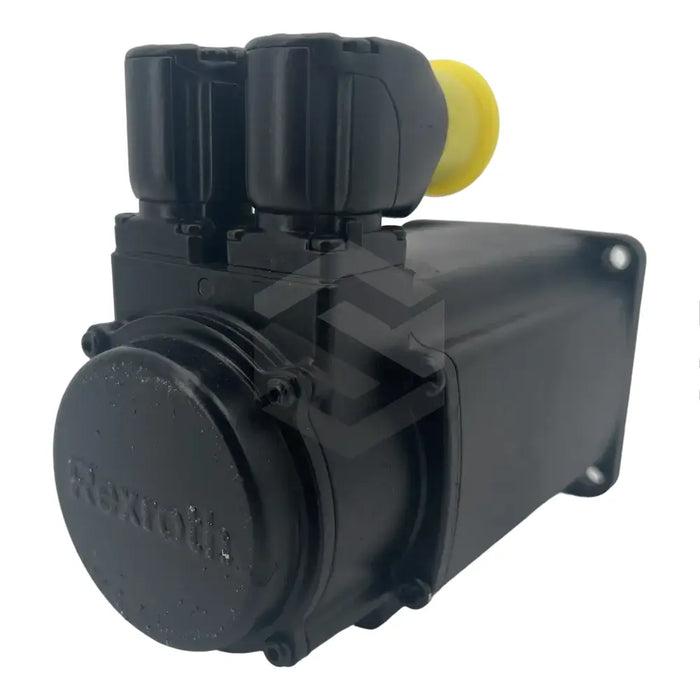

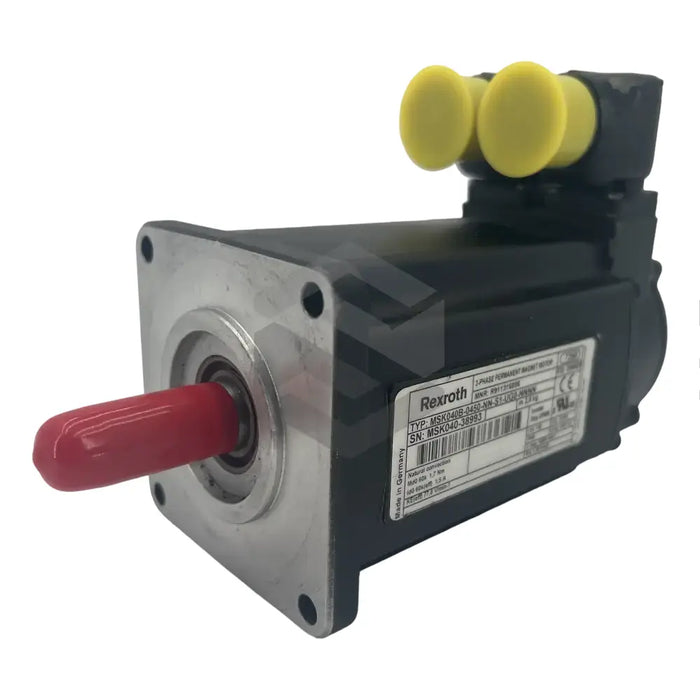

The MSK040B-0450-NN-S1-UG0-NNNN is a synchronous servo motor from Bosch Rexroth Indramat's IndraDyn S product line. Its cooling system operates on natural convection, with a frame size of 040 and a frame length of B. The motor features a rotatable electrical connection, standard plain shaft with seal, and an optical encoder with 128 increments. The motor does not include a holding brake. Key specifications include a winding code of 0450, component discharge capacity of 1.3 nF, and no holding brake. Weighing approximately 2,800 grams with a max torque of 5.1 Nm, it boasts a maximum current rating of 6 A, a thermal time constant of 40 minutes, and an operating speed of 6000 rpm. The motor operates optimally within an ambient temperature range of 0 to 40 degrees Celsius. Advanced protection measures safeguard the motor against water and dust intrusion.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: IndraDyn S units
  • Frame Size: 040
  • Frame Length: B
  • Heat Regulation Mechanism: Natural convection
  • Encoder: Optical, 128 increments, Singleturn Hiperface interface
  • Electrical Connection: Plug-type, rotatable up to 240 degrees
  • Shaft: Standard and plain, with sealing ring
  • Holding Brake: No
  • Winding Code: 0450
  • Component Discharge Capacity Rating: 1.3 nF
  • Weight: 2,800 g
  • Max. Torque: 5.1 Nm
  • Max Current: 6 A
  • Thermal Time Constant: 40 mins
  • Velocity Rating: 6000 rpm
  • Rotor Moment of Inertia: 0.00010 Kgm2
  • Surrounding Air Temperature: 0-40 oC
  • Sound Pressure Level: <75 dB
  • Winding Resistance at 20 oC: 14.7 Ohm
  • Torque Constant: 1.26 Nm/A
  • Voltage Constant: 77.8 V/min-1
  • Thermal Class: 155
  • Degree of Protection: IP 65
  • Pole Pairs: 4
  • Winding Inductivity: 64.7 mH.
