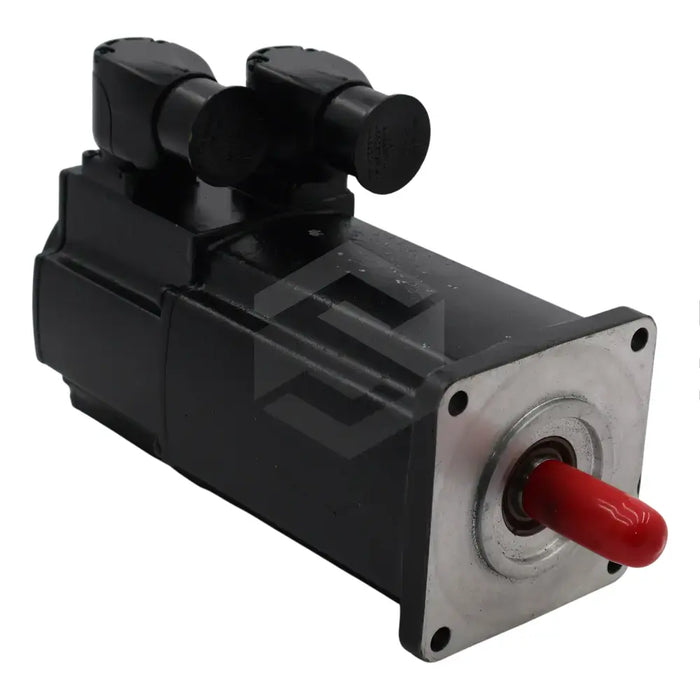

C image of MSK040B-0450-NN-S3-UG1-NNNN | Front Right

MSK040B-0450-NN-S3-UG1-NNNN

by Bosch Rexroth Indramat
$2,503.25 - $10,440.00
$2,503.25
$2,503.25 - $10,440.00
$2,503.25

In Stock, Ships 1 - 3 Days

The MSK040B-0450-NN-S3-UG1-NNNN, produced by Bosch Rexroth Indramat, is a synchronous servo motor designed for various applications including robotics and food-processing machinery. Key attributes of this versatile motor include an IP65 protection rating, 7000 RPM maximum speed, and 12.5 Nm maximum torque. The motor operates optimally at temperatures of 0 to 40 degrees Celsius and creates a sound pressure of less than 75 dB during operation. Cooling is achieved through natural convection, and the housing is thermally classified as 155 according to EN 60034-1. The motor features a capacitive encoder with 16 signal periods, supporting the Hiperface protocol. Its power connector is 240-degrees rotatable. The maximum current for the MSK040B-0450-NN-S3-UG1-NNNN motor is 6 Amps and it weighs 2.8 kilograms. Its holding brake has a 4 Nm rating and 24 Volts rating, rated for 0.5 Amps. The motor shaft is smooth, complemented by a sealing ring to shield the bearings from contaminants. It is vital that this motor and its associated control devices are operated by qualified personnel.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Synchronous Servo Motor

Motor Type Code

MSK040B-0450-NN-S3-UG1-NNNN

Features

IP65 rating, Encoder systems, 7000 RPM maximum speed, 12.5 Nm maximum torque

Applications

Robotics, Metal forming machines, Machine tools, Food-processing machines

Frame Size

040

Frame Length

B

Motor Winding Code

0450

Motor Pole Pairs

4

Maximum Speed

6000 RPM

Noise Level

Below 75 dB

Cooling System

Natural convection

Operation Temperature

0 to 40 degrees Celsius

Housing Protection Class

IP65

Thermal Class

155 (EN 60034-1)

Motor Encoder

Capacitive encoder with 16 signal periods, Hiperface protocol

Power Connector

240-degrees rotatable

Continuous Torque

1.7 Nm

Maximum Torque

5.1 Nm

Continuous Current

1.5 Amps

Maximum Current

6 Amps

Weight

2.8 kilograms

Motor Brake

4 Nm and 24 Volts DC, 0.5 Amps rated current, 25 milliseconds maximum connection time, 35 milliseconds maximum disconnection time

Motor Shaft

Smooth with sealing ring.
