product Main (Front Left) image of MSK040B-0600-NN-M1-UG0-NNNN

MSK040B-0600-NN-M1-UG0-NNNN

by Bosch Rexroth Indramat
$1,290.00 - $1,290.00
$1,290.00
$1,290.00 - $1,290.00
$1,290.00
In Stock, Ships Today

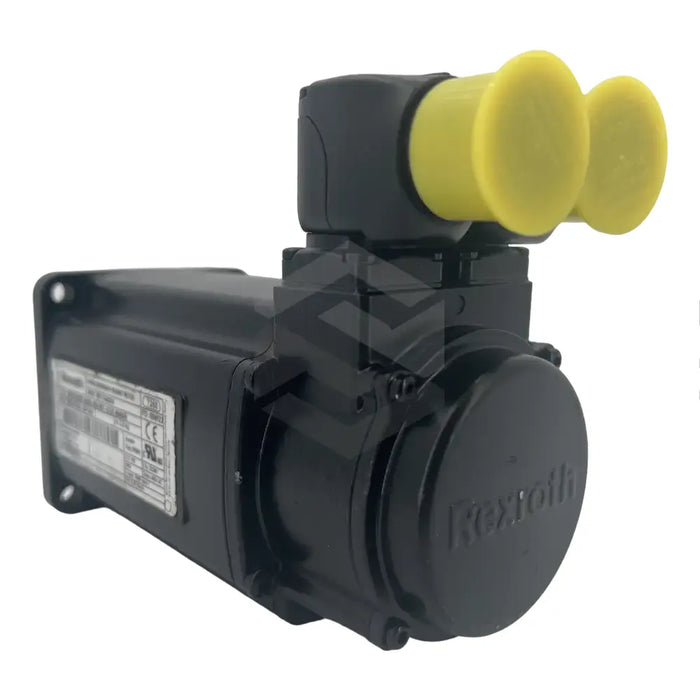

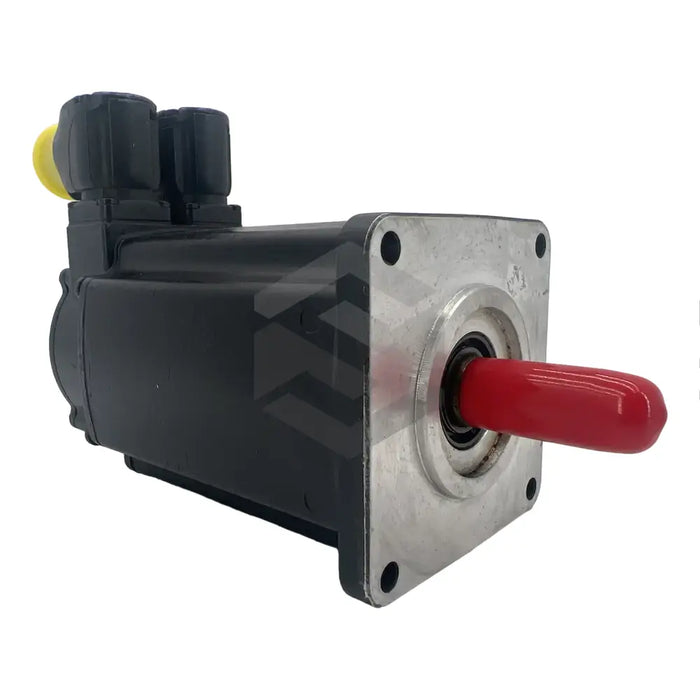

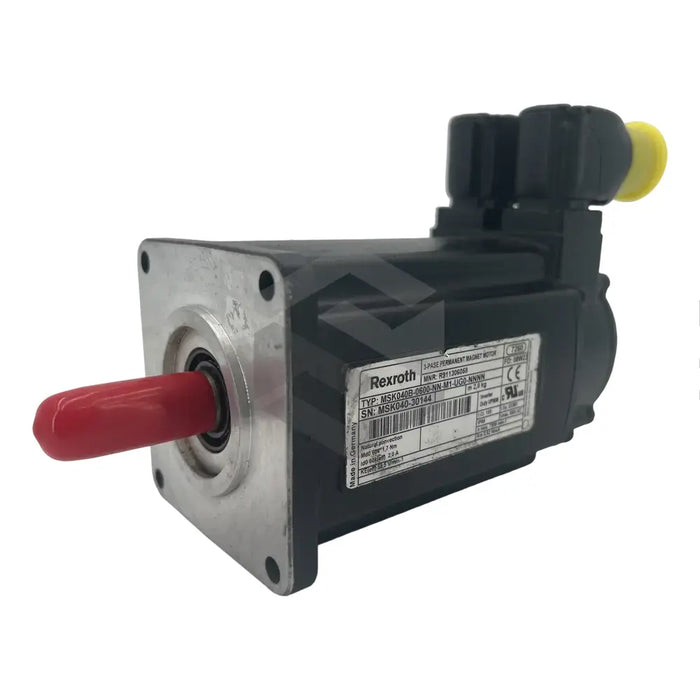

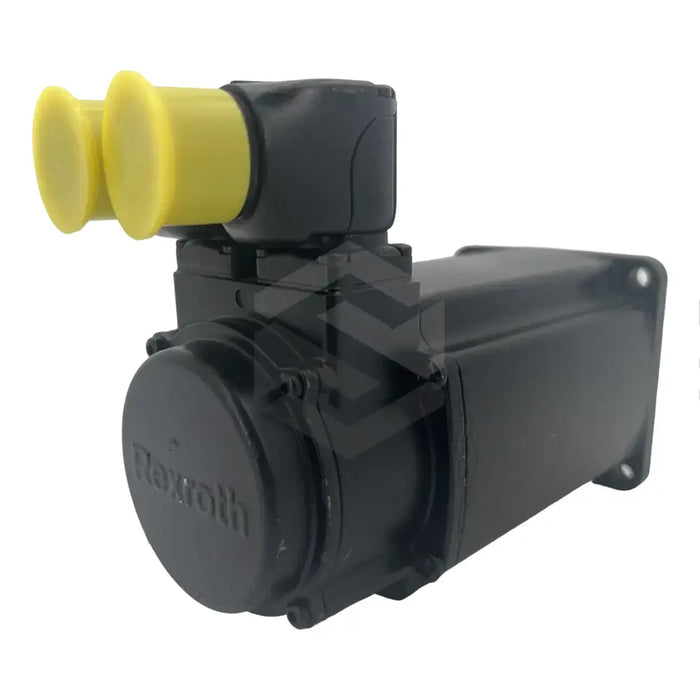

The Bosch Rexroth Indramat MSK040B-0600-NN-M1-UG0-NNNN is an MSK synchronous motor featuring a frame size of 040, frame length of B, and a motor winding code of 0600. It's equipped with an integral multiturn optical encoder with 128 signal periods and a 240-degree rotatable power/feedback connector. The motor's smooth shaft includes a sealing ring to shield the bearings from contaminants - this seal must be periodically inspected and replaced as necessary. The motor, not featuring a holding brake, has a maximum speed of 7500 RPM. It produces a sound pressure not exceeding 75 dB, achieves a maximum torque of 5.1 Nm, and a maximum current of 8 Amps. Its thermal time constant is 13 minutes. It has an IP65 protection rating and should be transported and stored, preferably in original packaging, within a temperature range of -20 to 80 and -20 to 60 degrees Celsius, respectively.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: MSK Synchronous Motor
  • Motor Frame Size: 040
  • Motor Frame Length: B
  • Motor Winding Code: 0600
  • Encoder: Integrated Multiturn Optical Encoder
  • Power/Feedback Connector: 240-Degrees Rotatable
  • Motor Shaft: Smooth with Sealing Ring
  • Holding Brake: Not Available
  • Transport Temperature Range: -20 to 80 Degrees Celsius
  • Storage Conditions: Dry, Dust-free, Free from Vibrations, Protected against Light
  • Storage Temperature Range: -20 to 60 Degrees Celsius
  • Maximum Storage Duration: 60 Months (requires replacement of bearings and encoder afterwards)
  • Rated Maximum Speed: 7500 RPM
  • Protection Rating: IP65 (safe from dust and low-pressure water jets)
  • Sound Pressure Level: Does Not Exceed 75 dB
  • Maximum Motor Torque: 5.1 Nm
  • Maximum Motor Current: 8 Amps
  • Thermal Time Constant: 13 Minutes
