series image of MSK040B-0600-NN-M1-UG1-NSNN

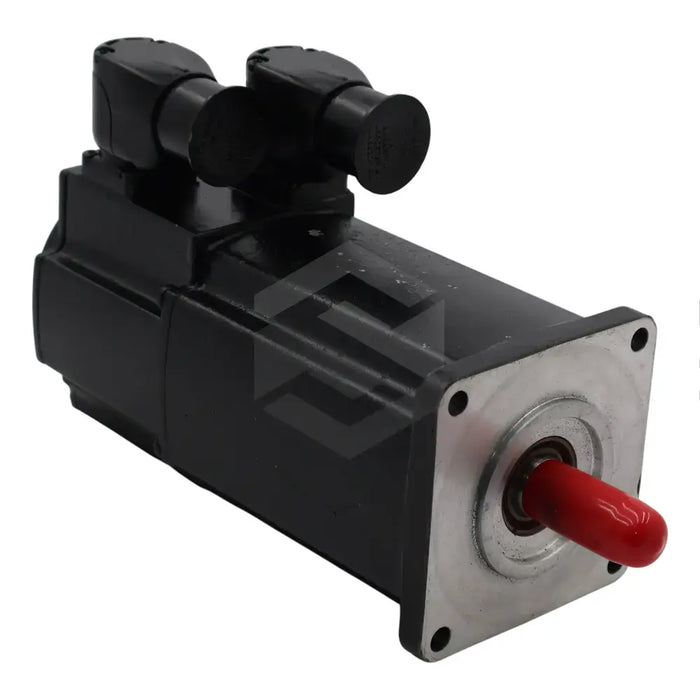

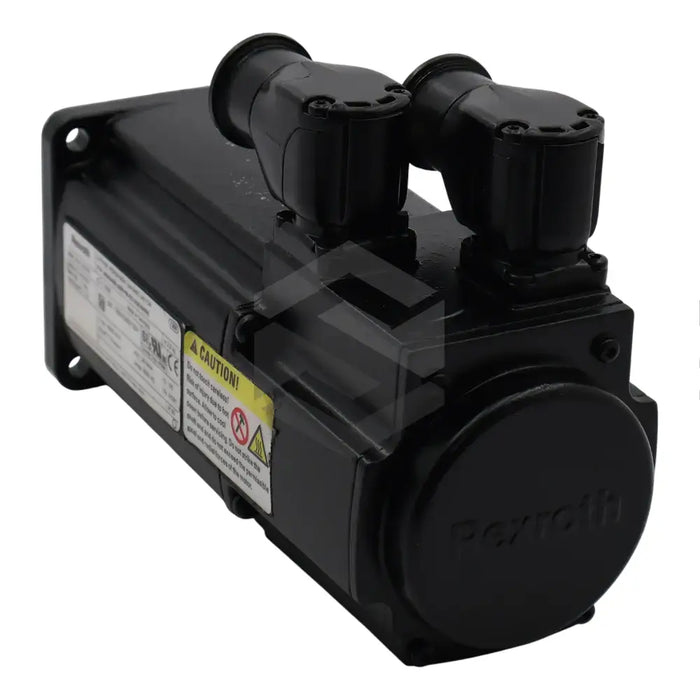

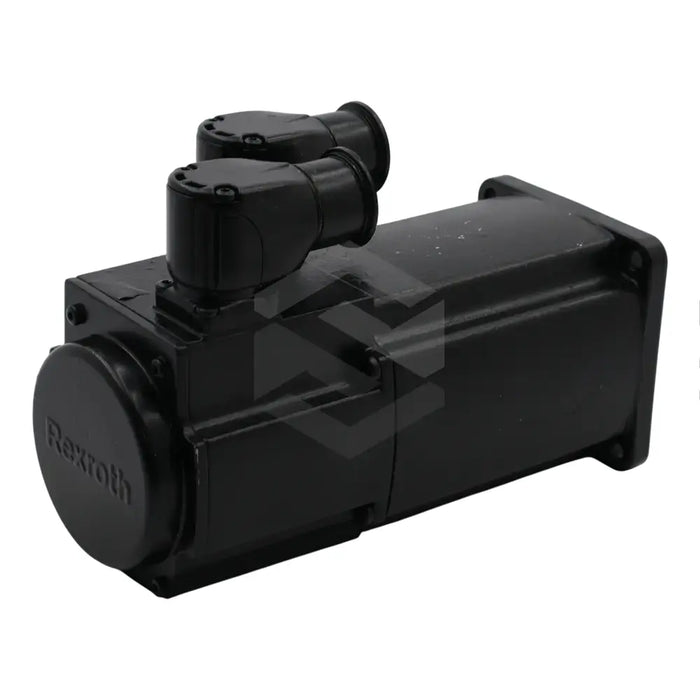

MSK040B-0600-NN-M1-UG1-NSNN

by Bosch Rexroth Indramat
Request a quote
The MSK040B-0600-NN-M1-UG1-NSNN servo motor from Bosch Rexroth Indramat integrates a high-performance electrically releasing holding brake with 4 Nm torque, and a quick 35 ms disconnection and 25 ms connection time. It also has an embedded optical encoder supporting 128 signal periods and Hiperface, along with a swift 9000 RPM speed. Its connector can rotate 240 degrees in either direction, adding flexibility. This motor utilizes natural convection for cooling and has a resilient, smooth shaft featuring a sealing ring. The motor comes with an IP65 protection class, ensuring outstanding dust and water resistance. It weighs 2.8 kg and operates at a maximum speed of 7500 RPM, with torque ratings of 1.7 Nm - 5.1 Nm (60 K condition) or 1.9 Nm - 5.1 Nm (100K condition). The motor also includes four pole pairs and 35.4 mH winding inductance.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: MSK040B-0600-NN-M1-UG1-NSNN
  • Product Type: Servo Motor
  • Holding Brake Type: Electrically releasing
  • Holding Brake Torque: 4 Nm
  • Holding Brake Voltage: 24 Volts DC
  • Holding Brake Current: 0.5 Amps
  • Optical Encoder Signal Periods: 128
  • Optical Encoder Support: Hiperface
  • Optical Encoder Design: Multiturn absolute
  • Encoder Revolutions: 4096 distinguishable revolutions
  • Encoder Accuracy: 120 angular seconds
  • Encoder Max Speed: 9000 RPM
  • Encoder Max Current Consumption: 60 milliamps
  • Encoder Supply Voltage: 7 to 12 Volts
  • Shaft Design: Smooth shaft with sealing ring
  • Cooling Method: Natural convection
  • Weight: 2.8 kilograms
  • Protection Class: IP65
  • Rated Max Speed: 7500 RPM
  • Continuous Torque (60K Condition): 1.7 Nm
  • Peak Torque (60K Condition): 5.1 Nm
  • Continuous Torque (100K Condition): 1.9 Nm
  • Peak Torque (100K Condition): 5.1 Nm
  • Pole Pairs: 4
  • Winding Inductance: 35.4 millihenry.
