MSK040B-0600-NN-M1-UP0-NSNN

Original price $5,998.00 - Original price $5,998.00
Original price
$5,998.00
$5,998.00 - $5,998.00
Current price $5,998.00
Available, Shipping Varies
Request a quote

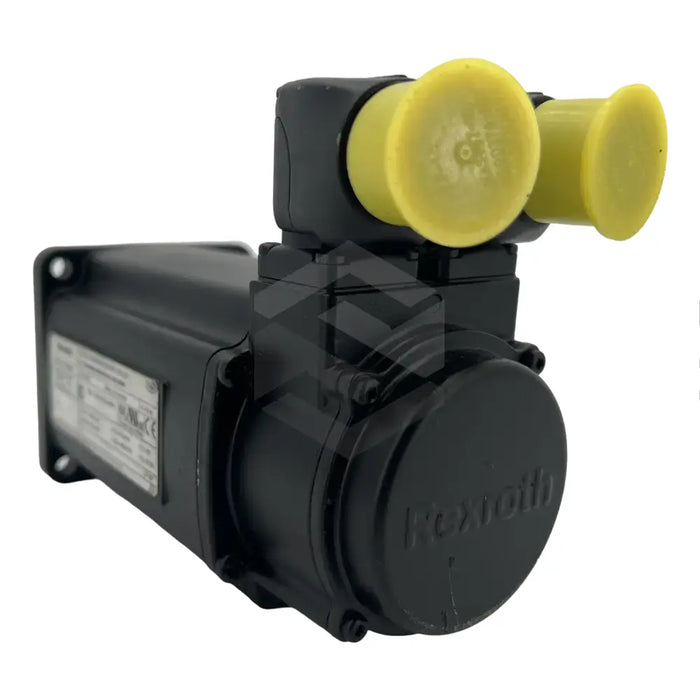

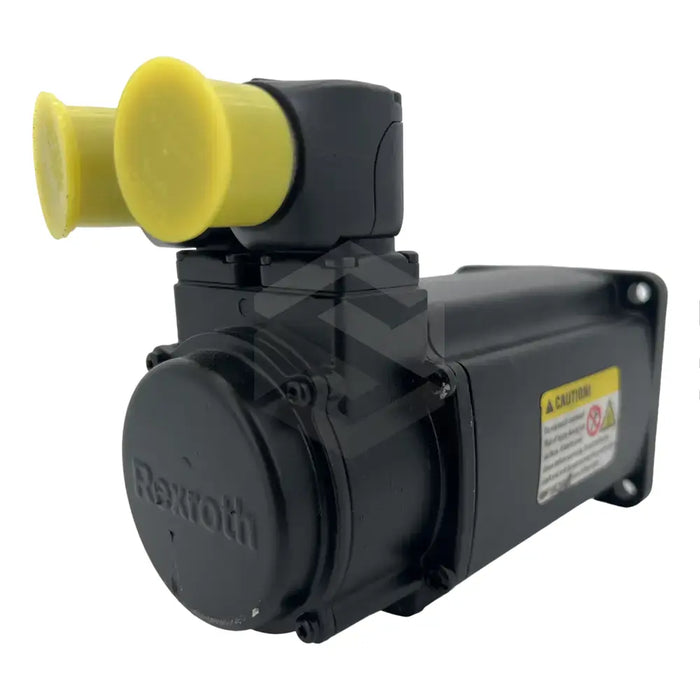

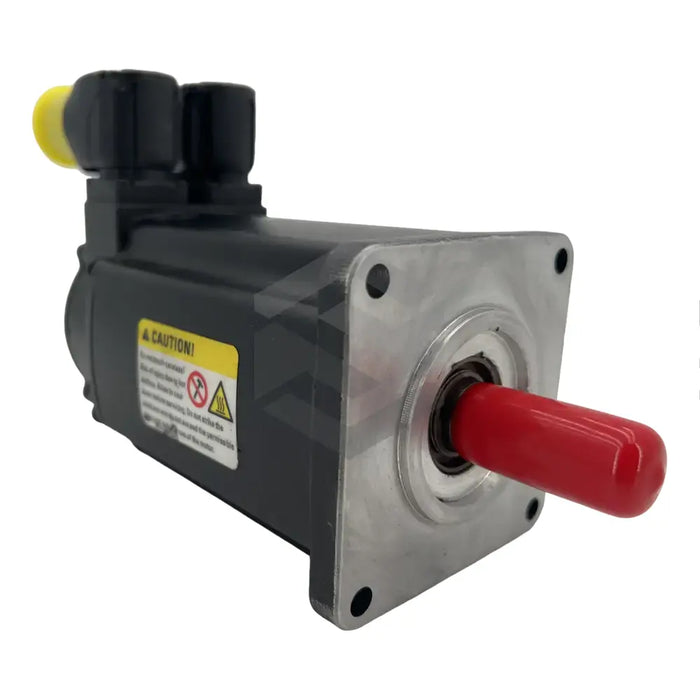

The MSK040B-0600-NN-M1-UP0-NSNN, an advanced synchronous servo motor, is manufactured by the renowned Bosch Rexroth Indramat. This industrial motor, part of the MSK series, achieves a continuous torque of 1.7Nm at a 60K increase in housing temperature, while drawing just 2.0A of continuous current. It operates with a 3-phase AC 400-480V power source and utilizes a maximum current of 8.0A to generate top torque of 5.1Nm. The motor features a winding inductivity of 35.400mH and a winding resistance of 8.40 Ohm. Equipped with an optical encoder offering 128 increments, the motor enables precise positioning of the output shaft. It offers an electrically-released holding brake, generating 4Nm torque. Weighing 2.8kg, this motor offers IP65-rated protection against dust and water, in accordance with IEC 600529, and maintains the insulation class of 155, according to DIN EN 60024-1. The operating environment should maintain a temperature of 0°C to +40°C with a sound pressure level under 75 db for optimal performance.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product: Synchronous Servo Motor
  • Product Model: MSK040B-0600-NN-M1-UP0-NSNN
  • Series: MSK
  • Continuous Torque: 1.7 Nm
  • Continuous Current: 2.0 A
  • Power Source: 3-phase AC 400 - 480 V
  • Maximum Current: 8.0 A
  • Maximum Torque: 5.1 Nm
  • Winding Inductivity: 35.400 mH
  • Winding Resistance: 8.40 W
  • Temperature Range: 0°C to +40°C
  • Sound Pressure Level: Less than 75 db
  • Encoder Type: Optical
  • Increments: 128
  • Shaft Design: Design A with radial shaft sealing ring
  • Holding Brake: 24VDC Electrically-Released
  • Holding Brake Torque: 4 Nm
  • Design Standard: DIN EN 60079 ff
  • Weight: 2.8 kg
  • Protection Class: IP65 (IEC 600529)
  • Insulation Class: 155 (DIN EN 60024-1)
