series image of MSK040B-0600-NN-S2-UP1-NNNN

MSK040B-0600-NN-S2-UP1-NNNN

by Bosch Rexroth Indramat
$12,348.00 - $12,348.00
$12,348.00
$12,348.00 - $12,348.00
$12,348.00
In Stock, Ships Today

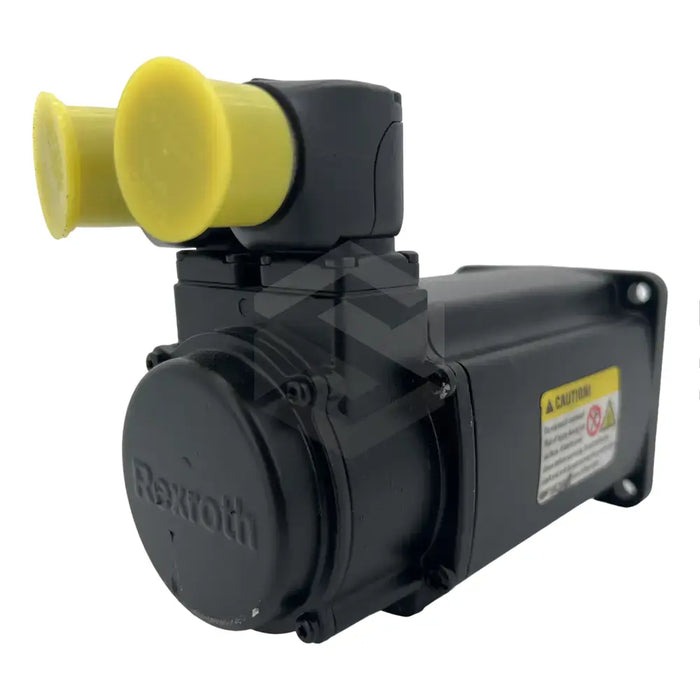

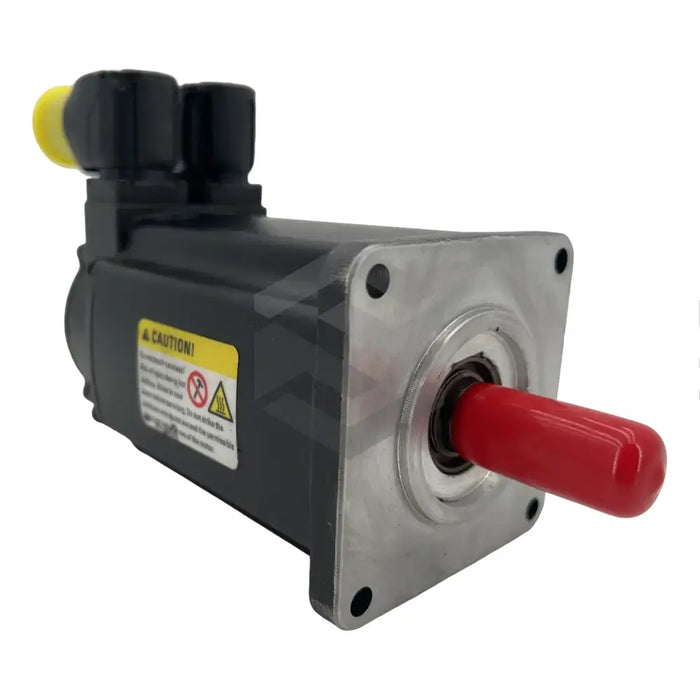

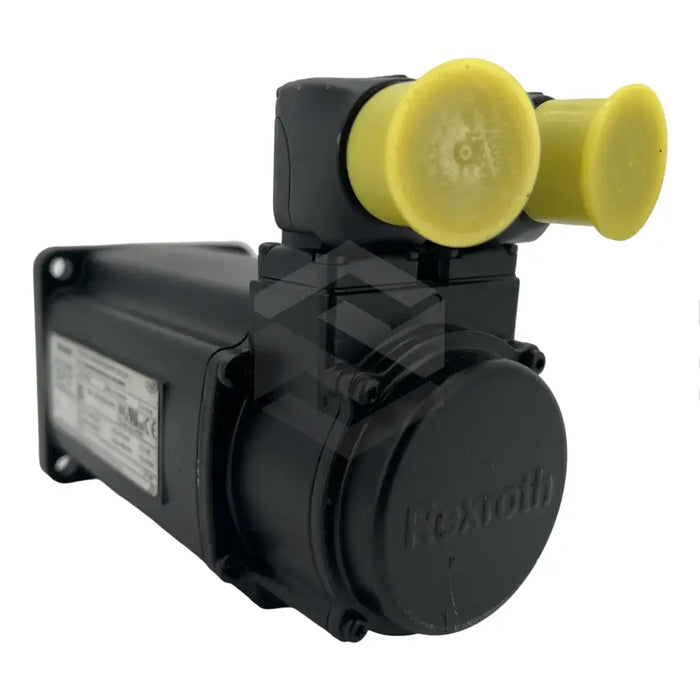

The Bosch Rexroth Indramat MSK040B-0600-NN-S2-UP1-NNNN servomotor is essential for various applications including robotics, metal-forming machines, food-processing machines and paper-processing machines. The motor offers a maximum velocity of 7500 RPM, and weighs 2.8 kilograms. Its protective housing, classified as IP65, safeguards it against dust and water jets from any direction. The motor operates optimally between 0 to 40 degrees Celsius, cools via natural convection, and produces a maximum sound pressure level of 75 dB during normal operation. The motor includes an integrated single-turn optical encoder providing feedback on shaft position and speed, a power feedback connector with 240 degrees of rotation, a main rotor shaft with a keyway and a sealing ring. For effective application, additional sensors and actuators may be required while the drive controller should be programmed before startup. Only Bosch-approved accessories should be used and safety instructions adhered to.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: MSK040B-0600-NN-S2-UP1-NNNN
  • Product Type: Synchronous Servomotor
  • Application: Robotics, Metal-forming machines, Food-processing machines, Paper-processing machines
  • Accessories Compliance: Specified by Bosch
  • Motor Configuration: Must be programmed prior to startup
  • Maximum Velocity: 7500 RPM
  • Motor Mass: 2.8 kilograms
  • Protection Class: IP65
  • Cooling Method: Natural convection
  • Ambient Temperature for Operation: 0 to 40 degrees Celsius
  • Thermal Class: 155 (EN 60034-1)
  • Maximum Sound Pressure Level: 75 dB
  • Shaft Position and Speed Feedback: Integrated single-turn optical encoder with 2048 signal periods
  • Power/Feedback Connector: Can be rotated 240 degrees
  • Main Rotor Shaft Features: Keyway as per DIN 6885-1 and sealing ring
  • Holding Brake: Electrically releasing with 4 Nm holding torque
