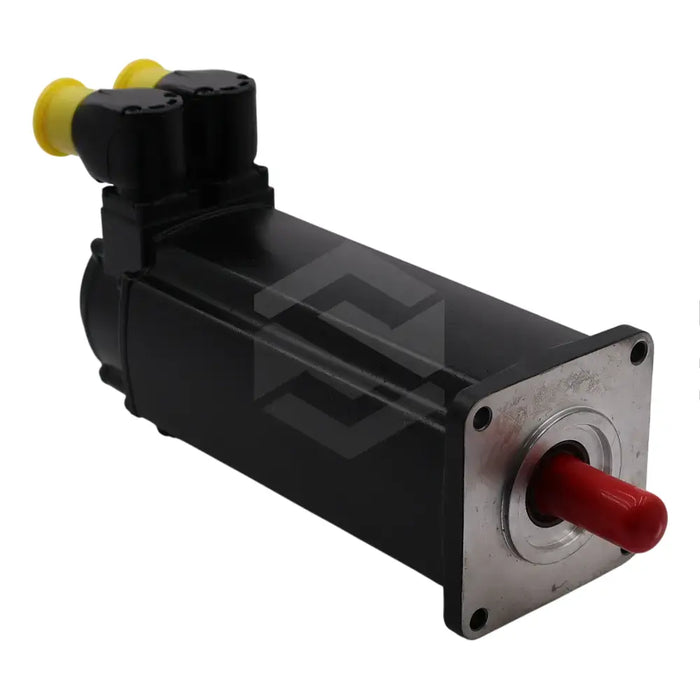

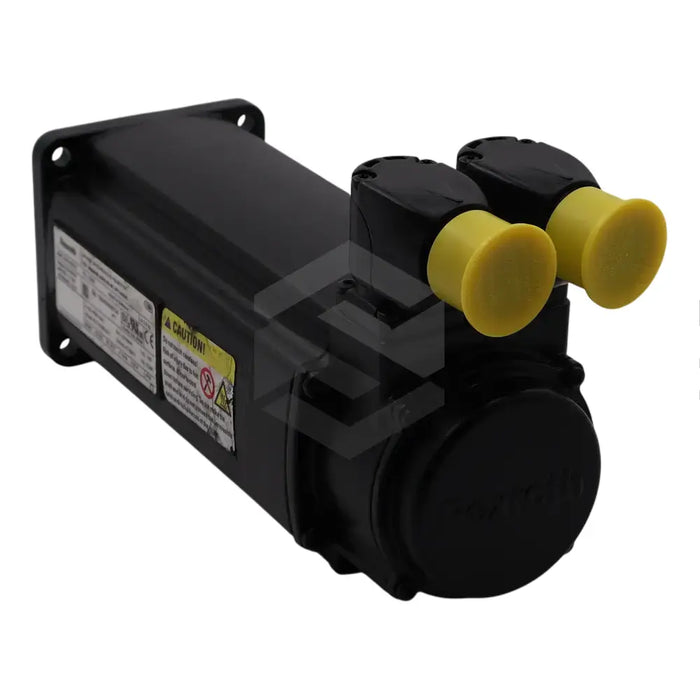

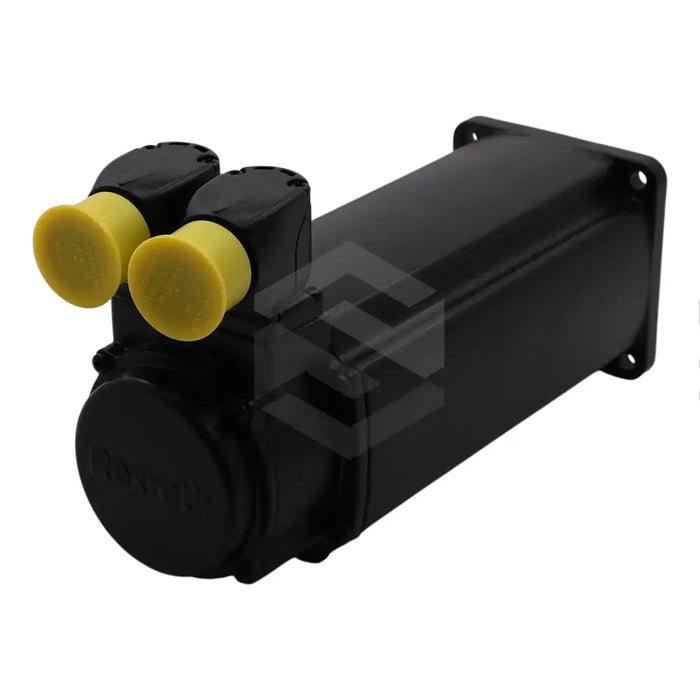

S image of MSK040C-0450-NN-M1-UP0-NSNN

MSK040C-0450-NN-M1-UP0-NSNN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MSK040C-0450-NN-M1-UP0-NSNN is a high-quality servo motor designed by Bosch Rexroth Indramat, part of the renowned IndraDyn S series. The unit utilizes an efficient heat-regulating mechanism aided by natural convection, paired with an optical encoder using 128 increments and multiturn-absolute Hiperface. Notable features include a plug-type electrical connection that can be rotated 240 degrees, a keyed shaft, and a sealing ring. The motor exhibits a winding resistance of 8.4 Ohm and offers 0.92 Nm/A of torque and a 58.5 V/min-1 voltage constant, rated specifically at 20 degrees Celsius. The device adheres to a DIN EN 60079 ff for cluster II, 3D, and 3G categories. It weighs about 2.8 Kg and can reach a maximum speed of 6000 RPM, delivering up to 5.1 Nm of torque. Designed to operate efficiently between temperatures of 0 and 40 degrees, it maintains a low sound pressure level under 75 dB.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Servo Motor

Series

IndraDyn S

Heat Regulation

Natural Convection

Encoder Type

Optical

Encoder Increments

128

Connection Type

Plug-Type (Rotatable up to 240 degrees)

Shaft Type

Keyed with Sealing Ring

Winding Code

0450

Design Compliance

DIN EN 60079 ff (cluster II, 3D, and 3G categories)

Winding Resistance

8.4 Ohm

Torque

0.92 Nm/A

Voltage Constant

58.5 V/min-1 at 20 degrees Celsius

Thermal Class

155 (EN 60034-1)

Protection Rating

IP 65 (EN 60034-5)

Pole Pairs

4

Winding Inductance

35.4 mH

Discharge Capacity

1.5 nF

Weight

2.8 Kg

Maximum Torque

5.1 Nm

Maximum Current

8.0 A

Thermal Time Constant

16 Minutes

Maximum Speed

6000 Revolutions Per Minute

Moment of Inertia

0.00010 kgm2

Ambient Air Temperature

0 to 40 degrees Celsius

Sound Pressure Level

Less than 75 dB

Brake

No Electrically Activated Holding Brake
