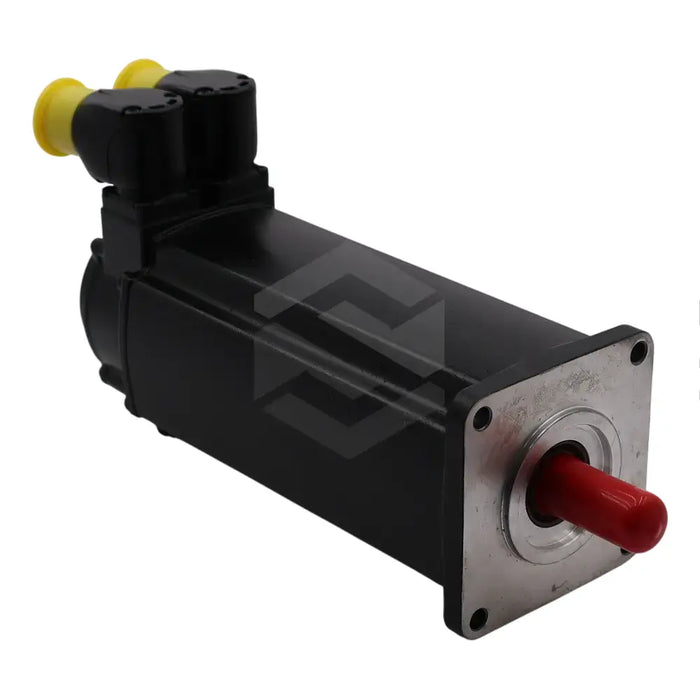

C image of MSK040C-0450-NN-M1-UP1-NSNN | Front Right

MSK040C-0450-NN-M1-UP1-NSNN

by Bosch Rexroth Indramat
$11,040.00 - $11,040.00
$11,040.00
$11,040.00 - $11,040.00
$11,040.00

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MSK040C-0450-NN-M1-UP1-NSNN is a high-dynamic servo motor from the IndraDyn S series, known for its high dynamic levels, exact measurements, modular structure, and high torque density. These motors, typically used in machine tools, robotics, and paper processing equipment, often serve as servo drives or main rotary motors. The MSK040C-0450-NN-M1-UP1-NSNN uses a 128-step optical encoder and a multiturn-absolute Hiperface for enhanced performance and includes a 4 Nm-torque, 0.5 Amperes-rated current holding brake. With key specifications including a winding resistance of 8.4 Ohm, torque of 0.92 Nm/A, and voltage constant of 58.5 V/min-1 at 20 °C, the motor also has a maximum rotational speed of 6000 RPM and a moment of inertia of 0.00010 kgm2. Its ambient running temperature range spans 0-40 °C. Its compliance with EN 60034-1 thermal class 155 and it’s IP 65 rating attest to its durability, and it operates quietly at under 75 dB sound pressure level.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

IndraDyn S series

Motor Type

High-dynamic Servo Motor

Heat Regulation Mechanism

Natural Convection

Encoders Used

128-step Optical Encoder with Multiturn-absolute Hiperface

Holding Brake Torque

4 Nm

Rated Current

0.5 Amperes

Applications

Machine Tools, Robotics, Paper Processing Equipment

Compliance

DIN EN 60079 ff for cluster II, 3D, 3G

Motor's Winding Resistance at 20 degrees Celsius

8.4 Ohm

Motor's Torque at 20 degrees Celsius

0.92 Nm/A

Motor's Voltage Constant at 20 degrees Celsius

58.5 V/min-1

Electrical Connection

240-degree Rotating Plug-type

Additional Parts Included

Shaft, Sealing Ring with Keyway

Winding Code

0450

Compliance Standards

EN 60034-1 Thermal class 155, IP 65 Rating

Maximum Rotational Speed

6000 RPM

Moment of Inertia

0.00010 kgm2

Permissible Ambient Air Temperature Range

0 degrees to 40 degrees Celsius

Sound Pressure Level

Less than 75 dB.
