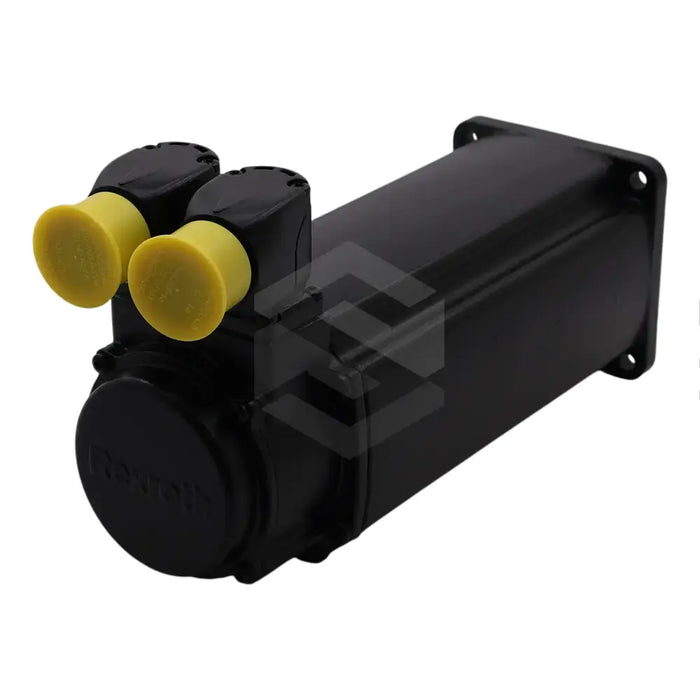

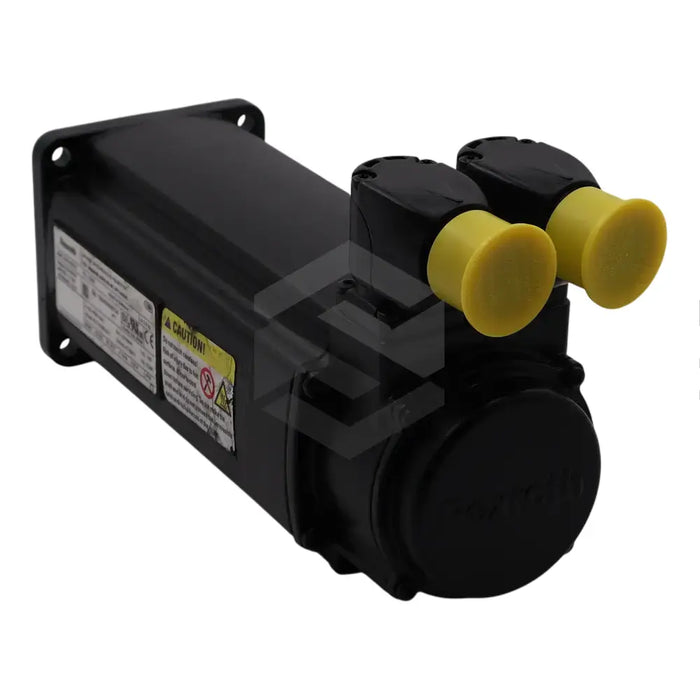

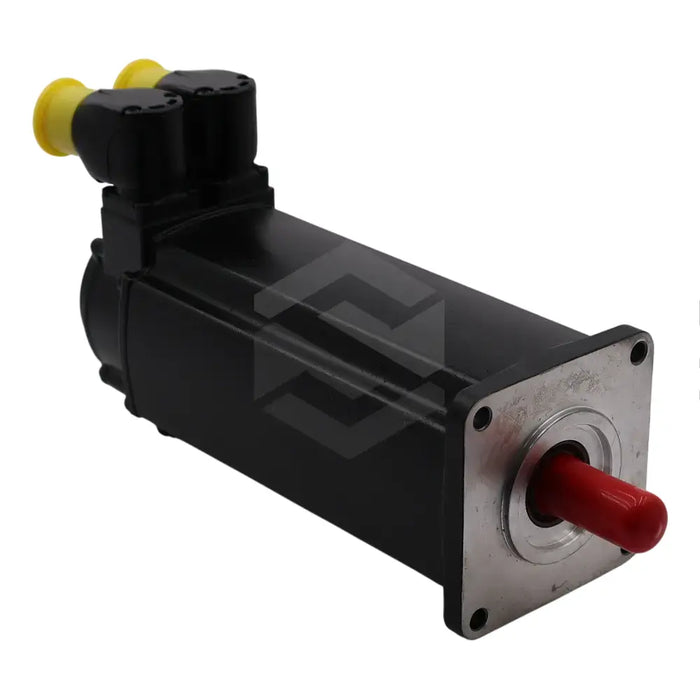

series image of MSK040C-0600-NN-M3-UP1-NNNN

MSK040C-0600-NN-M3-UP1-NNNN

by Bosch Rexroth Indramat
$11,022.80 - $11,022.80
$11,022.80
$11,022.80 - $11,022.80
$11,022.80
In Stock, Ships Today
The MSK040C-0600-NN-M3-UP1-NNNN, a product of industry-leading brand Bosch Rexroth Indramat, is part of the MSK range of adaptable servo motors and part of the Rexroth IndraDyn S drive system. The motor offers a maximum torque of 8.1 Nm and a peak velocity of 7,500 rpm, assisted by a current up to 12.4A. Moreover, it provides continuous torque and current at 60k standstill, 2.7 Nm and 3.1A respectively. The device runs on four pole pairs and houses a rotor with a moment of inertia of 0.00014 kgm2. The built-in capacitive multi-turn absolute encoder, with 16 signal periods and a system accuracy of ±520 angular seconds, operates between 7V and 12V. The model employs a DIN 6885-1 compliant shaft with a keyway and sealing ring, along with a 4 Nm torque electrical-releasing holding brake. Cloaked in protective black varnish (RAL9005), the unit is safeguarded against diluted acids, lyes, seawater, and mineral oil, providing limited resistance to organic solvents. Designed to IP 65 specifications, it is fully dust-proof and water-jet resistant.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MSK Servo Motors
  • Maximum Torque: 8.1 Nm
  • Maximum Velocity: 7,500 rpm
  • Maximum Current: 12.4A
  • Continuous Torque at Standstill 60k: 2.7 Nm
  • Continuous Current at Standstill 60k: 3.1A
  • Pole Pairs: 4
  • Rotor Moment of Inertia: 0.00014 kgm2
  • Encoder: Capacitive, Multiturn Absolute
  • Encoder Interface: Hiperface
  • Encoder Signal Periods: 16
  • Encoder System Accuracy: ±520 angular seconds
  • Encoder Supply Voltage: 7V - 12V
  • Shaft Design: With keyway and shaft sealing ring (DIN 6885-1)
  • Holding Brake: Electrically releasing, 4 Nm torque
  • Paint Coat: Black varnish (RAL9005)
  • Ingress Protection rating: IP 65
