MSK043C-0600-NN-M3-UG0-NNNN

Original price $13,046.17 - Original price $13,046.17
Original price
$13,046.17
$13,046.17 - $13,046.17
Current price $13,046.17
In Stock, Ships 1 - 2 Days
Request a quote

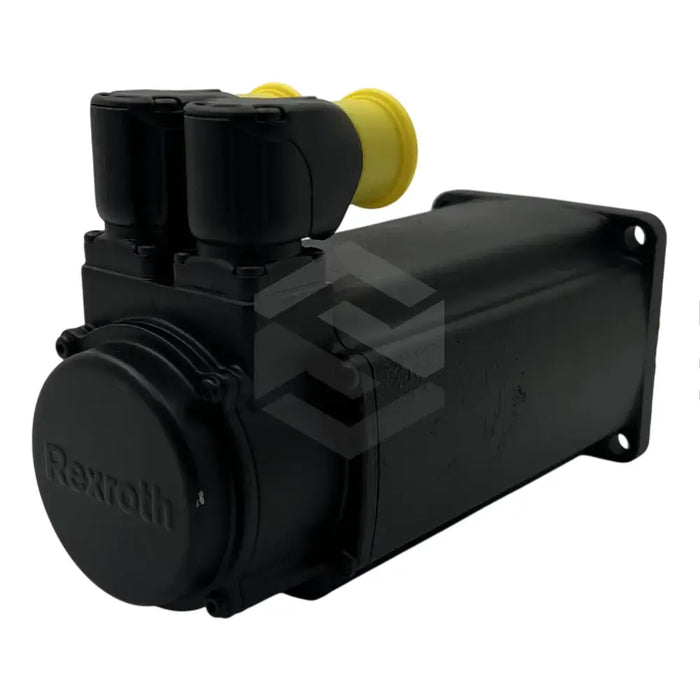

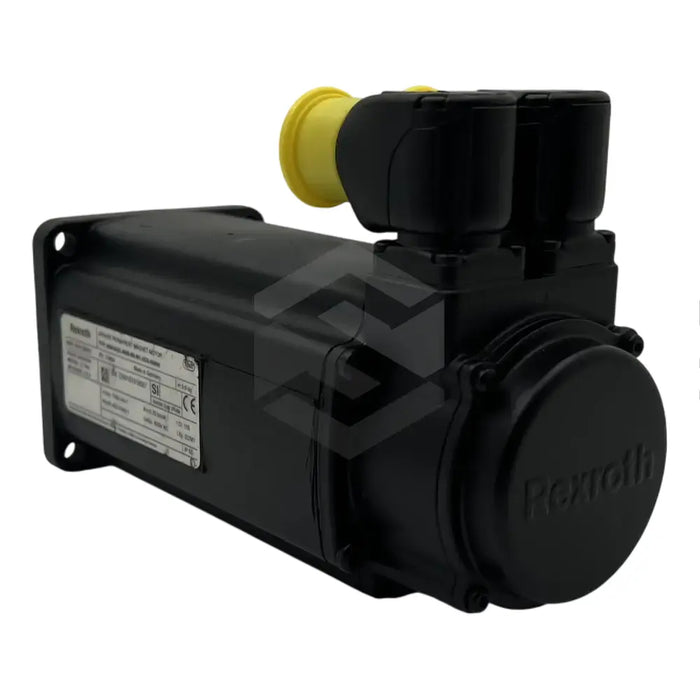

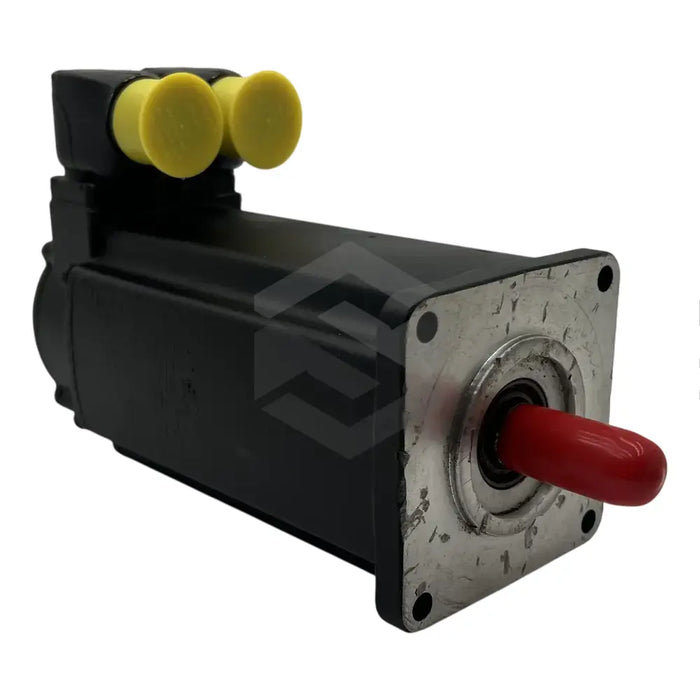

The product is the Bosch Rexroth Indramat MSK043C-0600-NN-M3-UG0-NNNN, an MSK series servo motor with a capacitive multi-turn encoder. Though the model lacks a holding brake, this feature can be specified during ordering. The encoder offers 4096 distinguishable revolutions, 16 signal periods and an accuracy of ±520 angular seconds. It produces an output signal of 1Vss and consumes a maximum current of 50 milliamps at an input of 7 to 12 Volts DC. The connector is 240-degree rotatable and the motor has a smooth main shaft with a sealing ring for bearing protection, which requires routine replacement. The motor is cooled naturally and operates optimally at 0-40 degrees Celsius and up to 1000 meters altitude. Strict storage and transport requirements include specific temperature, humidity, and light protection to prevent degradation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: Rexroth MSK
  • nullungs Brake: Not available
  • Encoder Type: Capacitive Multi-turn encoder
  • Encoder Accuracy: ±520 angular seconds
  • Encoder Output Signal: 1Vss
  • Max Encoder Speed: 12000 RPM
  • Encoder Current: 50 milliamps
  • Encoder Voltage: 7 to 12 Volts DC
  • Connectors Orientation: 240-degree rotatable
  • Shaft Type: Smooth with sealing ring
  • Shaft Seal: Needs periodic replacement
  • Cooling Method: Natural convection
  • Max Motor Speed: 7500 RPM
  • Operational Ambient Temperature: 0 to 40 degrees Celsius
  • Operational Altitude: Up to 1000 meters
  • Transport Conditions: -20 to 80 degrees Celsius temperature, 75% relative humidity (at 30 degrees Celsius)
  • Storage Conditions: -20 to 60 degrees Celsius temperature, 5 to 95% relative humidity
  • Storage: In its original packaging in a vibration-free environment, protected from light or direct insolation.
