MSK050C-0450-NN-M2-UG0-RNNN

Original price $10,115.63 - Original price $10,115.63
Original price
$10,115.63
$10,115.63 - $10,115.63
Current price $10,115.63
In Stock, Ships 3 - 5 Days
Request a quote

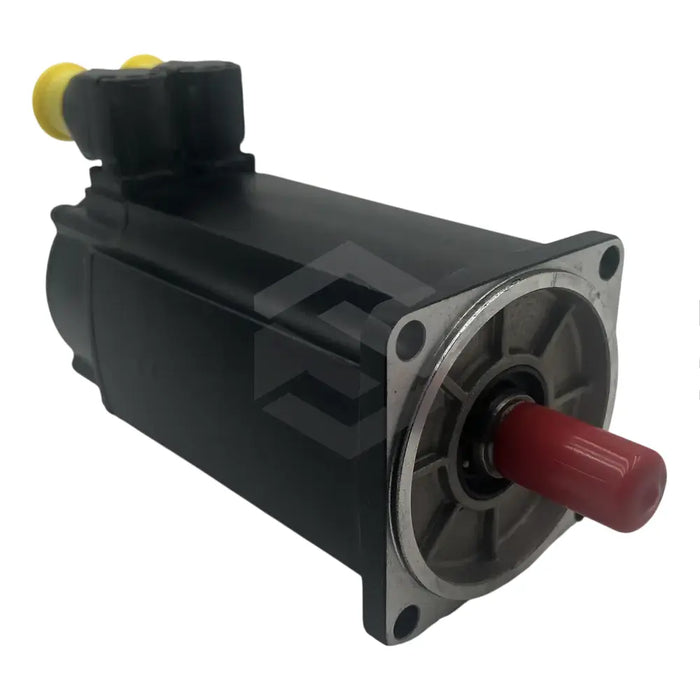

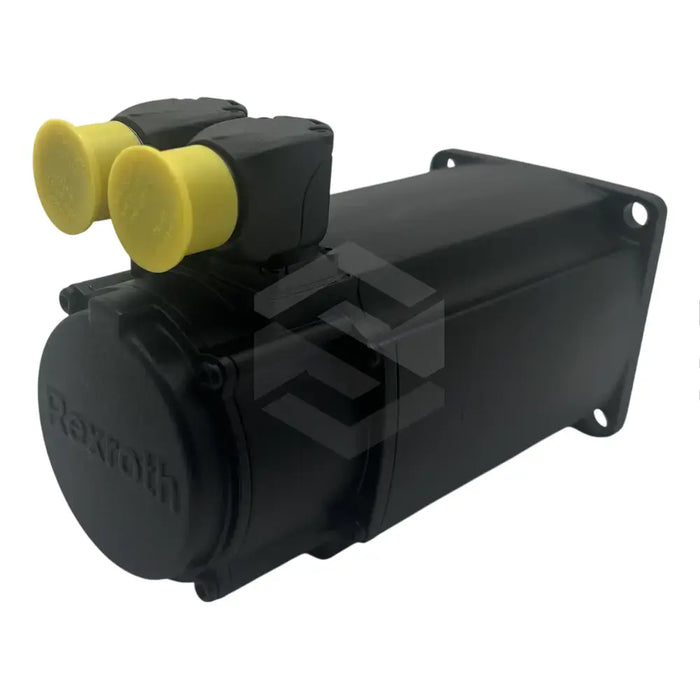

The MSK050C-0450-NN-M2-UG0-RNNN is a synchronous servomotor constructed by Bosch Rexroth Indramat, offering premium efficiency with a C length code. It is mandatory for this motor to be grounded via its in-built motor cable to prevent leakage current across conducting housing parts. Notably, this model lacks a holding brake and requires an acceptance test post-modification or prior to its initial startup. Additionally, this unit is neither designed for lengthy operation in explosive environments nor leak-proof due to inevitable gasket deterioration or temperature variations. The servomotor employs an EnDat 2.1 multiturn absolute encoder, ensuring the preservation of the absolute axis position even when switched off. It also features an adjustable flange socket, increased concentricity quality, and circular connectors for power and encoder links. Certified by UL and CSA, this device is prepared to be shipped globally.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: MSK050C-0450-NN-M2-UG0-RNNN
  • Motor Length Code: C
  • Grounding Requirement: Yes
  • Holding Brake: No
  • Operation In Explosive Atmosphere: No
  • Temperature Range: High temperature with Overload
  • UL Listed: Yes
  • CSA Certified: Yes
  • Construction: Insulated
  • Shaft Sealing Ring: Present
  • Encoder: EnDat 2.1 multiturn absolute encoder
  • Frame Size: B (EN 60034-7 specifications)
  • Concentricity Quality: Increased
  • Thermal Coupling: Changes with attached transmissions
  • Connector Type: Circular for encoder and power connections
  • Flange Socket: Adjustable
  • Cable Removal: By pulling the plug, not the cable
  • Worldwide Shipping: Available
