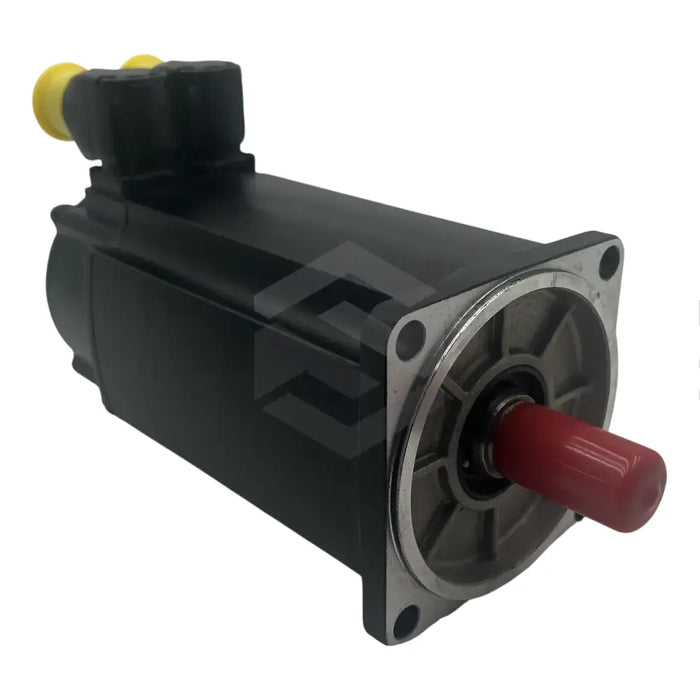

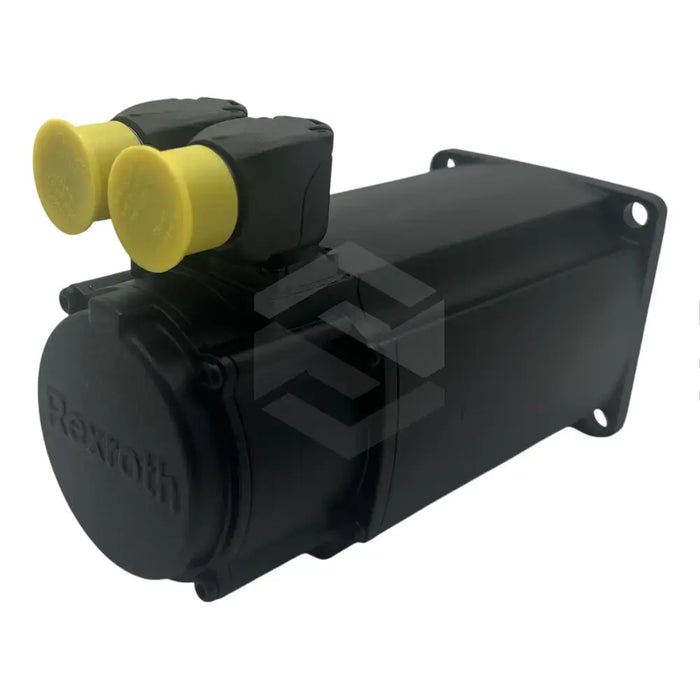

MSK050C-0450-NN-S2-UG1-RNNN

Request a quote
Produced by Bosch Rexroth Indramat, the MSK050C-0450-NN-S2-UG1-RNNN is a synchronous servo motor intended for wide-ranging applications. Reliable and versatile, this device aids in precise control of position, velocity, and acceleration -- from complex tasks in large-scale machinery to refined adjustments in cameras for quality imagery. Notably, it's incorporated in robotic components, printing gear, and metalwork machinery. Showcasing high torque density, it carries out tasks with exceptional precision. Importantly, optimal safety and performance are dependent on correct installation, storage, transport, and operation. The compact model, weighing 4.9kg, features an optical encoder with 2048 signal periods and a rotatable electrical connector. With a maximum speed and torque of 6000 min-1 and 9.0Nm respectively, it operates efficiently within a 0-40 °C temperature range. Lastly, it's safeguarded against dust and water at low pressures and utilizes a thermal sensor that complies with both EN 60034-1 (IP65) and EN 60034-5 (155) classes.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: MSK050C-0450-NN-S2-UG1-RNNN
  • Type: Synchronous Servo Motor
  • Applications: Robot Parts Movement, Metalwork Machines, Printing Machinery
  • Design Feature: High Torque Density, Increased Precision
  • Frame Size: 050
  • Frame Length Designation: C
  • Cooling Method: Naturally Cooled with Possible Fan Mounting
  • Encoder Type: Optical Encoder Singletum EnData2.1
  • Encoder Signal Periods: 2048
  • Electrical Connector Rotation: Up to 240°
  • Design Concentricity: According to DIN 42955
  • Weight: 4.9 Kilograms
  • Max Velocity: 6000 min-1
  • Max Torque: 9.0 Nm
  • Operating Ambient Temperature: 0 - 40°C
  • Protection Rating: Dust and Low Pressure Water Resistant (IP65)
  • Thermal Sensor Class: EN 60034-1 and EN 60034-5 (Class 155).
