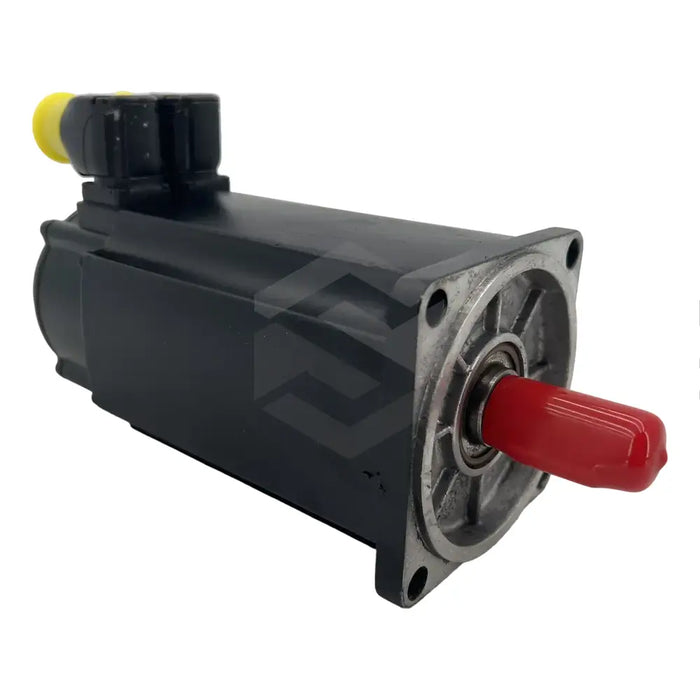

C image of MSK050C-0600-NN-M3-UP1-NNNN | Front Right

MSK050C-0600-NN-M3-UP1-NNNN

by Bosch Rexroth Indramat
$2,858.54 - $6,107.34
$2,858.54
$2,858.54 - $6,107.34
$2,858.54

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MSK050C-0600-NN-M3-UP1-NNNN is a synchronous motor that integrates an encoder and holding brake. With a maximum electrical speed of 6000 RPM, it has mechanical dimensions of 233mm length, 95mm diameter, and 9mm shaft diameter. The flange features four 9mm holes for mounting, and a 40mm external shaft length. It has a continuous standstill torque of 5Nm & 5.5Nm and a standstill current of 6.2 Amps & 6.8 N for 60K and 100K overtemperature conditions respectively. The multi-turn encoder has 16 signal periods, and the holding brake triggers on a 24 V DC signal. The motor comes with a standard design and includes rotatable power/feedback connectors. It cools naturally, operating optimally at 0-40 degrees Celsius, requiring derating above these temperatures or installation above 1000 meters. A keyway shaft, DIN 6885-1 compliant, and sealed ring are also included. Only trained personnel should perform installations.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Synchronous Motor

Model

MSK050C-0600-NN-M3-UP1-NNNN

Maximum Electrical Speed

6000 RPM

Weight

5.4 kg

Motor Length

233 mm

Motor Diameter

95 mm

Motor Shaft Diameter

9 mm

Mounting Holes

4

Mounting Hole Diameter

9 mm

Shaft Length Outside Motor Housing

40 mm

Continuous Torque at Standstill (60 K overtemp)

5 Nm

Continuous Current at Standstill (60 K overtemp)

6.2 Amps

Continuous Torque at Standstill (100 K overtemp)

5.5 Nm

Continuous Current at Standstill (100 K overtemp)

6.8 Nm

Encoder Type

Capacitive Multiturn

Encoder Signal Periods

16

Holding Brake Holding Torque

6 Nm

Holding Brake Release Voltage

24 Volts DC

Design

Standard

Power/Feedback Connectors Rotation

240 degrees

Shaft Keyway

Complies with DIN 6885-1

Cooling Method

Natural Convection

Operating Temp Range

0 to 40 degrees Celsius

Derating Temp

Above 40 degrees Celsius

Derating Altitude

Above 1000 meters

Installation Requirement

Qualified Personnel Only.
