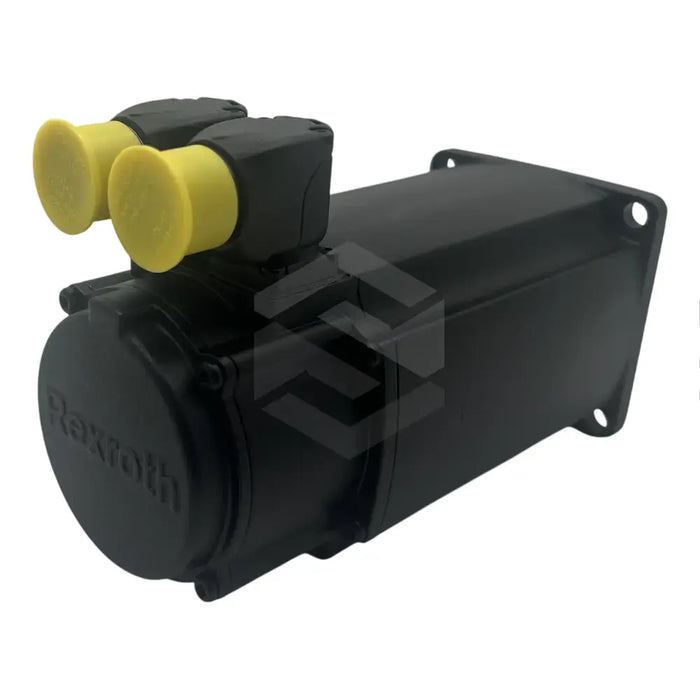

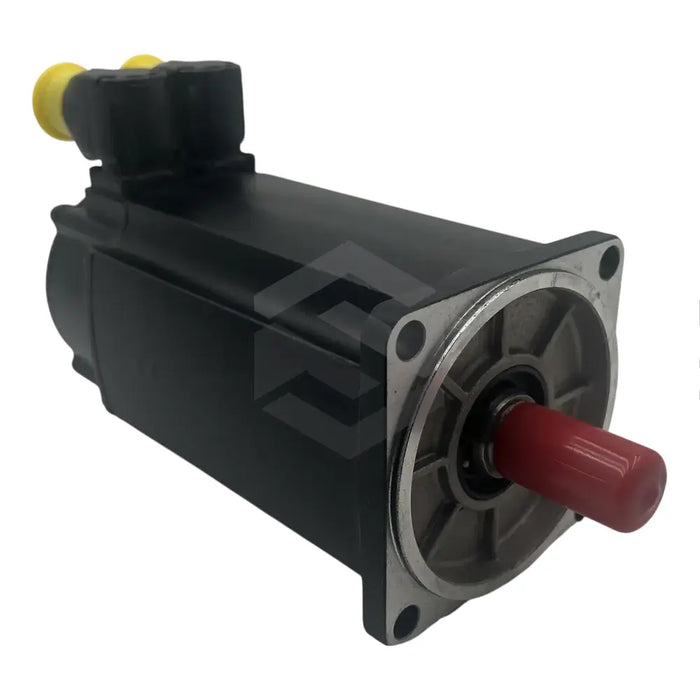

series image of MSK050C-0600-NN-S1-UG1-NSNN

MSK050C-0600-NN-S1-UG1-NSNN

by Bosch Rexroth Indramat
Request a quote
The MSK050C-0600-NN-S1-UG1-NSNN is a highly precise and efficient servo motor from Bosch Rexroth's MSK series, including a single-turn encoder and a holding brake. It works in unison with a drive controller for closed-loop control and offers optimal feedback. The encoder operates at a peak speed of 12,000 RPM, with an accuracy of ±120 angular seconds, consuming a maximum of 60 milliamps at a supply voltage of 7-12V DC. Notably, the holding brake prevents unnecessary shaft movement until activated by a 24V DC signal and exerts a 6Nm torque. Its power and feedback connectors are rotationally adjustable up to 240 degrees, while its motor shaft is plain and sealed. It provides a continuous torque of 5Nm peaked at 15Nm, with corresponding current ratings of 6.2A and 24.8A respectively. This motor cools via natural convection and operates most effectively at 0-40°C.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Motor
  • Model: MSK050C-0600-NN-S1-UG1-NSNN
  • Encoder Type: Single-Turn Encoder
  • Encoder Accuracy: ±120 Angular Seconds
  • Maximum Encoder Speed: 12,000 RPM
  • Encoder Supply Voltage: 7 to 12 Volts DC
  • Maximum Encoder Current Consumption: 60 milliamps
  • Brake Type: Electrical-release principle
  • Holding Brake Signal: 24 Volts DC
  • Holding Torque: 6 Nm
  • Connector Type: 240-degree Rotatable
  • Motor Shaft Type: Plain Fitted with a Seal
  • Motor Continuous Torque Rating: 5 Nm
  • Peak Torque Rating: 15 Nm
  • Motor Continuous Current Rating: 6.2 Amps
  • Peak Current Rating: 24.8 Amps
  • Motor Torque Constant at 20 degrees Celsius: 55 V/1000 RPM
  • Motor Winding Resistance at 20 degrees Celsius: 1.7 Ohms
  • Motor Winding Inductance: 2.6 millihenry
  • Number of Pole Pairs on Motor: 4
  • Thermal Time Constant: 14 Minutes
  • Maximum Motor Speed: 6000 RPM
  • Motor Sound Pressure Level: Less than 75 dB
  • Cooling System: Natural Convection
  • Optimal Operating Temperature: 0 to 40 degrees Celsius.
