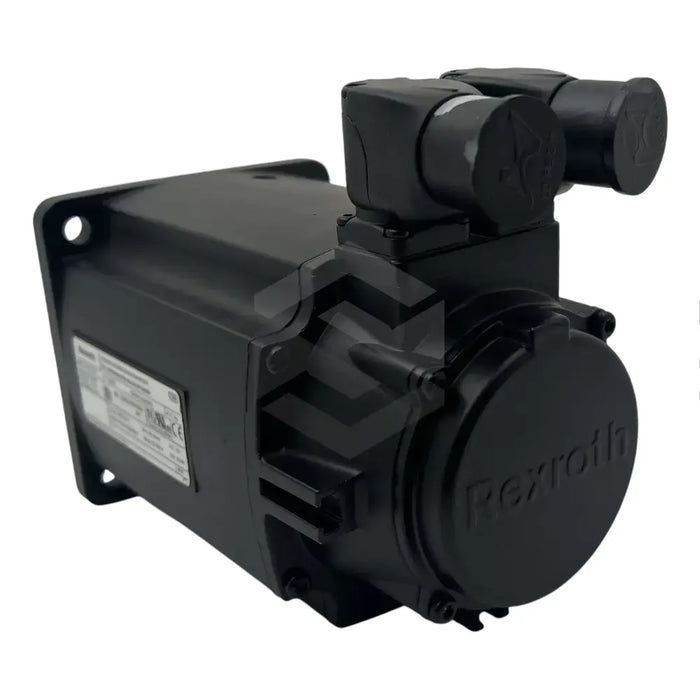

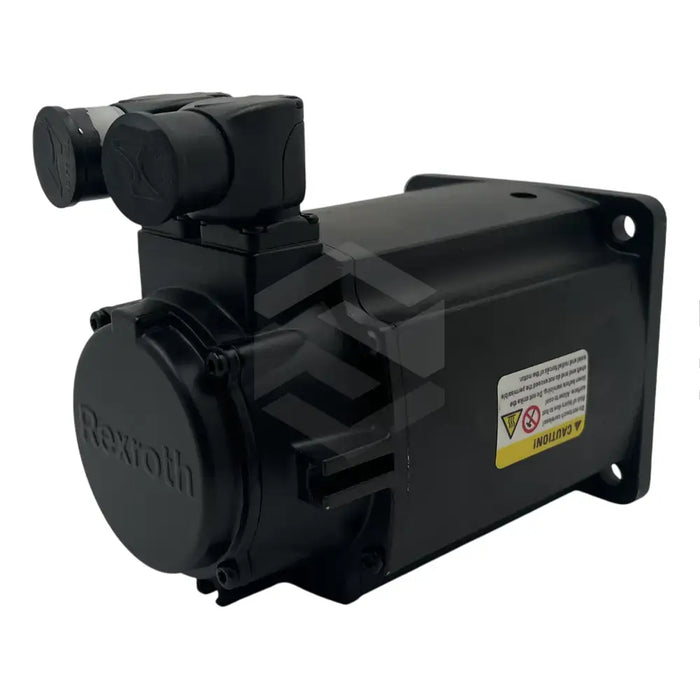

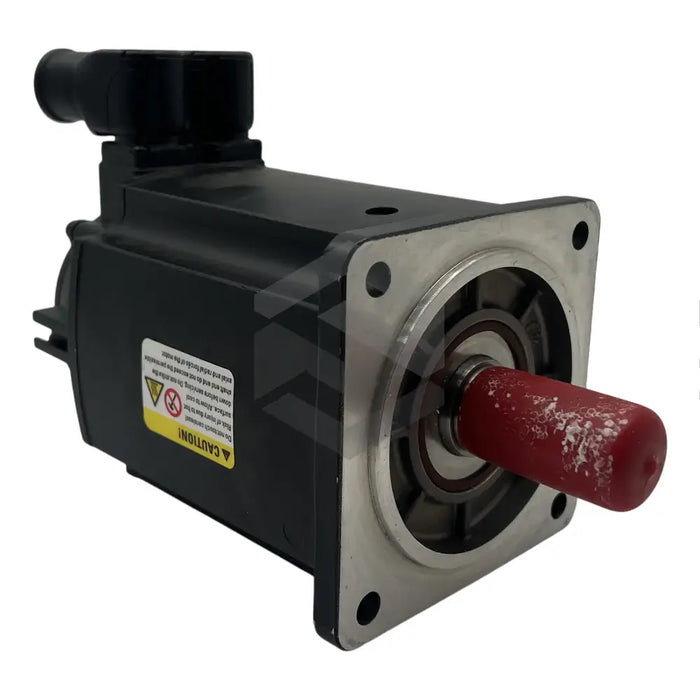

series image of MSK060B-0300-NN-M2-UP1-RNNN

MSK060B-0300-NN-M2-UP1-RNNN

by Bosch Rexroth Indramat
Request a quote
The MSK060B-0300-NN-M2-UP1-RNNN is a high-quality synchronous servo motor in the MSK series produced by Bosch Rexroth Indramat under the IndraDyn S range of motors. It is known for impressive precision attributed to an optical multiturn absolute encoder with a Hiperface interface, accurate to ±80 angular seconds and recording the absolute, indirect position within 4,096 motor revolutions. Achieving a peak speed of 4,800 RPM, it offers a high torque of 15.0 Nm and a moment of rotor inertia of 0.00048 kgm2. The motor, characterized by a compact frame for easy installment, contains 4 pole pairs and a 10Nm torque holding brake. It utilizes natural convection for cooling, transferring heat to the surrounding air or machine body. A built-in KTY84 temperature sensor in its stator aids in avoiding damage from overheating.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous Servo Motor
  • Model: MSK060B-0300-NN-M2-UP1-RNNN
  • Encoder Type: Optical Multiturn Absolute Encoder
  • Encoder System Accuracy: ±80 Angular Seconds
  • Encoder Revolutions: 4,096 Motor Revolutions
  • Top Speed: 4,800 Revolutions Per Minute
  • Thermal Time Constant: 16.0 Minutes
  • Maximum Torque: 15.0 Nm
  • Rotor Moment Of Inertia: 0.00048 kgm2
  • Configuration: Compact
  • Pole Pairs: 4
  • Holding Brake: Electrically Releasing, 10Nm Torque
  • Cooling Mechanism: Natural Convection
  • Temperature Sensor: KTY84 type built into the stator.
