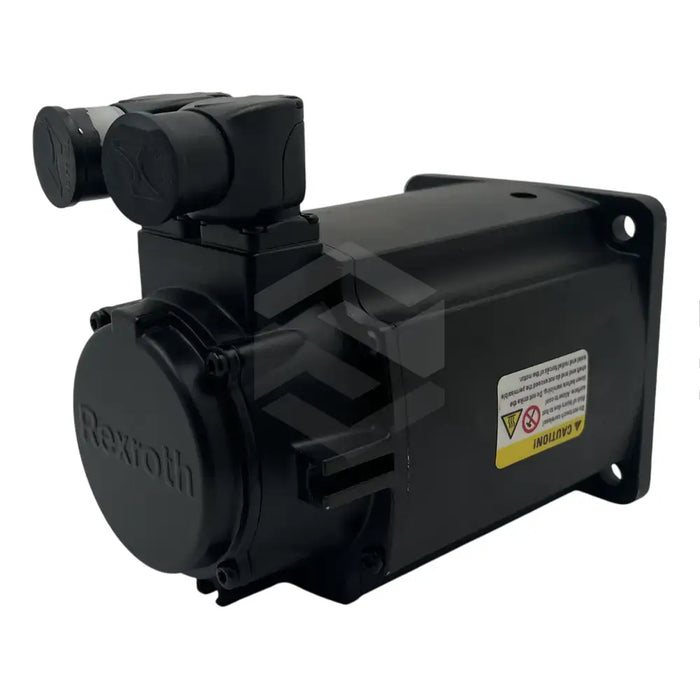

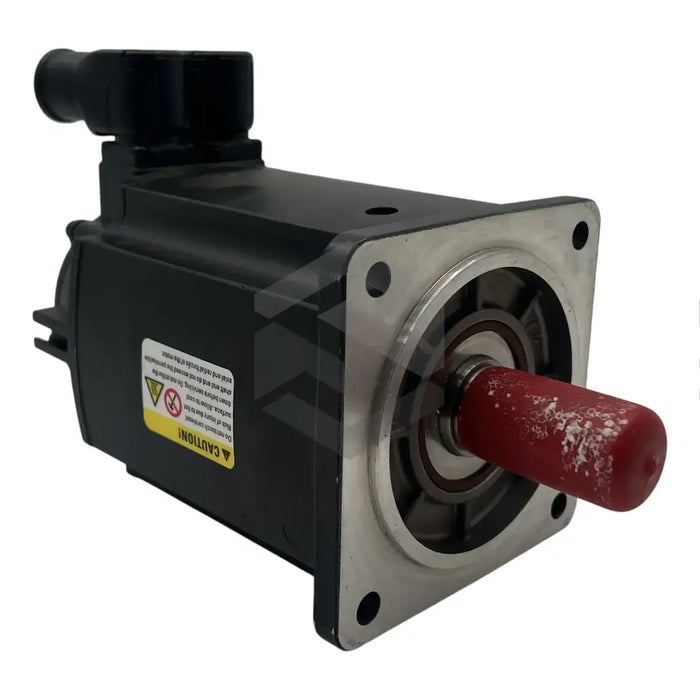

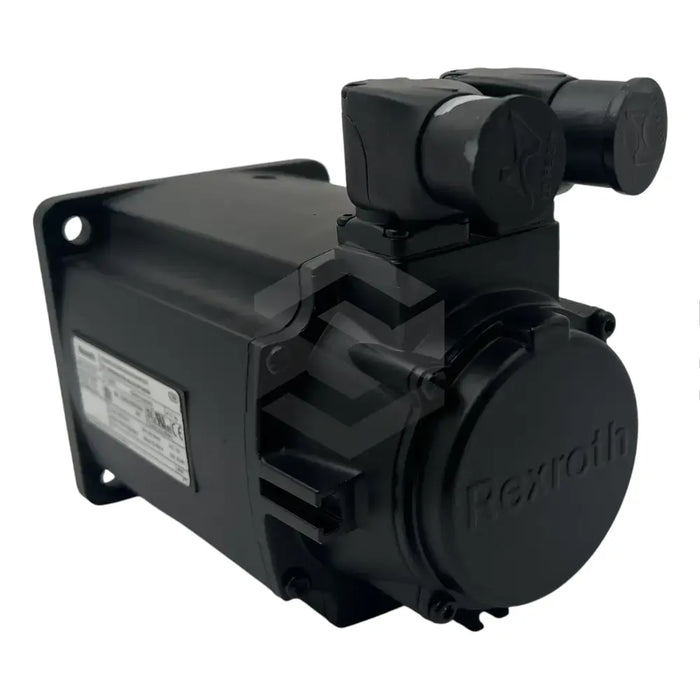

series image of MSK060B-0300-NN-S1-UP1-NNNN

MSK060B-0300-NN-S1-UP1-NNNN

by Bosch Rexroth Indramat
$3,148.61 - $3,148.61
$3,148.61
$3,148.61 - $3,148.61
$3,148.61
In Stock, Ships 3 - 5 Days
The MSK060B-0300-NN-S1-UP1-NNNN is a synchronous servo motor from Bosch Rexroth Indramat, a leading manufacturer of energy-efficient commercial automation products. Exhibiting a sound pressure level of under 75 dB, this model includes a DIN 6885-1 standard-compliant shaft with keyways and a sealing ring. Its specifications include a holding brake, electrical release, and maximum speed of 4900 rpm. The featured Singleturn Hiperface optical encoder with 128 increments allows precise performance. The 240-degree pivotable electrical plug ensures flexibility in installation. This model's 24Nm maximum torque, 19.2A max current, and 2.1nF discharge capacity contribute to its high efficiency, while the thermal time constant of 4 minutes facilitates safe operation. The ambient operating temperature lies between 0 and +40 degrees Celsius, and it must be linked to a programmed drive controller for optimal performance. With credentials from CE, EAC, RoHS, RoHS China, UL, and CSA, this 5.7kg servo motor adheres to IEC 60529 (IP65) and DIN EN 60034-1 (155) standards.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous Servo Motor
  • Model: MSK060B-0300-NN-S1-UP1-NNNN
  • Sound Pressure Level: <75 dB
  • Shaft Diameter: 24mm
  • Brake Type: Electric Release
  • Maximum Speed: 4900 revolutions per minute
  • Encoder type: Singleturn Hiperface Optical Encoder with 128 increments
  • Plug Rotation: 240 degrees
  • Maximum Operating Torque: 24Nm
  • Maximum Operating Current: 19.2A
  • Discharge Capacity: 2.1nF
  • Pole Pairs: 4
  • Thermal Time Constant: 4 minutes
  • Ambient Operating Temperature: 0 to +40 degrees Celsius
  • Certifications: CE, EAC, RoHS, RoHS China, UL, CSA
  • Weight: 5.7kg
  • Dimensions: 156.5mm (height), 116mm (depth), 231mm (length)
  • Protection Rating: IP65 according to IEC 60529, DIN EN 60034-1 rating of 155
  • Cooling Type: Liquid Cooling.
