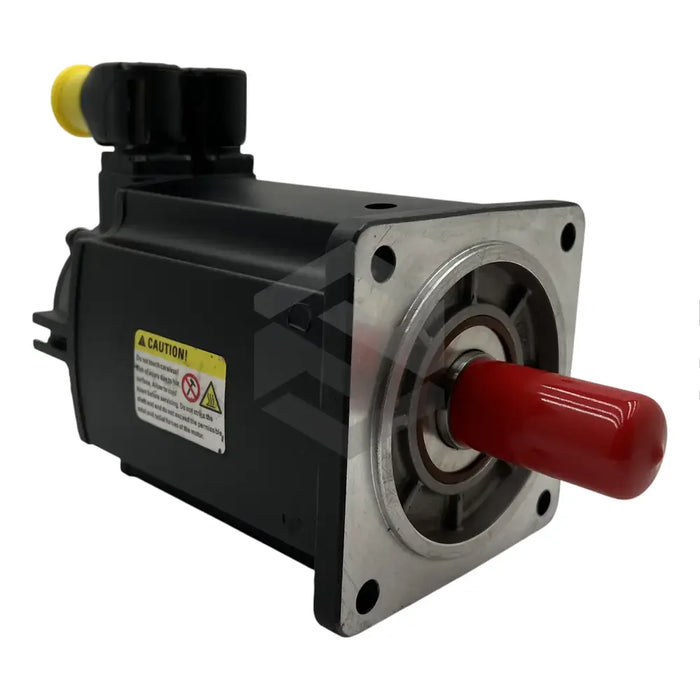

C image of MSK060B-0300-NN-S2-UG0-RNNN | Front Right

MSK060B-0300-NN-S2-UG0-RNNN

by Bosch Rexroth Indramat
$17,112.00 - $17,112.00
$17,112.00
$17,112.00 - $17,112.00
$17,112.00

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MSK060B-0300-NN-S2-UG0-RNNN is an advanced servo motor boasting an optical encoder, a singleturn EnDAT2.1 with an increment of 2048, and reduced shaft run-out and axial run-out according to DIN 42955 standards. This powerful model possesses a synchronous servo motor with a winding inductivity of 35.900 mH, producing a safe sound pressure level of <75 dB. The motor, equipped with a 24mm plain shaft, operates with a maximum torque of 24Nm, a current of 19.2A, and a speed of 4900 RPM. Weighing just 5.7 kg, the motor's compact design (156.5mm x 116mm x 231mm) is both thoroughly certified and self-cooled, using natural convection. Conforming to PELV (Protective Extra-Low Voltage) standards, the motor is safe for use by authorized personnel in both residential and commercial settings.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

MSK060B-0300-NN-S2-UG0-RNNN

Encoder Type

Optical encoder singleturn EnDAT2.1 with 2048 increments

Shaft Design

Applying DIN 42955, 24mm diameter standard plain shaft with sealing ring, without holding brakes

Motor Type

Synchronous Servo Motor

Inductivity

35.900 mH

Sound Pressure Level

<75 dB

Operating Torque

24Nm

Operating Current

19.2A

Operating Speed

4900 revolutions per minute

Rotor Inertia

0.00080 kgm2

Cooling Method

Self-cooled via natural convection

Discharge Capacity

2.1nF

Polar Pairs

4

Weight

5.7 kg

Dimensions

156.5mm (height), 116mm (depth), 231mm (length)

IP Rating

IEC 60529 IP65

Compliance Certifications

CE, EAC, RoHS, RoHS China, UL, CSA

System Type

Protective Extra-Low Voltage (PELV) system with connections and terminals up to 50 volts.
