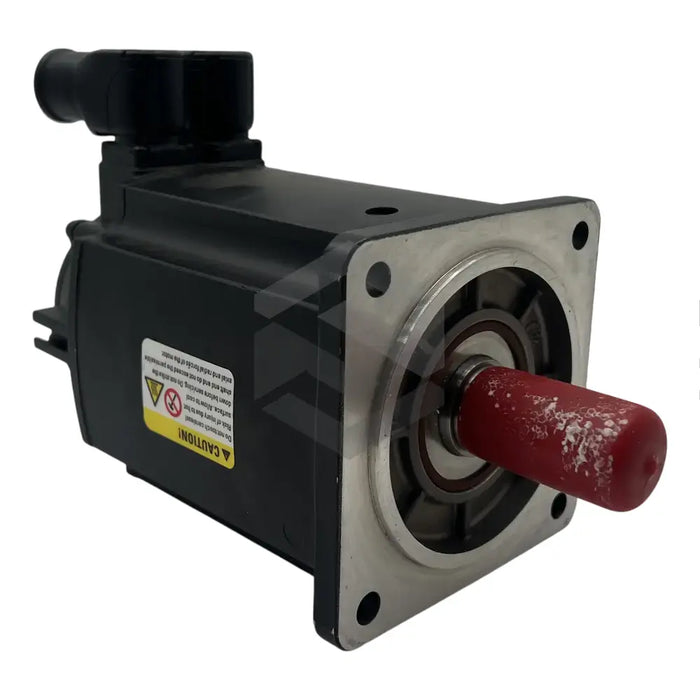

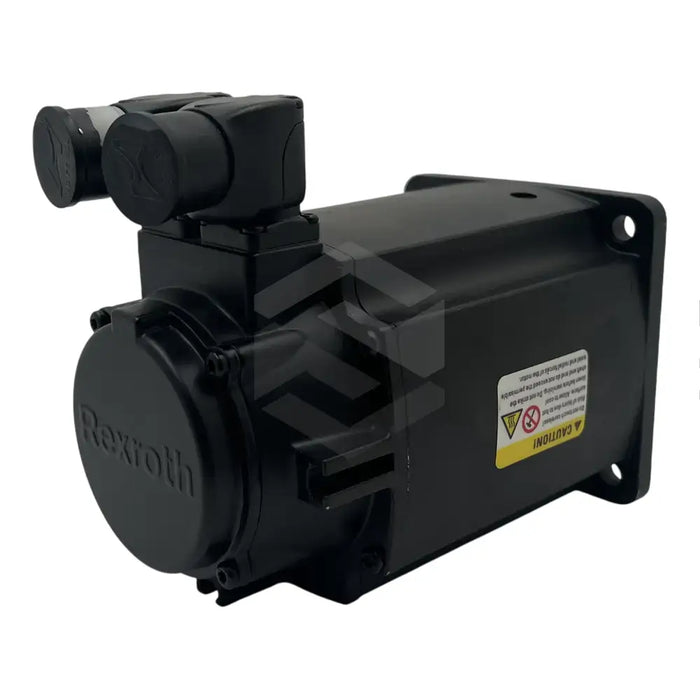

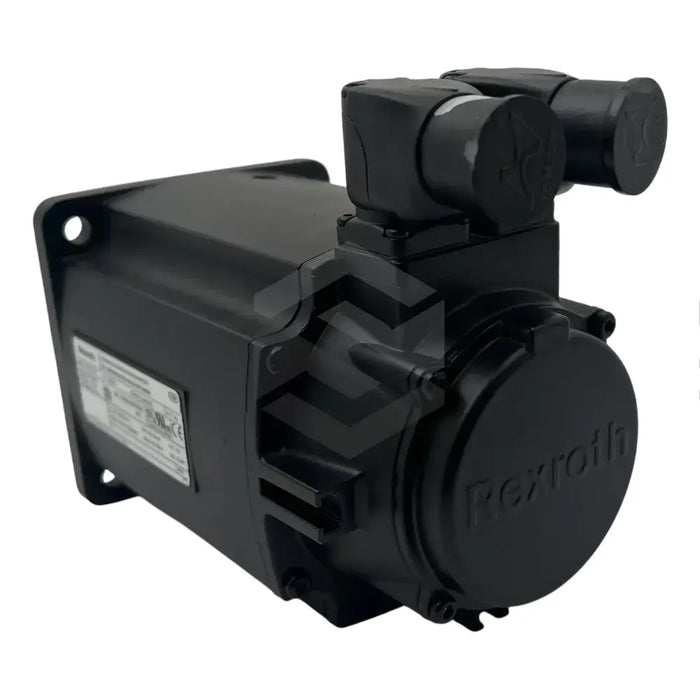

MSK060B-0600-NN-M2-UP1-RNNN

by Bosch Rexroth Indramat
Request a quote
The MSK060B-0600-NN-M2-UP1-RNNN is a synchronous servomotor designed and manufactured by Bosch Rexroth Indramat. It employs natural convection cooling, and includes a 10Nm holding brake that operates through electrical release. Technical specifics can be located on the unit's type plate, aiding the acquisition of replacement parts in case of failure. This motor adheres to an IP 65 level of protection as per EN 60034-5 and utilizes an EnDat 2.1 multiturn absolute encoder with 2,048 signal periods and 4,096 distinct revolutions, preserving the axis' absolute position after shutdown. Exclusive use of manufacturer-supplied power and encoder cables is mandated. The motor has an adaptable flange socket, thermal coupling variance with transmission attachments, and can endure a maximum operating temperature of 55°C. It may be installed both horizontally and vertically, bearing vibration axial and radial loads of up to 10m/s2. The black-shaded (RAL 9005) housing encloses a shaft built in accordance with DIN 6885-1, allowing the torque to be transferred lockingly. The motor is globally available for international shipping.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: MSK060B-0600-NN-M2-UP1-RNNN synchronous servomotor
  • Cooling Method: Natural Convection
  • Brake: 10Nm holding brake, electrically releasing principle
  • Type Plate: Yes
  • Degree of Protection: IP 65 according EN 60034-5 specifications
  • Encoder: EnDat 2.1 multiturn absolute encoder with 2,048 signal periods and 4,096 distinguishable revolutions
  • Required Cables: Readymade power and encoder cables
  • Connector Removal: By pulling the plug, not the cable
  • Connection State: De-energized
  • Flange Socket: Adjustable
  • Thermal Coupling: Variable with transmission attachment
  • Operating Temperature: Maximum 55°C
  • Temperature Change Rate: 0.5°C/min
  • Vibration Loads: Maximum allowed 10m/s2 axial and radial
  • Installation Options: Horizontal and vertical
  • Fluid Accumulation: None allowed at output shaft with upright installation
  • Housing Varnish: RAL 9005 black color
  • Shaft: Keyway shaft designed as per DIN 6885-1
  • Shaft Sealing Ring: Yes
  • Torque Transmission: Form-locking with constant direction
  • Shipping: International availability
